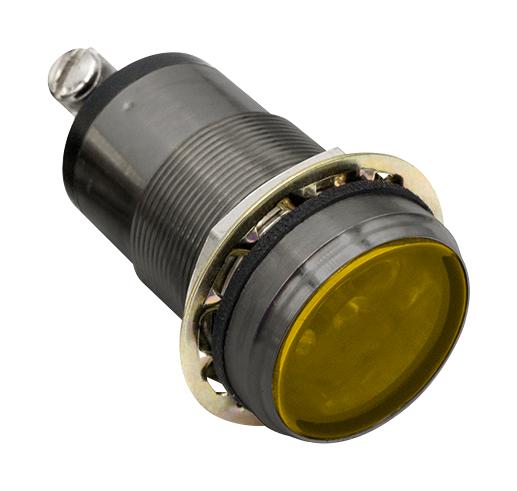

DIALIGHT 556170A214F LED Indicator Light
The 556 Series daylight viewable panel mount indicators are durable LED devices designed for outdoor and industrial applications. They feature constant intensity illumination across 18-48 V DC, with high brightness for visibility in rain, dust, and sunlight. Made with robust materials including UV-stabilized polycarbonate lenses and nickel-plated brass housing, these indicators are suitable for instrument panels, safety systems, environmental monitoring, and transportation signage. They meet IP66 and NEMA 4X standards, ensuring protection against harsh environmental conditions and are RoHS compliant, delivering reliable performance in demanding environments.
DIALIGHT 556170A214F LED Indicator Light Specifications:
- Voltage Options: 18-48 V DC
- Operating Temp: -30°C to +85°C
- Storage Temp: -40°C to +100°C
- Mounting Hole Size: 1.0 inch (25.4 mm)
- Max Panel Thickness: 0.600 inch (15.24 mm)
- Mounting Torque: 40 in-lbs
- Housing: Brass—White or Black Nickel Plated
- Lens Material: UV Stabilized Polycarbonate (UL 94V-0)
- Electrical Connection: 6-32 screw terminals
- Ingress Protection: IP66, NEMA 4X
- Certifications: RoHS compliant
- Color Options: Red, Green, Yellow, White
- Dimensions: 1.915 inches max (48.64mm)
- Product Series: 556 Series
Buy the Dialight 556170A214F – Reliable LED Indicator for Industrial Applications
Experience the superior visibility and rugged design of the Dialight 556 Series LED indicator light, perfect for harsh outdoor environments. With a daylight viewable, constant intensity illumination, it operates reliably on 18-48 V DC and is protected against rain, dust, and sun. Made with UV-stabilized polycarbonate lenses and nickel-plated brass housing, this device meets IP66 and NEMA 4X standards. Ideal for instrument panels, safety systems, environmental monitoring, and traffic signage, it ensures enduring performance and easy installation in demanding applications.
Buy Dialight 556170A214F now and experience unmatched durability and high visibility for outdoor and industrial indicator needs.
Frequently Asked Questions
Where can I buy DIALIGHT 556170A214F?
You can click on the BUY or RFQ button to purchase 556170A214F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 556170A214F?
You can download the 556170A214F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 556170A214F?
DIALIGHT
