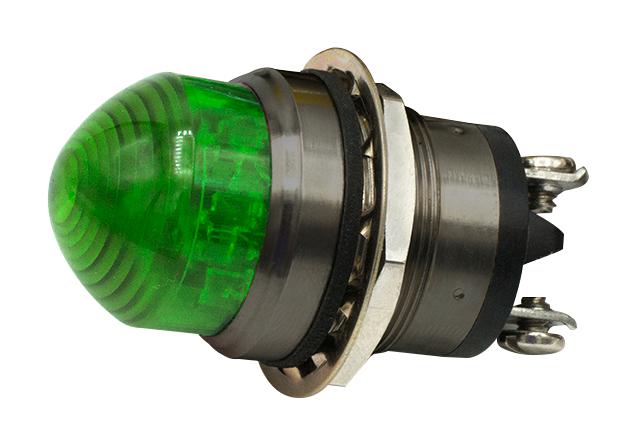

DIALIGHT 556360A204F LED Panel Indicator
The 556 Series LED Panel Mount Indicators are durable and designed for outdoor and harsh environments, with certifications including IP66 and NEMA 4X. Suitable for applications like instrument panels, safety, transportation, lane control, and display lighting, these indicators feature InGaN and AllnGaP technologies for maximum brightness. They operate on 18-48 V DC, withstand temperatures from -30°C to +85°C, and include brass housing with optional white or black nickel plating. The indicators utilize transparent polycarbonate lenses and brass terminals for reliable connections, making them ideal for demanding industrial, transportation, and safety uses.
DIALIGHT 556360A204F LED Panel Indicator Specifications:
- Voltage Options: 18-48VDC with internal resistor
- Operating Temp: -30°C to +85°C
- Storage Temp: -40°C to +100°C
- Mounting Hole Size: 1.0 inch (25.4mm)
- Max Panel Thickness: Flat: 0.600 inch (15.24mm), Dome: 0.187 inch (4.27mm)
- Housing Material: Brass, Nickel plated (white or black)
- Lens Material: Transparent Polycarbonate (UL 94-0)
- Electrical Connection: 6-32 screw terminals
- Mounting Torque: 40 in-lbs
- Certifications: IP66, NEMA 4X, RoHS Compliant
- Lock Washer: Phosphor Bronze, Nickel plated
- Nut: Brass, Nickel plated
Buy the Buy Dialight LED Indicator Part Number 556360A204F Online
Purchase the Dialight LED Panel Indicator online today and benefit from its robust design, IP66 and NEMA 4X ratings, and high-brightness illumination. Perfect for outdoor, safety, transportation, and display lighting applications, this indicator features operating voltage from 18 to 48 volts DC, temperature resistance from -30°C to +85°C, and durable brass housing with optional nickel plating. Easy to install with screw terminals, it ensures dependable performance in harsh environments, providing excellent visibility and long-lasting service for industrial and safety needs.
Buy Dialight 556360A204F now and experience reliable, high-brightness LED indicators suitable for demanding outdoor and industrial applications.
Frequently Asked Questions
Where can I buy DIALIGHT 556360A204F?
You can click on the BUY or RFQ button to purchase 556360A204F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 556360A204F?
You can download the 556360A204F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 556360A204F?
DIALIGHT
