DIALIGHT 5571503203F High-Intensity LED Indicator

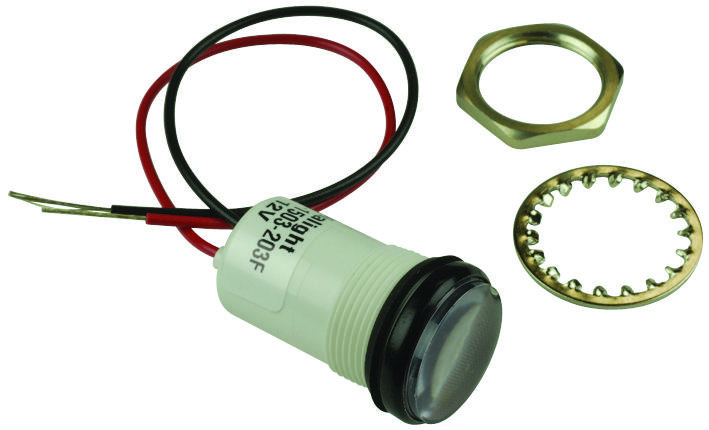

The 557-1503-203F is a high-intensity, panel-mount red LED indicator designed for 11/16-inch mounting holes. It features a watertight seal that meets MIL-L-3661B standards, making it suitable for outdoor applications exposed to rain, dust, and sunlight. The indicator combines InGaN and AlInGaP technologies to produce higher brightness. It has a white polycarbonate housing, a flat polycarbonate lens, and a UL94V-0 flammability rating. The device offers uniform illumination, daylight viewability, and a tamperproof, highly durable construction, suitable for various demanding applications including military, aerospace, sensing, safety, consumer electronics, automotive, and logistics.
DIALIGHT 5571503203F High-Intensity LED Indicator Specifications:
- Color: Red
- Mounting Hole Diameter: 11/16 inch
- Housing Material: White polycarbonate
- Lens Material: Polycarbonate, UL94V-0 rated
- Voltage Range: 5V, 12V, 24V DC
- Watertight Seal: Meets MIL-L-3661B standards
- Temperature Range: -25°C to +85°C operating, -30°C to +100°C storage
- Maximum Mounting Torque: 15 in/Ib
- Flammability Rating: UL 94V-0
- Technology: InGaN and AlInGaP for higher brightness
- Application Suitability: Outdoor, military, aerospace, safety, consumer electronics, automotive
Buy the Dialight Series 557 557 Series High Intensity LED Panel Mount Indicators: 5571503203F
Purchase the Dialight Series 557 high-intensity LED indicator online today for reliable, waterproof illumination in demanding outdoor and industrial environments. Featuring a 11/16-inch mounting hole, the indicator combines advanced InGaN and AlInGaP technologies for superior brightness. Its rugged white polycarbonate housing with a UL94V-0 rating ensures safety and durability. Perfect for military, aerospace, safety systems, and consumer electronics, this indicator provides consistent, daylight-viewable illumination, helping you enhance safety and efficiency in your applications with ease and confidence.
Order your Dialight Series 557 557 Series 5571503203F today and give your projects the durable, waterproof LED indicator they need.
