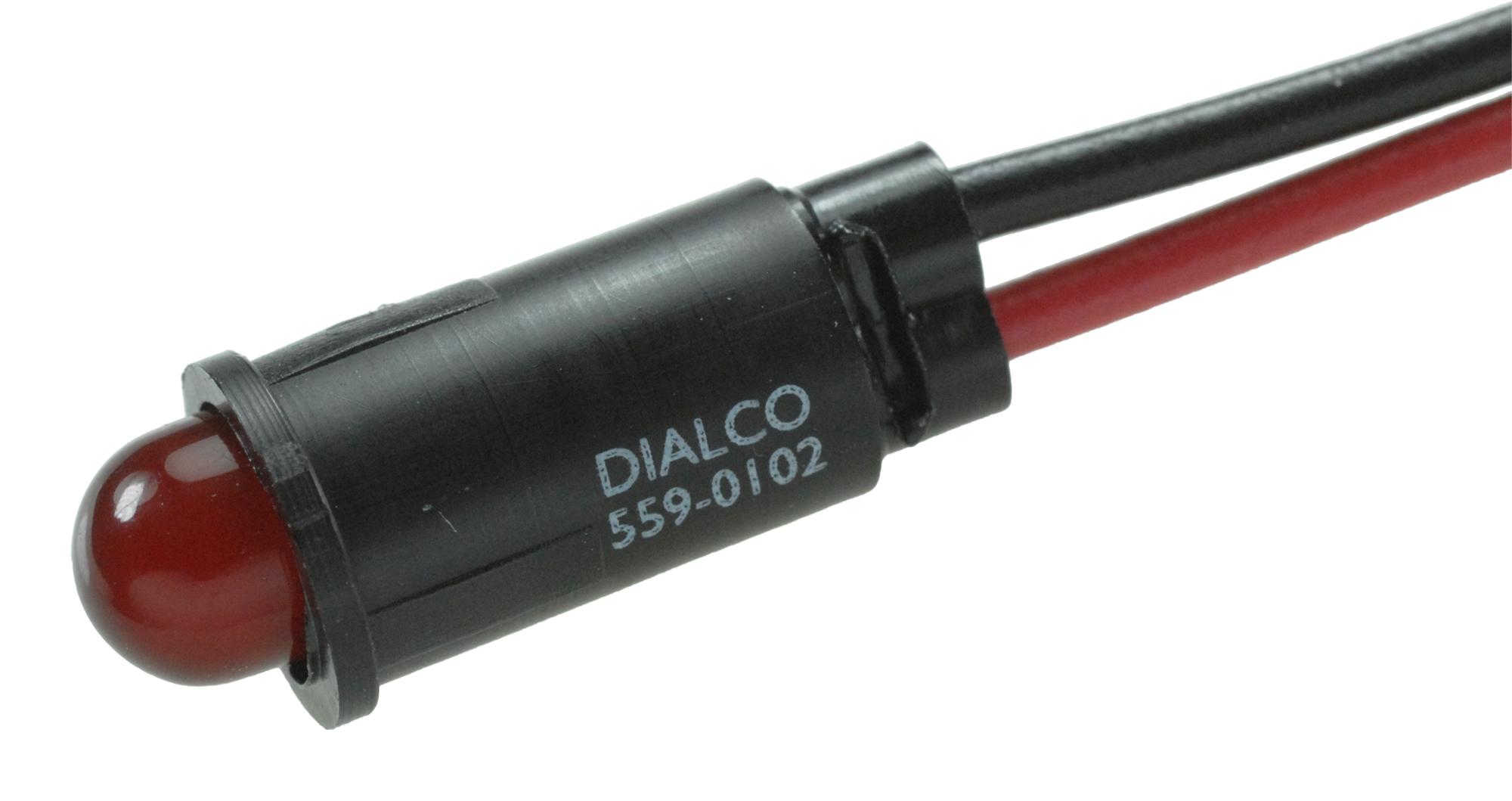

DIALIGHT 5590102007F LED Indicator
The 559 series LED indicator provides bright, reliable panel illumination with a quick snap-in mounting design. Suitable for various applications including electronic test equipment and data-center infrastructure, it features diffused LED technology and compatible with 5V operation via integral resistors. The LED housing is UL94V-0 flame-retardant black plastic, ensuring safe operation within temperature ranges from -55°C to +100°C. Available with straight wire leads of 14 inches, it supports wire wrapping and optional connectors. Designed for durability and long lifespan, it is a versatile component for indicator and signaling purposes.
DIALIGHT 5590102007F LED Indicator Specifications:
- Voltage Options: 5V (with resistor), 12V, 24V DC
- Mounting Hole Size: 0.249—0.252 inches (6.32–6.40 mm)
- Max Panel Thickness: Not specified
- Operating Temperature: -55°C to +100°C
- Storage Temperature: Not specified
- Electrical Connection: Straight leads, 14 inches long
- Housing: Black UL94V-0 flame-retardant plastic
- LED Wavelength: Red 635 nm
- Peak Forward Voltage: Approximately 2.2–2.3 V
- Current: 20 mA typical
- Certifications: RoHS compliant
- Design: Diffused LED for uniform illumination
- Installation: Snap-in mounting for quick assembly
Buy the Buy Dialight LED Part Number 5590102007 Online
Order the Dialight LED indicator online today for reliable panel lighting in industrial, electronic, and data-center applications. This LED features a snap-in design with diffused illumination and integral resistors supporting 5V operation. Its black UL94V-0 flame-retardant housing ensures safety and durability within temperatures from -55°C to +100°C. With straight 14-inch wire leads, it’s easy to install and suited for wire wrapping or connector adaptation. Perfect for signage, testing equipment, and signal indication, this LED delivers consistent brightness and long lifespan, making it an excellent choice for professional electronic projects.
Get Dialight LED Part Number 5590102007 today—built for high brightness and long-lasting durability in panel indicator applications.
Frequently Asked Questions
Where can I buy DIALIGHT 5590102007F?
You can click on the BUY or RFQ button to purchase 5590102007F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5590102007F?
You can download the 5590102007F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5590102007F?
DIALIGHT
