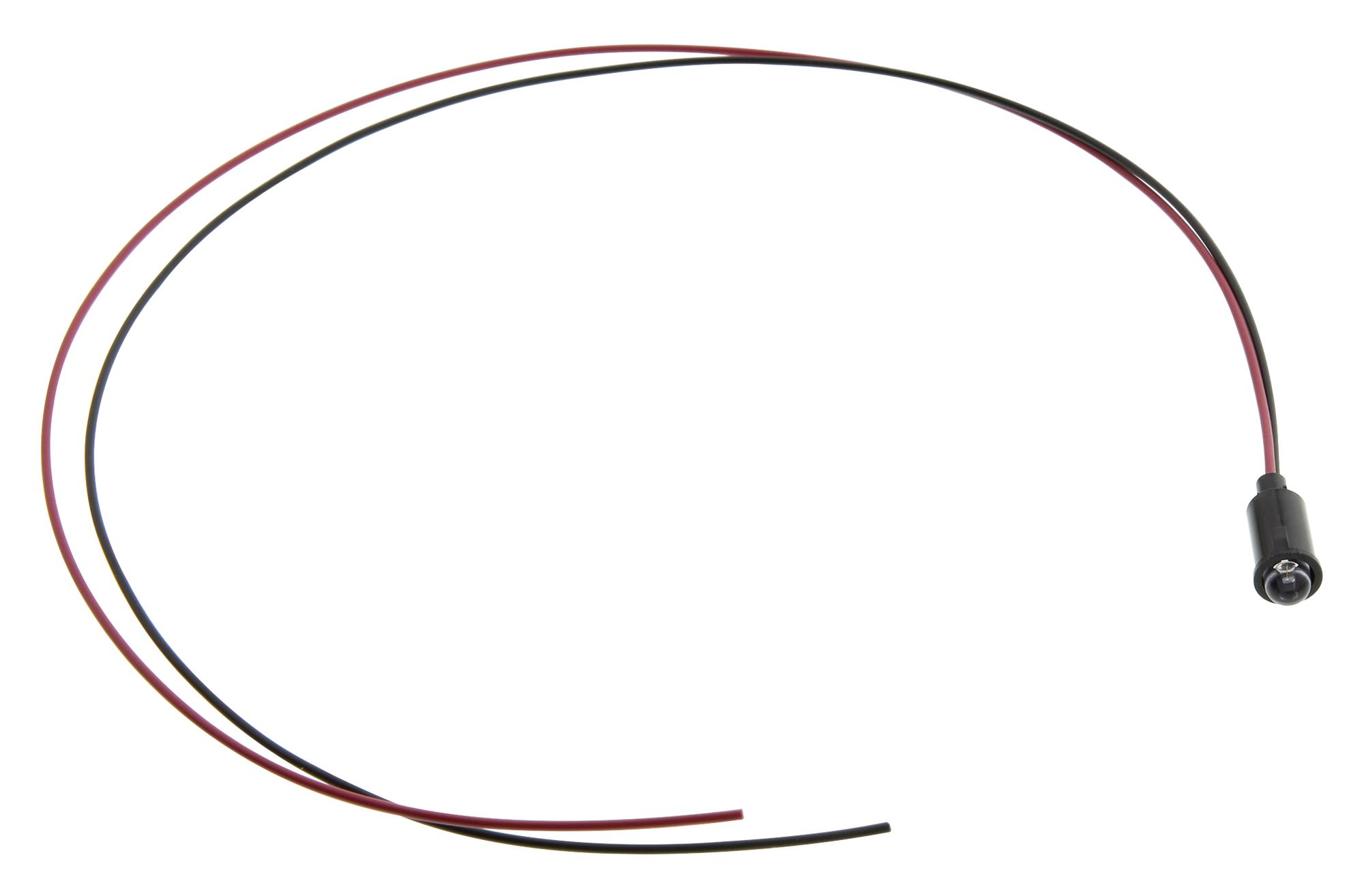

DIALIGHT 5596001027F Snap-in LED Panel Mount Indicator
Dialight’s 559 series LED panel mount indicator is engineered for high-brightness applications, utilizing AlInGaP and InGaN technology. These indicators are ideal for fan tray assemblies, datacenter infrastructure, electronic test & measurement instruments, and medical equipment. Featuring a snap-in mounting design, they require no additional hardware and offer long life, low power consumption, and resistance to shock and vibration. Available in both 2 and 3-leaded bicolor models, these indicators provide versatile color options and are RoHS compliant.
DIALIGHT 5596001027F Snap-in LED Panel Mount Indicator Specifications:
- Mounting Hole Size: 0.249 - 0.252” (6.32 - 6.40 mm)
- Max Panel Thickness: 0.031 - 0.062” (0.787 - 1.57 mm)
- Operating Voltage: 1.6 - 2.3 V DC typical (current limiting resistor required), 5V DC typical (resistor included), 12V DC typical (resistor included), 24V DC typical (resistor included)
- Operating Temp: -67°F to +212°F (-55°C to +100°C)
- Electrical Connection: Straight terminals for wire wrapping or 6 or 14 inch 24 AWG lead wire
- Housing Material: Black VALOX (UL94V-0)
- LED Color Options: Red, Green, Yellow, Orange, Blue, White
- Termination Options: Straight terminals, 24 AWG 6” wire leads, 24 AWG 14” wire leads
- Lead Options: Straight leads, 2 leads, 3 leads (common cathode)
