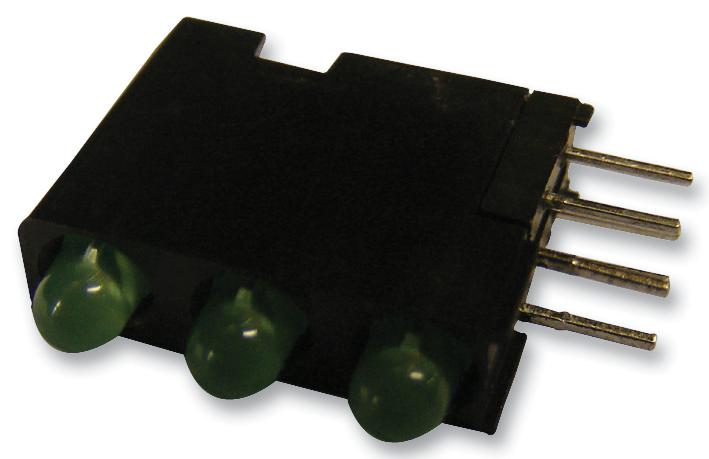

DIALIGHT 5640100222F Tri-Level Circuit Board Indicator
The DIALIGHT 564-0100-222F is a versatile circuit board indicator designed for creating horizontal LED arrays. Its high-contrast design, UL 94 V-0 rated black housing, and multiple CBI configurations make it suitable for various industrial applications. The indicator supports custom color combinations, allowing for tailored solutions. It is also designed for easy PCB cleaning with housing stand-offs and is safe for direct viewing according to IEC 825-1 and EN-60825-1.
DIALIGHT 5640100222F Tri-Level Circuit Board Indicator Specifications:
- LED Type: Tri-Level
- Housing: UL 94 V-0 rated, black
- Array Configuration: Horizontal LED arrays on 4.45mm (0.175") center-lines
- Oxygen Index: 29%
- Polymer Content: PBT, 0.078 g
- Solderability: MIL-STD-202F, method 208F
- LED Viewing Angle: 60°
- LED Safety: Safe for direct viewing per IEC 825-1, EN-60825-1
- Custom Combinations: Available upon request
- LED Protrusion Tolerance: ±0.04 mm [±0.016]
- CBI Housing Tolerance: ±0.02mm[±0.008]
