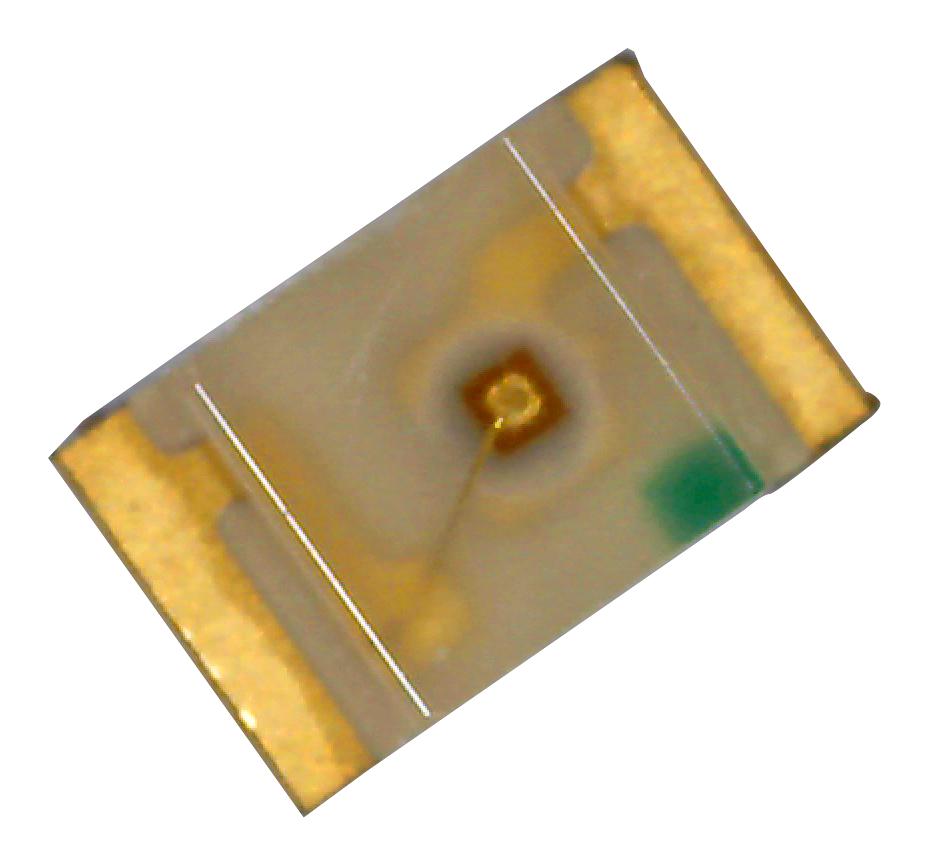

DIALIGHT 5975311407F Green Surface Mount LED
The 597-5311-407F is a compact 0805-sized green surface-mount LED with a non-diffused lens, constructed from Gallium Phosphide. This Micro LED® supports infrared reflow soldering in line with JEDEC standards, ensuring easy integration into manufacturing processes. Operating efficiently from -30°C to 85°C, it is suitable for LED lighting and industrial applications. compatible with Dialight's Optopipe® series, this LED offers high brightness, reliability, and versatility for various electronic and illumination projects, designed for demanding industrial and commercial environments.
DIALIGHT 5975311407F Green Surface Mount LED Specifications:
- Package Size: 0805 (2.0 mm x 1.25 mm)
- Material: Gallium Phosphide (GaP)
- Lens Type: Non-diffused
- Operating Temperature Range: -30°C to 85°C
- Maximum Power Dissipation: 81 mW
- Forward Current: 25 mA
- Peak Wavelength: 560 nm
- Luminous Intensity: Typical 6.4 mcd at 20 mA
- Viewing Angle: 140°
- Forward Voltage: Typical 2.1 V at 20 mA
- Peak Wavelength: 560 nm
- Soldering Profile: Peak 240°C for 5 seconds
- Compatible with Optopipe light pipes and infrared reflow processes
- Storage Temperature: -40°C to 100°C
- Max Reverse Voltage: 100 V
Buy the Buy Dialight Green Surface Mount LED Part Number 5975311407F Online
Purchase the Dialight 5975311407F green 0805 SMD LED online for reliable performance in industrial lighting, automotive, and electronic applications. This compact LED features Gallium Phosphide technology with a non-diffused lens, supporting infrared reflow soldering and JEDEC standards. Operating efficiently from -30°C to 85°C, it ensures high brightness, consistency, and durability. Perfect for demanding environments, it offers easy integration into various designs with its small form factor and efficient performance, making it a top choice for engineers and designers seeking quality LED components.
Buy Dialight 5975311407F green surface-mount LED now and experience high efficiency, reliability, and easy assembly for industrial lighting and electronic projects.
Frequently Asked Questions
Where can I buy DIALIGHT 5975311407F?
You can click on the BUY or RFQ button to purchase 5975311407F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5975311407F?
You can download the 5975311407F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5975311407F?
DIALIGHT
