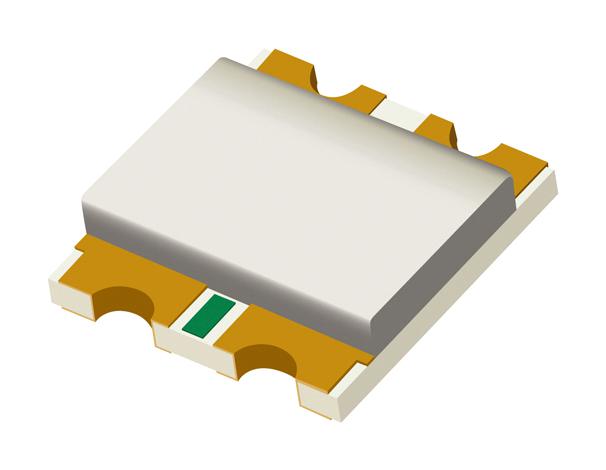

DIALIGHT 5988410207CF Bi-Color MicroLED
The 598 Series MicroLED SMD Bi-Color LED in a compact 0606 package measures 1.6mm by 1.6mm with a height of 0.7mm. It is RoHS compliant and compatible with automatic placement equipment, making it ideal for high-volume production. Packaged in 8mm tape on 7-inch reels with 4000 pieces or in strips of 20, these LEDs support various color options including red, green, orange, yellow, and yellow-green. They feature low forward voltage, high luminous efficiency, and are suitable for display signaling and indicator applications. Reflow and hand soldering profiles ensure reliability and durability.
DIALIGHT 5988410207CF Bi-Color MicroLED Specifications:
- Package Size: 1.6mm x 1.6mm x 0.7mm
- Package Type: 0606 SMD
- Compliance: RoHS compliant
- Packaging: Tape and reel (8mm tape, 7" reel, 4000 pcs) or strips of 20
- Supported Colors: Red, Green, Orange, Yellow, Yellow-Green, InGaN
- Viewing Angle: 120°
- Forward Voltage: 2.0V - 3.4V depending on color
- Forward Current: 20mA (max)
- Reverse Voltage: 5V (max)
- Operating Temperature Range: -40°C to +100°C
- Soldering: Reflow profile up to 260°C peak temperature, hand soldering max 300°C for 3 sec
- Certifications: RoHS compliant
- Storage and Handling: Packaged to meet EIA-481-1 standards, suitable for automatic and manual placement
Buy the Dialight Series 598 Bi-Color MicroLED: 5988410207CF
Purchase the Dialight Series 598 Bi-Color MicroLED now from our online store. These compact, RoHS-compliant LEDs in a 0606 package support multiple colors including red, green, and orange. Ideal for display and indicator applications, they are compatible with automatic placement equipment. Packaged efficiently in reels or strips, they feature low forward voltage, high luminosity, and durable build quality. Upgrade your electronic projects with these reliable, easy-to-solder MicroLEDs, ensuring excellent performance and long-lasting operation for industrial, signage, or consumer electronics.
Order your Dialight Series 598 Bi-Color MicroLED today and enhance your projects with reliable, high-efficiency signaling LEDs designed for automated manufacturing.
Frequently Asked Questions
Where can I buy DIALIGHT 5988410207CF?
You can click on the BUY or RFQ button to purchase 5988410207CF from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5988410207CF?
You can download the 5988410207CF datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5988410207CF?
DIALIGHT
