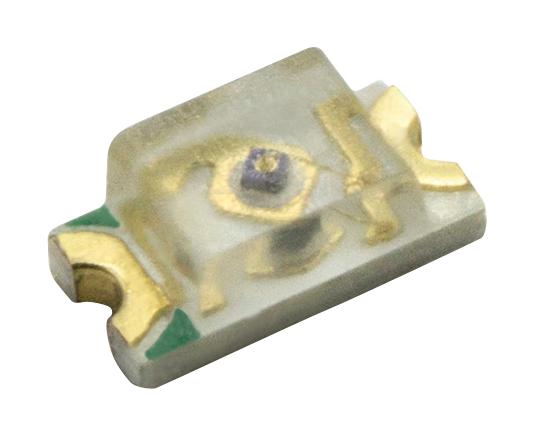

DIALIGHT 5990040007F MicroLED Light
The Dialight 599 Series MicroLED SMD LED in a 0603 package offers high brightness and efficient performance for various electronic applications. Measuring 1.6mm by 0.8mm by 0.7mm, this single-color surface-mount device is compatible with automatic placement equipment, making it ideal for mass production. It features RoHS compliance, reliable soldering with a reflow profile of up to 300°C, and excellent optical properties across multiple wavelengths including red, orange, yellow, and green. Packaged in 8mm tape on 7-inch reels, it ensures easy handling and precise assembly.
DIALIGHT 5990040007F MicroLED Light Specifications:
- Package Size: 0603 (1.6mm x 0.8mm x 0.7mm)
- Package Type: Surface Mount (SMD)
- Compatibility: Suitable for automatic placement equipment
- Packaging: 8mm tape, 7-inch reel, 4000 pcs per reel
- Soldering Profile: Max temperature 300°C, time 3 sec (reflow), 250°C max for hand soldering
- Electrical Characteristics: Forward Voltage varies by color, typical forward current 20-60mA
- Optical Wavelength: Red 625-640nm, Orange 620-630nm, Yellow 585-595nm, Green 517-530nm, Blue 465-475nm
- Certifications: RoHS compliant
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature: -40°C to +100°C
- Power Dissipation: 72mW
- Light Intensity: Varies with color and current, typical viewing angles specified
- ESD Rating: 2000V (InGaN)
Buy the Dialight Series 599 MicroLED SMD LED: 5990040007F
Purchase the Dialight 599 Series MicroLED in a 0603 package online today for reliable, bright, and energy-efficient lighting solutions. This high-quality surface-mount LED is designed for automation, with multiple color options, RoHS compliance, and easy reel packaging for efficient manufacturing. Whether for signage, display backlighting, or indicator lights, this proven component offers consistent performance. Order now to secure a top-grade LED that ensures excellent brightness, precise color emission, and robust operational lifespan for your electronics projects.
Get Dialight 5990040007F today—built for precision and long-lasting durability in electronic displays and illumination modules.
Frequently Asked Questions
Where can I buy DIALIGHT 5990040007F?
You can click on the BUY or RFQ button to purchase 5990040007F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5990040007F?
You can download the 5990040007F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5990040007F?
DIALIGHT
