DIALIGHT 5990120007F MicroLED SMD LED

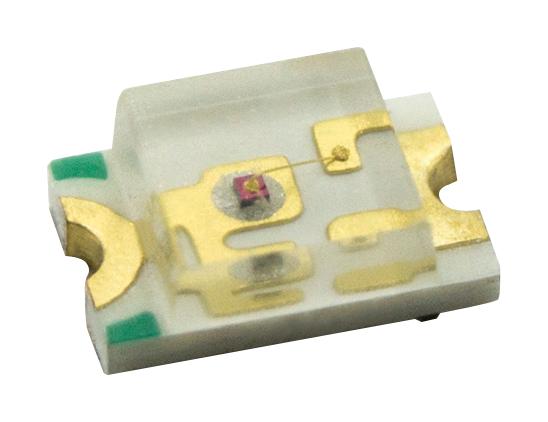

The Dialight 599 Series MicroLED SMD LED in the 0805 package is a single-color surface-mount LED suitable for automatic placement. With dimensions of 2.0mm x 1.25mm x 0.7mm, it features RoHS compliance, high luminous intensity, and low power dissipation. Available in various colors including red, orange, yellow, green, and blue, it provides reliable performance in electronic and lighting applications. The LED supports reflow soldering with a maximum temperature of 260°C and meets industry standards for indicator and display purposes, ensuring durability and brightness.
DIALIGHT 5990120007F MicroLED SMD LED Specifications:
- Dimensions: 2.0mm x 1.25mm x 0.7mm
- Package: 8mm tape, 7" reel (4000 pcs/reel)
- Color options: Red, Red-Orange, Orange, Yellow, Yellow-Green, Green, Blue
- Material: InGaN, AlInGaP
- Forward Voltage: 1.9V-3.3V at 20mA (varies by color)
- Luminous Intensity: 21-625 mcd (varies by color)
- Operating Temp: -40°C to +100°C
- Storage Temp: -40°C to +100°C
- Power Dissipation: 72 mW
- Maximum Forward Current: 30mA
- ESD Rating: 2000V (HBM)
- Reflow Profile: Peak temperature 260°C, time above 217°C 10 seconds
Buy the Dialight Series 599 MicroLED SMD LED: 5990120007F
Buy Dialight MicroLED SMD LED in the 0805 package today and experience exceptional brightness, durability, and efficiency. Designed for automatic placement, this high-quality LED offers reliable performance across a wide temperature range, suitable for indicator lights, displays, and electronic applications. Its RoHS compliance ensures environmentally friendly manufacturing. With various color options, easy reel packaging, and industry-standard specifications, this LED guarantees optimal light output and longevity. Order now to enhance your project with dependable, high-performance illumination solutions.
Get Dialight 5990120007F today—built for precision and long-lasting durability with high brightness and reliable performance in electronic displays.
