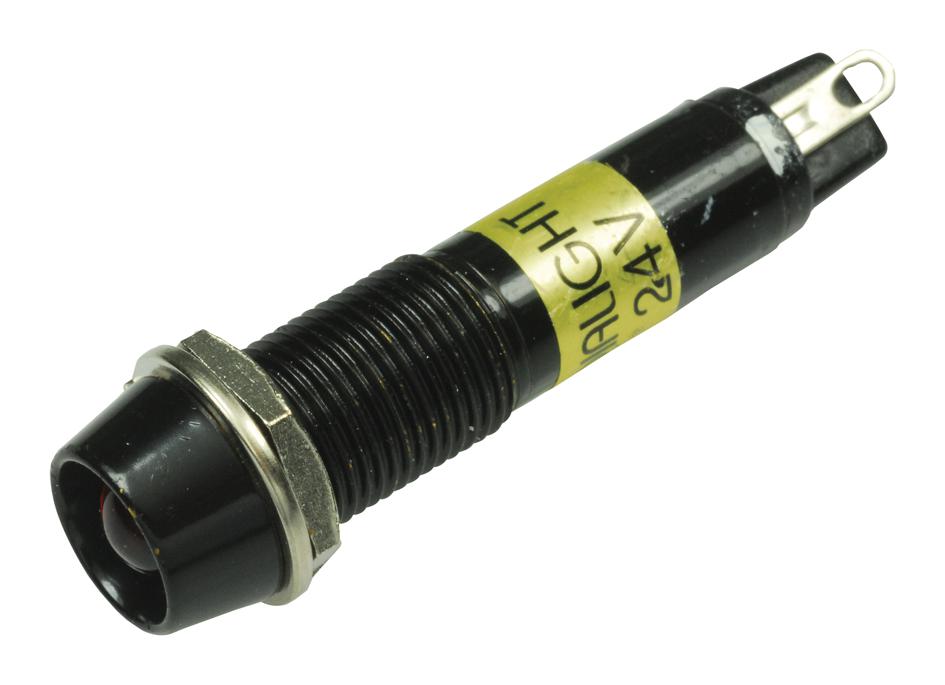

DIALIGHT 6092122140F LED Panel Indicator
The 609-2122-140F is a durable red LED panel-mount indicator designed for industrial environments, featuring a black painted brass enclosure. It consumes minimal power, lowering energy costs by up to 90% compared to traditional incandescent indicators. Its LED technology produces no heat, ensuring safe operation and long lifespan of up to 100,000 hours. The indicator connects via solder terminals and includes a watertight seal meeting NEMA-4X/IP66 standards, suitable for various signaling, maintenance, and remote status indication applications in challenging conditions. It operates within a temperature range of -30°C to 85°C, making it ideal for industrial use cases.
DIALIGHT 6092122140F LED Panel Indicator Specifications:
- Voltage requirements: 6, 12, and 24 VDC (no resistor required)
- Electrical connection through solder terminals
- Mounting hole size: 0.368 inches [9.35 mm]
- Maximum panel thickness: 0.376 inches [9.50 mm]
- Mounts with lock washer and nut, torque 0.362 lbs/ft or 5 Kg/cm
- Housing Material: Black painted brass
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -40°C to +85°C
- Watertight seal from front meets NEMA 4X/IP66
- LED Color: Red
- LED Intensity: Typical 15 mA current, 320 mcd brightness
- Housing options include chrome-plated brass for higher durability
- Dimensions: Typical mounting hole 0.368 inches [9.35 mm], housing length varies
- Long lifespan: Up to 100,000 hours
Buy the Buy Dialight LED Panel Mount Indicator Part Number 6092122140F Online
Purchase the Dialight LED Panel Indicator 609-2122-140F online today and experience top-quality signaling components for industrial use. With a durable black painted brass enclosure, low power consumption, and a long lifespan of up to 100,000 hours, this indicator is perfect for harsh environments. Its watertight seal meeting NEMA 4X/IP66 standards ensures reliable operation in wet or dusty conditions. Easy to install with solder connections, it operates effectively within a temperature range of -30°C to 85°C, making it ideal for remote indicators, maintenance, and safety signaling applications in demanding industrial settings.
Buy Dialight 609-2122-140F red LED indicator now and enhance your industrial signaling with reliable, long-lasting illumination and water resistance.
