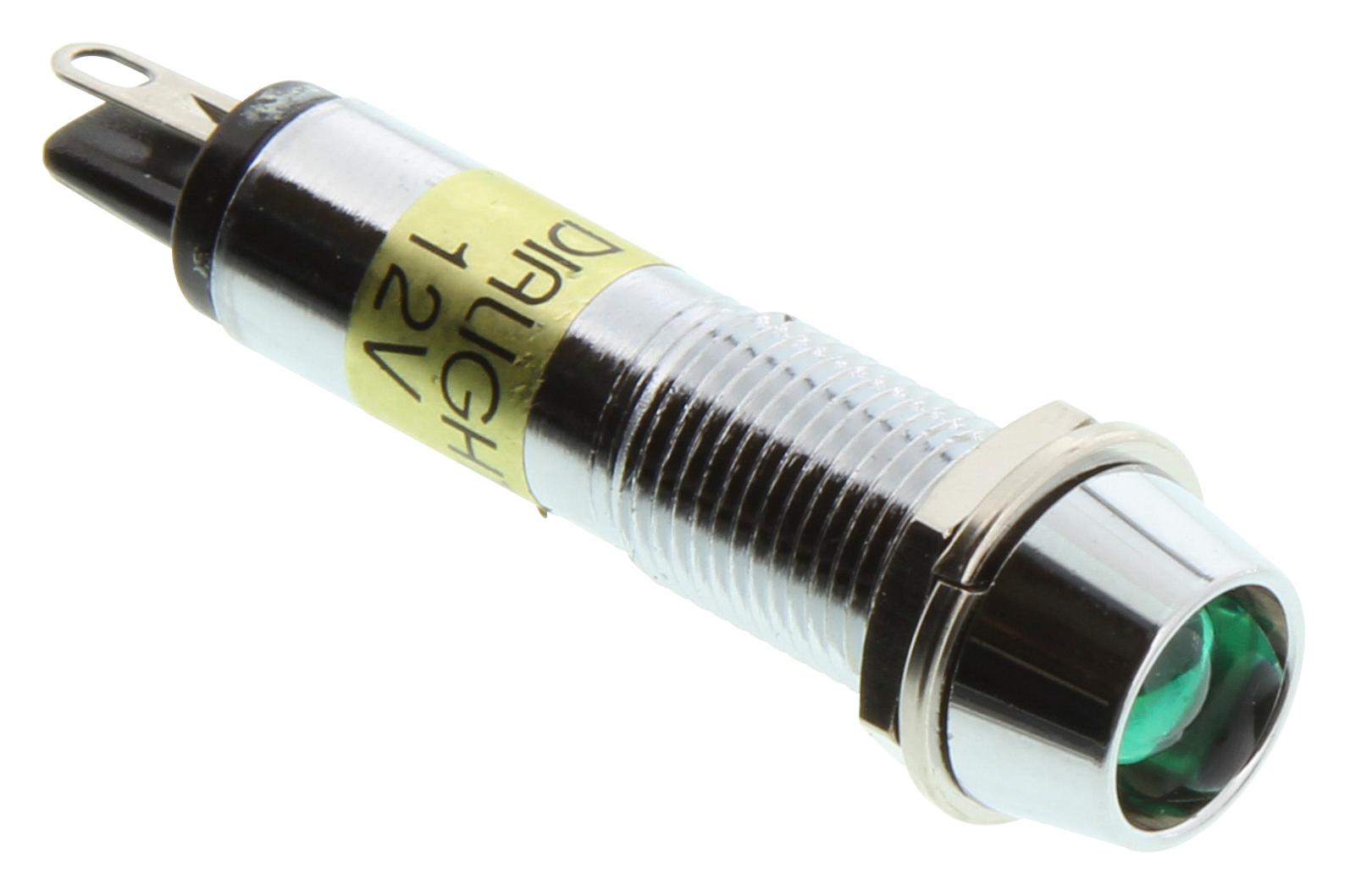

DIALIGHT 6092212130F LED Panel Indicator
The 609-2212-130F is a durable green LED panel indicator with a chrome-plated brass housing, designed for industrial environments. Featuring low power consumption and a lifespan of up to 100,000 hours, it ensures energy-efficient operation without generating heat. The indicator connects via solder terminals and provides watertight sealing per NEMA 4X and IP66 standards, making it ideal for harsh conditions. With a wide operating temperature range of -30°C to 85°C, it is suitable for various signaling, maintenance, and warning applications, combining reliability and easy installation.
DIALIGHT 6092212130F LED Panel Indicator Specifications:
- Voltage requirements: 6, 12, and 24 VDC (no resistor required)
- LED Color: Green
- Power Consumption: Low, 15 mA current
- Housing Material: Chrome plated brass (standard) or black painted brass
- Dimensions: Mounting hole size 0.368 inches [9.35 mm], maximum panel thickness 0.376 inches [9.50 mm]
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -40°C to +85°C
- Watertight Seal: Meets NEMA 4X and IP66 standards
- Connection: Solder terminals
- Housing Options: Chrome plated brass or black painted brass
- Mounting: With lock washer and nut, torque 0.362 lb/ft (5 kg/cm)
- Certifications: NEMA 4X, IP66, compliant with lead alloying regulations in brass
Buy the Dialight Series 609 LED Indicator: 609-2212-130F
Purchase the Dialight Series 609 LED Panel Indicator online now to benefit from energy-efficient, durable, and watertight performance. Its chrome-plated brass housing ensures corrosion resistance, while the long lifespan of up to 100,000 hours guarantees reliable operation. Suitable for harsh industrial environments, this indicator features easy solder terminal connection and meets NEMA 4X/IP66 standards for sealing. Ideal for signaling, maintenance, and warning systems, it offers versatility, durability, and efficiency for your industrial projects.
Order your Dialight Series 609 green LED indicator today and enhance your industrial signaling systems with dependable, long-lasting, and watertight LED solutions.
Frequently Asked Questions
Where can I buy DIALIGHT 6092212130F?
You can click on the BUY or RFQ button to purchase 6092212130F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6092212130F?
You can download the 6092212130F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6092212130F?
DIALIGHT
