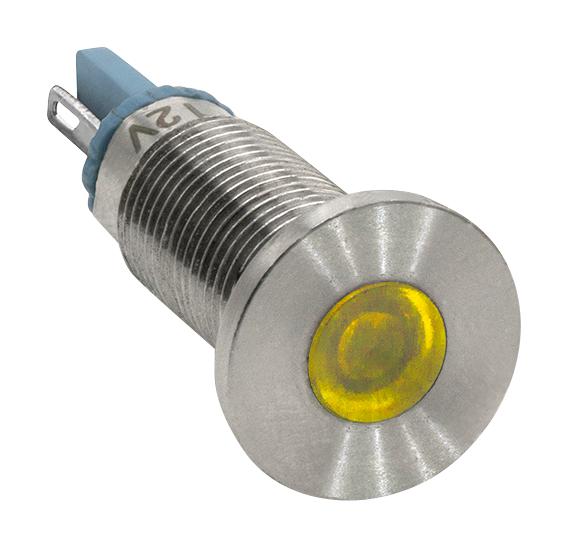

DIALIGHT 6201303304F Heavy Duty Panel Mount Indicator
The DIALIGHT 620 Series Heavy Duty LED Panel Mount Indicators combine elegant design with durable construction. These indicators are non-magnetic, corrosion-resistant, and designed to prevent the ingress of dirt, dust, and water. They are ideal for applications requiring reliable visual indication in demanding environments, such as main power indication, remote power indication, status indication, maintenance and warning indication, and instrumentation. The robust design ensures long-term performance and minimizes maintenance requirements.
DIALIGHT 6201303304F Heavy Duty Panel Mount Indicator Specifications:
- Operating Voltage: 3 V DC (external resistor required), 6, 12 & 24 V DC (internal resistor included)
- Operating Temp: -25 °C to +70 °C (-13 °F to 158 °F)
- Storage Temp: -25 °C to +70 °C (-13 °F to 158 °F)
- Electrical Connection: Solder terminals
- Housing: Stainless Steel
- Terminals: Stainless Steel
- Nut: Stainless Steel
- Mounting Hole Size: 0.323" (8.2 mm) Max
- Max Panel Thickness: 0.394" (10 mm)
- Mounting Torque: 7.01 lbs-ft (9.5 Nm)
- Color: Yellow
- Voltage: 24 V DC
- Current: 350 mA
- Typical Intensity: mcd
Buy the 620-1303-304F DIALIGHT Heavy Duty Panel Mount Indicator | myMectronic
Purchase the DIALIGHT 620-1303-304F securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6201303304F?
You can click on the BUY or RFQ button to purchase 6201303304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6201303304F?
You can download the 6201303304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6201303304F?
DIALIGHT
