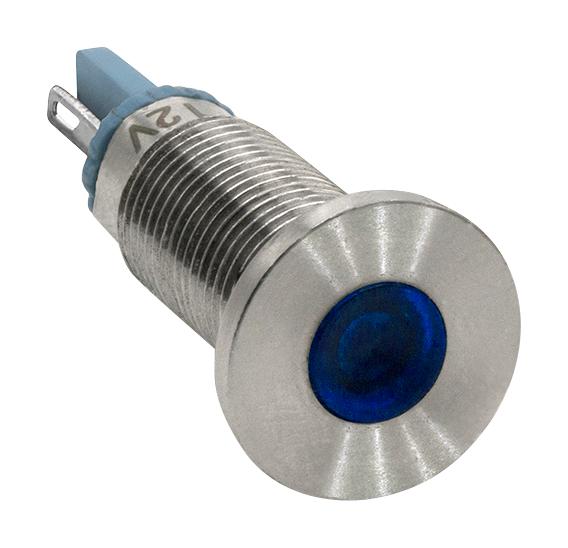

DIALIGHT 6201401304F Heavy Duty Panel Mount Indicator
The DIALIGHT 620 Series Heavy Duty LED Panel Mount Indicators combine elegant design with durable construction. These nonmagnetic, corrosion-resistant indicators are ideal for a wide range of applications including main power indication, remote power indication, status indication, maintenance and warning indication, and instrumentation. The robust stainless steel housing and IP66/IP67/IK10 ratings ensure reliable performance in demanding environments. Multiple voltage and color options are available to suit various application needs.
DIALIGHT 6201401304F Heavy Duty Panel Mount Indicator Specifications:
- Operating Voltage: 3 V DC (external resistor required), 6, 12 & 24 V DC (internal resistor included)
- Operating Temp: -25 °C to +70 °C (-13 °F to 158 °F)
- Storage Temp: -25 °C to +70 °C (-13 °F to 158 °F)
- Electrical Connection: Solder terminals
- Housing: Stainless Steel
- Terminals: Stainless Steel
- Nut: Stainless Steel
- Mounting Hole Size: 0.323" (8.2 mm) Max
- Max Panel Thickness: 0.394" (10 mm)
- Mounting Torque: 7.01 lbs-ft (9.5 Nm)
- Typical Intensity (mcd): Red: 200, Green: 250, Yellow: 350, Blue: 300
Buy the 620-1401-304F DIALIGHT Heavy Duty Panel Mount Indicator | myMectronic
Purchase the DIALIGHT 620-1401-304F securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6201401304F?
You can click on the BUY or RFQ button to purchase 6201401304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6201401304F?
You can download the 6201401304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6201401304F?
DIALIGHT
