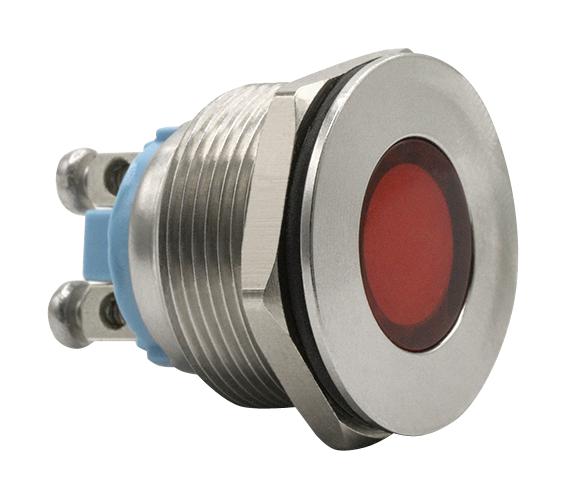

DIALIGHT 6221102304F Heavy Duty LED Indicator
The 622 Series Heavy Duty LED Panel Mount Indicators from Dialight feature a stainless steel housing and mounting components, making them corrosion-resistant and suitable for indoor and outdoor applications. Designed for high-end aesthetics, these indicators are IP66/IP67 rated and NEMA 4X compliant, providing protection against dirt, dust, and water. Available in various colors and voltages, they are ideal for main and remote power indication, status alerts, maintenance, and instrumentation. They include internal resistors, screw terminal connections, and mount on panels up to 10mm thick, with operating temperatures from -25°C to +70°C.
DIALIGHT 6221102304F Heavy Duty LED Indicator Specifications:
- Housing Material: Stainless Steel
- Mounting Hole Size: 0.866 inch (22mm)
- Max Panel Thickness: 0.394 inch (10mm)
- Mounting Torque: 7.01 lbs-ft (9.5 Nm)
- Operating Voltage: 3 VDC (external resistor required), 6 VDC, 12 VDC, 24 VDC (internal resistor included)
- Operating Temp: -25°C to +70°C (-13°F to 158°F)
- Storage Temp: -25°C to +70°C (-13°F to 158°F)
- Electrical Connection: Screw terminals
- Certifications & Ratings: IP66/IP67, NEMA 4X, IK10, RoHS compliant
Buy the Dialight 6221102304F – Reliable LED Panel Indicators for Industrial Applications
Purchase Dialight 6221102304F online today to secure high-quality, corrosion-resistant LED panel indicators. Featuring stainless steel housing, IP66/IP67 ratings, and multiple color options, these indicators are perfect for power and status indication in challenging environments. Easy to install with screw terminal connections and compatible with panel thicknesses up to 10mm, they operate across a wide temperature range. Select the right voltage and color to enhance your electrical systems and ensure reliable performance in demanding industrial settings.
Buy Dialight 6221102304F now and experience durable, corrosion-resistant LED indicators with versatile voltage options for industrial and outdoor use.
Frequently Asked Questions
Where can I buy DIALIGHT 6221102304F?
You can click on the BUY or RFQ button to purchase 6221102304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6221102304F?
You can download the 6221102304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6221102304F?
DIALIGHT
