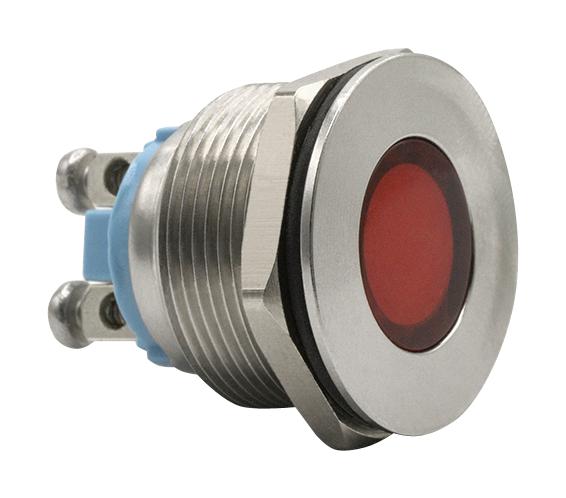

DIALIGHT 6221104304F Heavy Duty LED Indicator
The 622 Series Heavy Duty LED Panel Mount Indicators are designed for robust industrial applications, offering corrosion resistance and a high-end aesthetic. These non-magnetic indicators feature stainless steel housing, IP66/IP67 and NEMA 4X ratings, making them suitable for indoor and outdoor use. They operate at 3, 6, 12, and 24 VDC, with internal resistors included. Ideal for main power, remote indication, and instrumentation, they withstand temperatures from -25°C to +70°C, with screw terminal connections and secure mounting for reliable performance in demanding environments.
DIALIGHT 6221104304F Heavy Duty LED Indicator Specifications:
- Diameter: 0.866 inches (22 mm)
- Max Panel Thickness: 0.394 inches (10 mm)
- Operating Voltage: 3 VDC, 6 VDC, 12 VDC, 24 VDC (internal resistor included)
- Operating Temp: -25°C to +70°C
- Storage Temp: -25°C to +70°C
- Electrical Connection: Screw terminals
- Housing: Stainless Steel
- Nut Material: Stainless Steel
- Mounting Hole Size: 0.866 inches (22 mm)
- Max Panel Thickness: 0.394 inches (10 mm)
- Mounting Torque: 7.01 lbs-ft (9.5 Nm)
Buy the Dialight 6221104304F – Reliable Indicator for Industrial Applications
Experience the durability and high performance of Dialight Heavy Duty LED indicators available online. Crafted for industrial environments, these stainless steel indicators offer corrosion resistance, IP66/IP67 ratings, and NEMA 4X compliance. Suitable for power, status, and instrumentation indications, they operate across multiple voltages with internal resistors included. Easy to install with screw terminals and secure mounting, providing reliable long-term performance in outdoor or indoor applications. Order now to enhance your industrial systems with proven, high-quality indicators designed for demanding conditions.
Get Dialight 6221104304F today—designed for durability and precision in demanding industrial environments.
Frequently Asked Questions
Where can I buy DIALIGHT 6221104304F?
You can click on the BUY or RFQ button to purchase 6221104304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6221104304F?
You can download the 6221104304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6221104304F?
DIALIGHT
