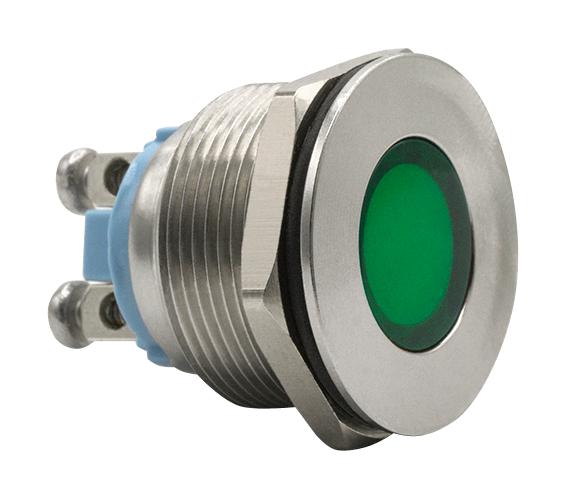

DIALIGHT 6221202304F Heavy Duty Indicator
The 622 Series Heavy Duty LED Panel Mount Indicators by Dialight are designed for robust performance in demanding environments. Featuring stainless steel housing, suitable for indoor and outdoor applications, they resist corrosion and prevent dirt, dust, and water ingress with IP66/IP67 and NEMA 4X ratings. These indicators operate at 3, 6, 12, or 24 VDC with internal resistors included, and are ideal for main power, remote status, maintenance, and instrumentation signals. Their sturdy construction and high-end aesthetic make them suitable for industrial, commercial, and hazardous locations requiring reliable visual indication.
DIALIGHT 6221202304F Heavy Duty Indicator Specifications:
- Housing: Stainless Steel
- Mounting Hole Size: 0.866" (22mm)
- Max Panel Thickness: 0.394" (10mm)
- Mounting Torque: 7.01 lbs-ft (9.5 Nm)
- Operating Voltage: 3, 6, 12, 24 VDC (internal resistor included)
- Operating Temp: -25°C to +70°C (-13°F to 158°F)
- Storage Temp: -25°C to +70°C (-13°F to 158°F)
- Electrical Connection: Screw terminals
- Certifications & Ratings: IP66/IP67, NEMA 4X, IK10, RoHS compliant
Buy the Dialight Series 622 Heavy Duty Panel Mount Indicators: 6221202304F
Purchase the Dialight 6221202304F Heavy Duty Indicator online today and enjoy a robust, corrosion-resistant signal solution designed for harsh outdoor and industrial environments. Featuring stainless steel construction, IP66/IP67 ratings, and NEMA 4X certification, this indicator includes internal resistors compatible with 3, 6, 12, or 24 VDC operations. Its sturdy mounting, screw terminal connection, and wide temperature range (-25°C to +70°C) make it ideal for main power, status indication, and instrumentation applications demanding long-lasting durability and reliable performance in demanding settings.
Get Dialight 6221202304F today—built for durability and reliable indication in tough environments.
