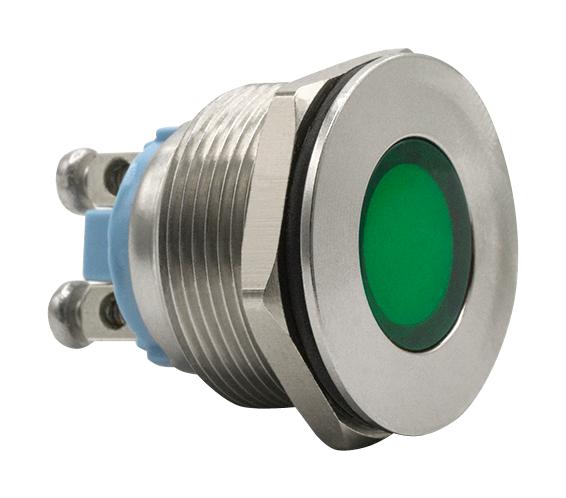

DIALIGHT 6221204304F Heavy Duty Panel Indicator
The 622 Series Heavy Duty LED Panel Mount Indicators by Dialight feature stainless steel housing and screw terminals, ensuring durability and corrosion resistance for indoor and outdoor environments. These indicators are designed for versatility, functioning with operating voltages of 3, 6, 12, and 24 VDC, with internal resistors included. They are rated IP66/IP67 and NEMA 4X, making them ideal for applications such as main power indication, remote power status, instrumentation, and maintenance alerts. The indicators are mounted through a 22 mm hole, suitable for panel thickness up to 10 mm, and operate within -25°C to +70°C temperature range.
DIALIGHT 6221204304F Heavy Duty Panel Indicator Specifications:
- Housing Material: Stainless Steel
- Mounting Hole Size: 0.866 inches (22 mm)
- Max Panel Thickness: 0.394 inches (10 mm)
- Operating Voltage: 3 VDC, 6 VDC, 12 VDC, 24 VDC
- Internal Resistor: Included
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -25°C to +70°C
- Electrical Connection: Screw terminals
- Certifications & Ratings: IP66/IP67, NEMA 4X, IK10, RoHS compliant
- Mounting Torque: 7.01 lbs-ft (9.5 Nm)
Buy the Dialight Series 622 LED Panel Indicator: 6221204304F
Discover the durable Dialight Series 622 Heavy Duty LED Panel Indicators, perfect for industrial applications. Crafted with stainless steel housing, these indicators are IP66/IP67 rated, ensuring protection against dust and water ingress. They operate on various DC voltages including 3, 6, 12, and 24 VDC, with internal resistors for simple wiring. Designed to withstand harsh environments, featuring NEMA 4X and IK10 ratings, they are suitable for main power, remote indication, and instrumentation. Easy to install with screw terminals, ideal for panel thickness up to 10mm, temperature range -25°C to +70°C, ensuring dependable performance in demanding settings.
Order your Dialight Series 622 LED Panel Indicator today and enhance your industrial control systems with reliable, corrosion-resistant lighting solutions.
Frequently Asked Questions
Where can I buy DIALIGHT 6221204304F?
You can click on the BUY or RFQ button to purchase 6221204304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6221204304F?
You can download the 6221204304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6221204304F?
DIALIGHT
