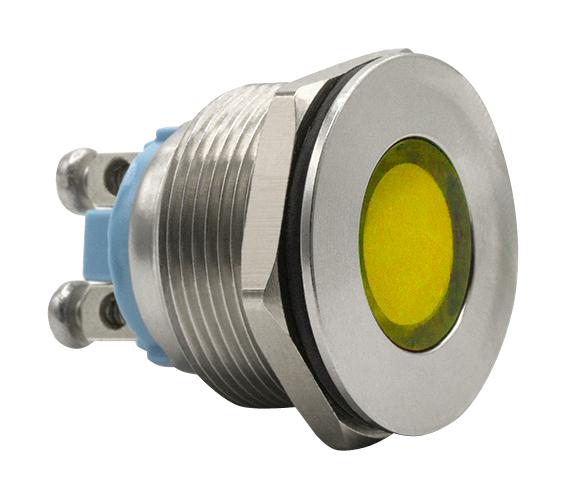

DIALIGHT 6221302304F Heavy Duty LED Indicator
The 622 Series Heavy Duty LED Panel Mount Indicators from Dialight are robust, corrosion-resistant, and designed for indoor and outdoor applications. These indicators feature a stainless steel housing, IP66/IP67 and NEMA 4X ratings, making them suitable for harsh environments. They provide high visibility for main power, remote power, status, and instrumentation indications. Operating within -25°C to +70°C, they include an internal resistor for 6, 12, and 24 VDC, and are secured with screw terminals, ensuring durability and reliable performance in demanding industrial settings.
DIALIGHT 6221302304F Heavy Duty LED Indicator Specifications:
- Mounting Hole Size: 0.866 inches (22 mm)
- Max Panel Thickness: 0.394 inches (10 mm)
- Operating Voltage: 3 VDC (external resistor needed), 6, 12 & 24 VDC (internal resistor included)
- Operating Temp: -25°C to +70°C
- Storage Temp: -25°C to +70°C
- Electrical Connection: Screw terminals
- Housing and Nut: Stainless Steel
- Certifications: IP66/IP67, NEMA 4X, IK10, RoHS compliant
Buy the Dialight Series 622 LED Indicator: 6221302304F
Order the Dialight 6221302304F Heavy Duty LED Indicator online today to ensure reliable power and status indication for industrial and outdoor applications. Crafted with durable stainless steel housing and secured with screw terminals, this indicator features a wide operating temperature range and is rated IP66/IP67 for outdoor protection. Suitable for main and remote power alerts, instrumentation, and maintenance signals, it includes internal resistors for 6, 12, and 24 VDC. Its rugged design guarantees long-lasting performance in demanding environments, making it an essential component for critical systems.
Get Dialight 6221302304F today—built for harsh environments with corrosion-resistant stainless steel design and versatile power indications.
Frequently Asked Questions
Where can I buy DIALIGHT 6221302304F?
You can click on the BUY or RFQ button to purchase 6221302304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6221302304F?
You can download the 6221302304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6221302304F?
DIALIGHT
