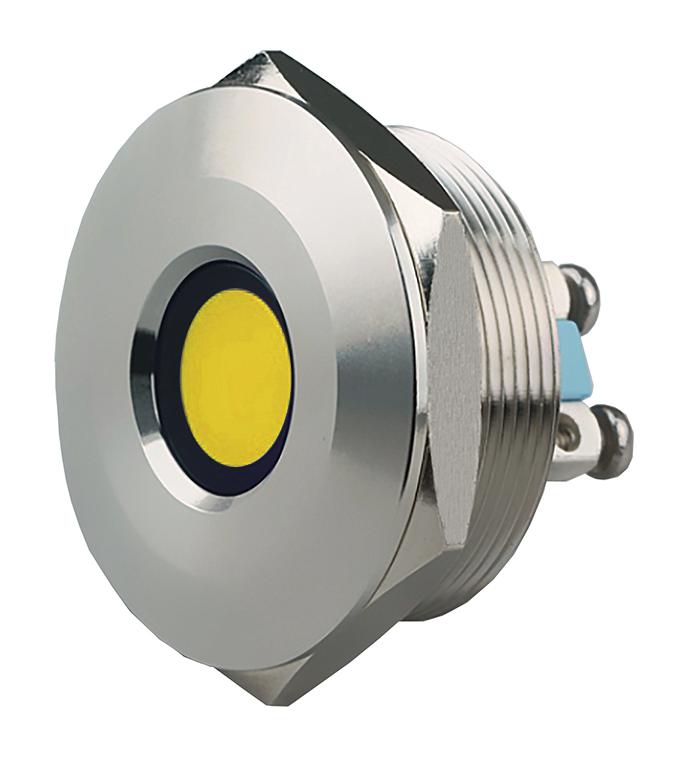

DIALIGHT 6231303304F Heavy Duty Indicator
The 623 Series Heavy Duty LED Panel Mount Indicators combine durable stainless steel housing with a sleek high-end aesthetic, offering corrosion resistance and secure mounting for indoor and outdoor applications. These indicators feature operating voltages of 3 VDC, 6 VDC, 12 VDC, or 24 VDC, with internal resistors included for model-specific voltages. Equipped with screw terminals and designed to withstand harsh environments, they are ideal for main power, remote status, maintenance alerts, and instrumentation. Their robust construction and seamless integration make them perfect for industrial, electrical, and control systems requiring reliable visual signals.
DIALIGHT 6231303304F Heavy Duty Indicator Specifications:
- Housing: Stainless Steel
- Mounting Hole Size: 1.18 inches (30 mm)
- Max Panel Thickness: 0.394 inches (10 mm)
- Operating Voltage: 3 VDC (external resistor required), 6 VDC, 12 VDC, 24 VDC (internal resistor included)
- Operating Temp: -25°C to +70°C (-13°F to 158°F)
- Storage Temp: -25°C to +70°C (-13°F to 158°F)
- Electrical Connection: Screw terminals
- Mounting Torque: 7.01 lbs-ft (9.5 Nm)
- Certifications & Ratings: RoHS compliant, IP66/IP67, IK10, NEMA 4X
Buy the Dialight Series 623 LED Panel Mount Indicator: 6231303304F
Purchase the Dialight 623 Series Heavy Duty LED Panel Mount Indicator online today to enhance your industrial or control system. These rugged indicators feature stainless steel housing, corrosion resistance, and operation from 3V to 24V DC with internal resistors included. Designed for indoor and outdoor use, they withstand harsh conditions with certifications such as IP66/IP67, IK10, and NEMA 4X. Easy to install via screw terminals, ideal for main power, remote indication, and instrumentation. Reliable and durable, these indicators ensure clear visual signals for critical applications, available for quick online ordering.
Buy Dialight 6231303304F now and experience unmatched durability and reliable visual indication for demanding industrial environments.
Frequently Asked Questions
Where can I buy DIALIGHT 6231303304F?
You can click on the BUY or RFQ button to purchase 6231303304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6231303304F?
You can download the 6231303304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6231303304F?
DIALIGHT
