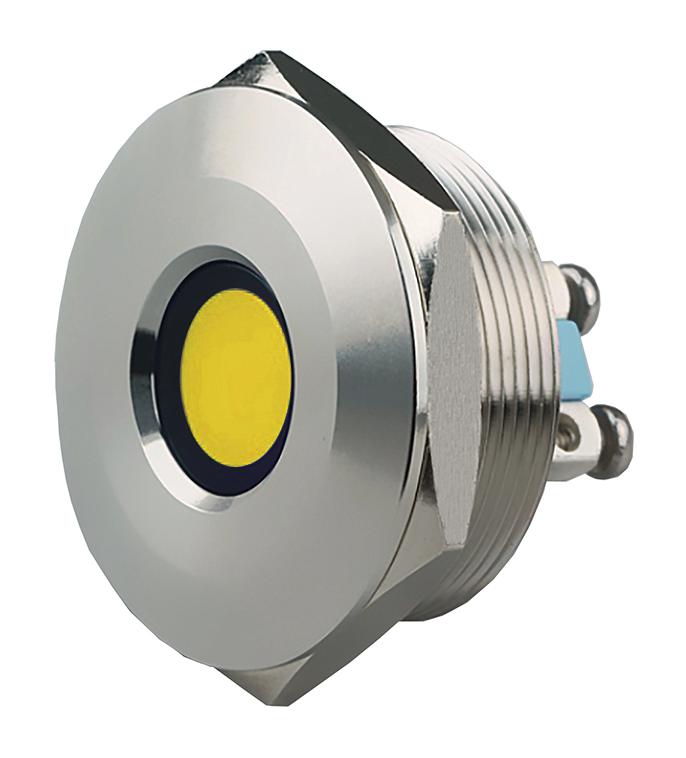

DIALIGHT 6231304304F Heavy Duty Indicator
The 623 Series Heavy Duty LED Panel Mount Indicators are designed for durability and high performance in industrial environments. Constructed from corrosion-resistant stainless steel, they feature a robust IP66/IP67 rating, IK10 impact resistance, and NEMA 4X protection, ensuring reliable operation outdoors and indoors. These indicators operate at 6, 12, and 24 VDC with internal resistors for ease of use. Suitable for power, status, and instrumentation indications, they have a 30mm mounting hole diameter, screw terminal connections, and are capable of withstanding temperatures from -25°C to +70°C, making them ideal for demanding industrial applications.
DIALIGHT 6231304304F Heavy Duty Indicator Specifications:
- Mounting Hole Size: 30mm (1.18 inches)
- Max Panel Thickness: 10mm (0.394 inches)
- Material: Stainless Steel
- Protection Ratings: IP66, IP67, NEMA 4X
- Impact Resistance: IK10
- Operating Voltage: 3 VDC with external resistor, 6V, 12V, 24 VDC (internal resistor included)
- Operating Temp: -25°C to +70°C (-13°F to 158°F)
- Storage Temp: -25°C to +70°C (-13°F to 158°F)
- Electrical Connection: Screw terminals
- Dimensions (mounting hole): 30mm (1.18 inch)
Buy the Dialight 6231304304F – Reliable LED Panel Indicators for Industrial Applications
Order the Dialight Heavy Duty Indicator 6231304304F today for a reliable, corrosion-resistant LED indicator suitable for industrial panels. Designed with stainless steel housing, it offers IP66/IP67 protection, IK10 impact resistance, and operates at 6, 12, and 24 VDC with internal resistors. Features screw terminal connections and is ideal for power, status, and instrumentation indication in harsh environments. Its robust construction ensures long-lasting performance, making it an essential component for demanding industrial applications requiring high durability and precise signaling.
Get Dialight 6231304304F today—built for durability with corrosion resistance and high-impact protection, perfect for demanding industrial environments.
Frequently Asked Questions
Where can I buy DIALIGHT 6231304304F?
You can click on the BUY or RFQ button to purchase 6231304304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6231304304F?
You can download the 6231304304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6231304304F?
DIALIGHT
