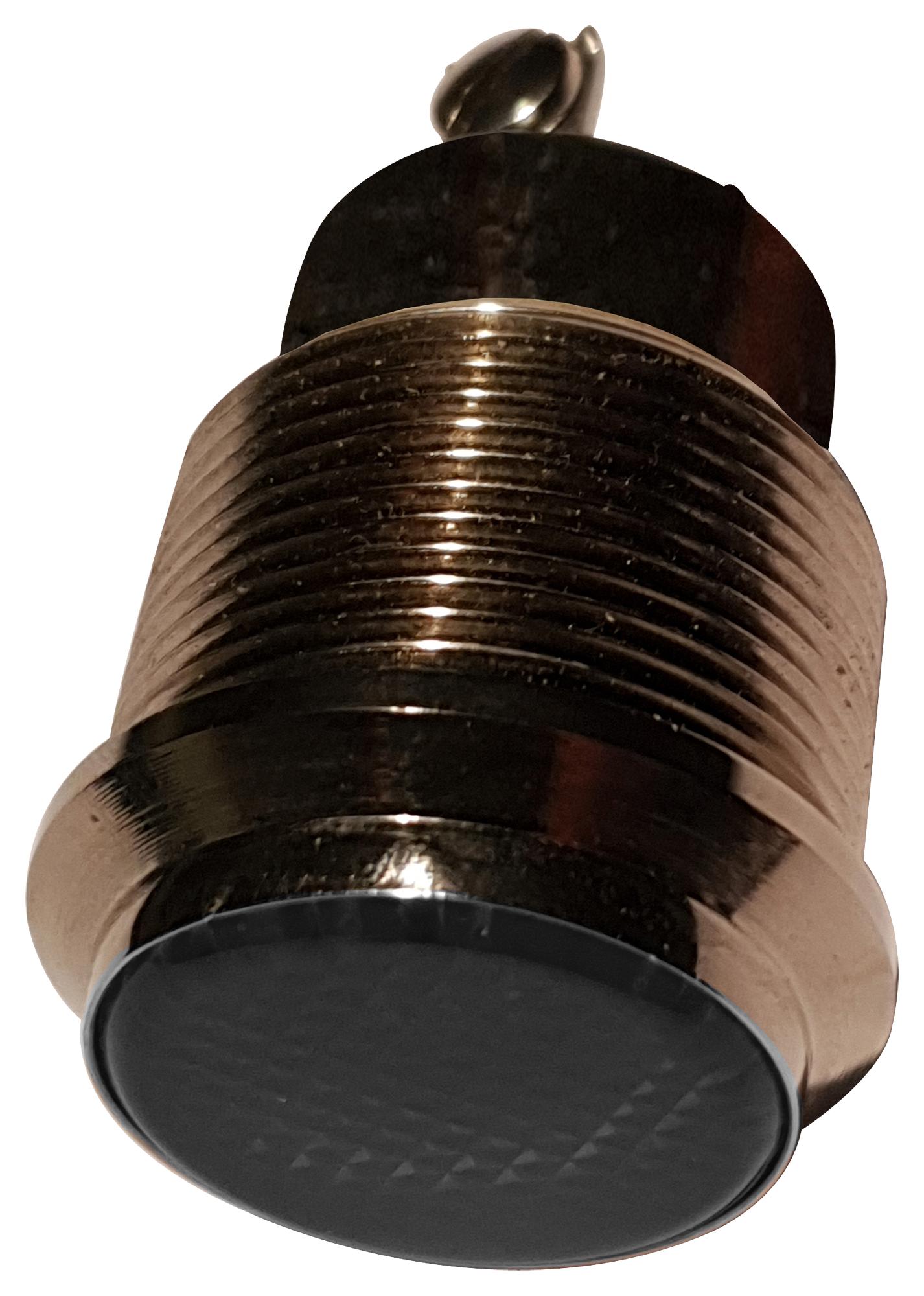

DIALIGHT 6301004304F Panel Mount LED Indicator
The DIALIGHT 630 Series LED Panel Mount Indicators are robust, panel-mount devices designed for demanding industrial environments. These indicators combine InGaN and AlInGaP technologies to deliver maximum light output while withstanding exposure to rain, dust, and sunlight. Common applications include instrument panels, pump system controllers, safety systems in mining and oil refineries, UL 508 panel applications, petrochemical controls, environmental monitoring equipment, and power generators. The housing is brass with a white nickel plating, and terminals are brass with a hot solder dip per Mil-F-14072D, M258, Type II. The lens material is transparent polycarbonate (UL 94-0).
DIALIGHT 6301004304F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 1.18" (30 mm)
- Max Panel Thickness: Flat: 0.575" (14.6 mm), Dome: 0.375" (9.53 mm)
- Mounting Torque: 40 in-lbs
- Voltage Options: 12 & 24 VDC, and 120 VAC
- Operating Temp: -30 °C to +85 °C (-22 °F to +185 °F)
- Storage Temp: -40 °C to +100 °C (-40 °F to +212 °F)
- Electrical Connection: 6-32 screw terminals
- Housing: Brass—White Nickel Plated
- Terminals: Brass — Hot solder dip per Mil-F-14072D, M258, Type II
- Lens Material: Transparent Polycarbonate (UL 94-0)
- Lock Washer: Phosphor Bronze — Nickel Plated
- Nut: Brass—Nickel Plated
- Typical Current: 9.5 - 95 mA
- Typical Intensity: 5,750 - 61,000 mcd
Buy the 630-1004-304F DIALIGHT Panel Mount LED Indicator | myMectronic
Purchase the DIALIGHT 630-1004-304F Panel Mount LED Indicator securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6301004304F?
You can click on the BUY or RFQ button to purchase 6301004304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6301004304F?
You can download the 6301004304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6301004304F?
DIALIGHT
