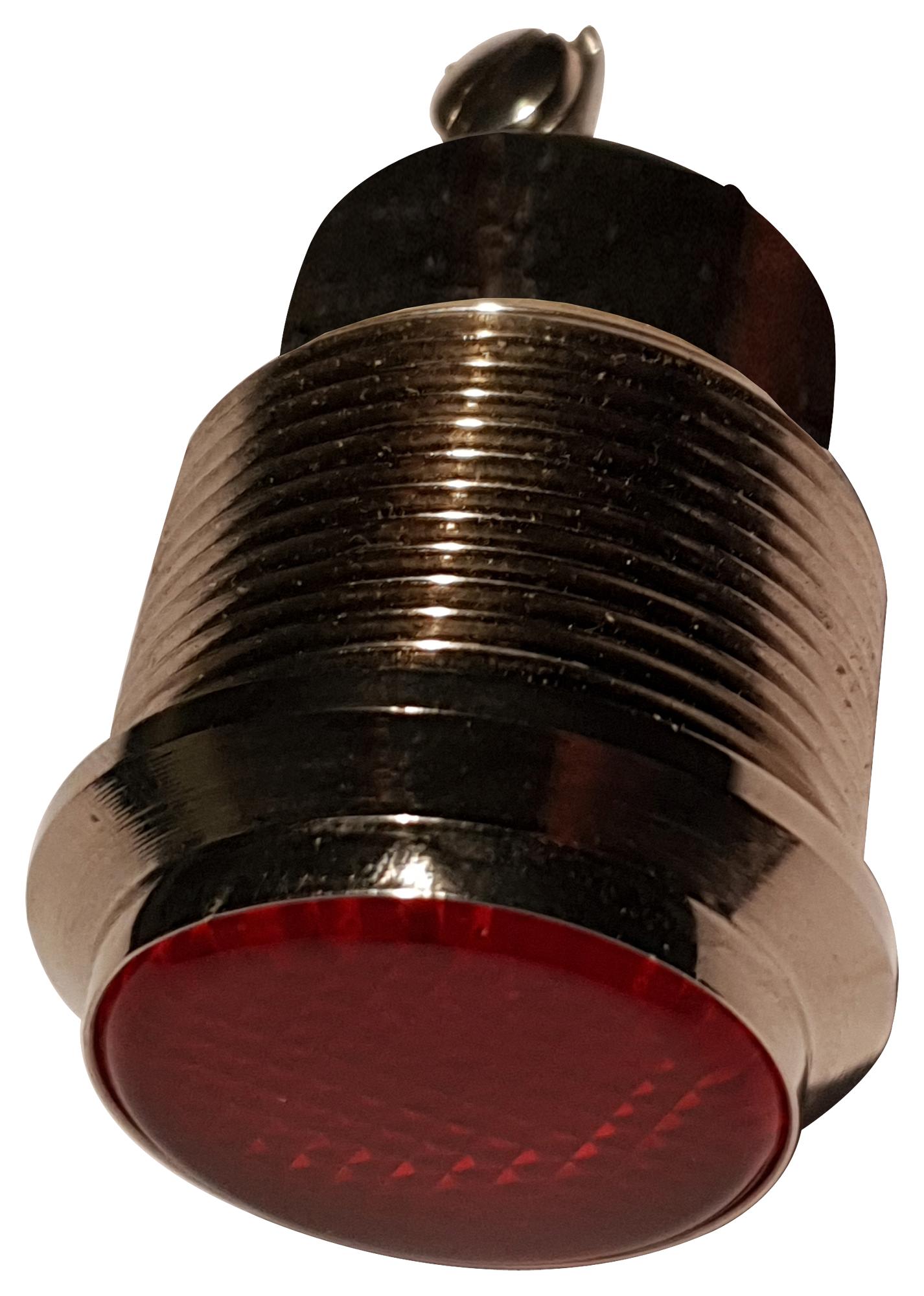

DIALIGHT 6301503304F Panel Mount LED Indicator
The DIALIGHT 630 Series LED Panel Mount Indicators are robust and versatile devices designed for demanding industrial environments. Utilizing both InGaN and AlInGaP technologies, these indicators offer exceptional light output and durability, making them suitable for applications exposed to rain, dust, and sunlight. Commonly used in instrument panels, pump system controllers, safety applications like mining and oil refineries, UL 508 panel applications, petrochemical controls, agricultural controls, and environmental monitoring equipment, the 630 Series provides reliable visual indication in a wide range of settings. The housing is brass with a white nickel plating, and terminals are brass with a hot solder dip per Mil-F-14072D, M258, Type II. The lens material is transparent polycarbonate (UL 94-0).
DIALIGHT 6301503304F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 1.18" (30 mm)
- Max Panel Thickness: Flat: 0.575" (14.6 mm), Dome: 0.375" (9.53 mm)
- Mounting Torque: 40 in-lbs
- Voltage Options: 12 & 24 VDC, and 120 VAC
- Operating Temp: -30 °C to +85 °C (-22 °F to +185 °F)
- Storage Temp: -40 °C to +100 °C (-40 °F to +212 °F)
- Electrical Connection: 6-32 screw terminals
- Housing: Brass—White Nickel Plated
- Terminals: Brass — Hot solder dip per Mil-F-14072D, M258, Type II
- Lens Material: Transparent Polycarbonate (UL 94-0)
- Lock Washer: Phosphor Bronze — Nickel Plated
- Nut: Brass—Nickel Plated
- Typical Current: 95 mA
- Typical Intensity: 22,000 mcd
- Lens Style: Flat/Domed
- Color: Red
