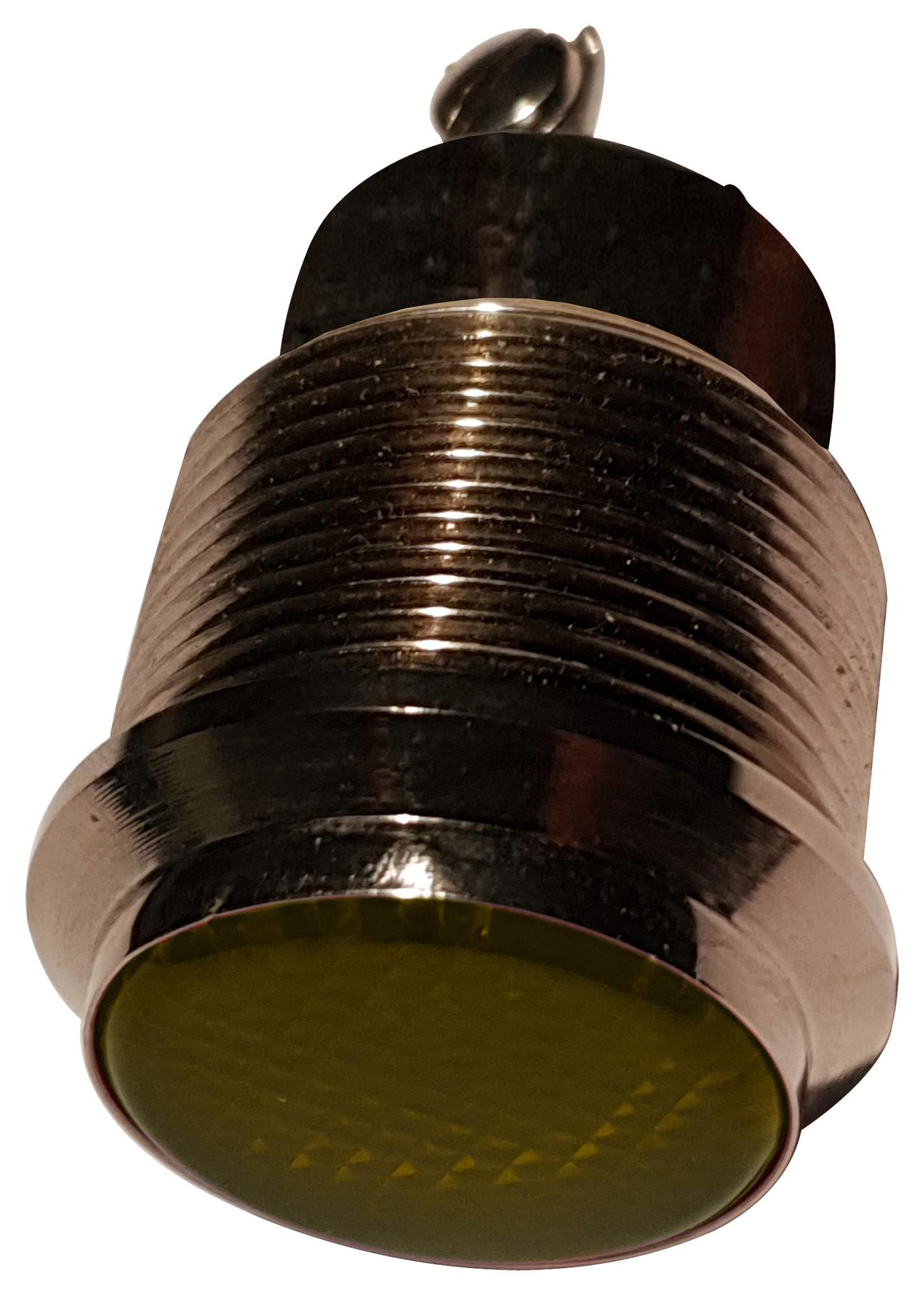

DIALIGHT 6301703304F Panel Mount LED Indicator
The DIALIGHT 630 Series LED Panel Mount Indicators are robust and versatile devices designed for demanding industrial environments. Utilizing both InGaN and AlInGaP technologies, these indicators provide high light output and exceptional durability, making them ideal for applications such as instrument panels, pump system controllers, safety systems in mining and oil refineries, UL 508 panel applications, petrochemical controls, environmental monitoring equipment, and power generators. The housing is brass with a white nickel plating, and terminals are brass with a hot solder dip per Mil-F-14072D, M258, Type II. The lens material is transparent polycarbonate (UL 94-0).
DIALIGHT 6301703304F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 1.18" (30 mm)
- Max Panel Thickness: Flat: 0.575" (14.6 mm), Dome: 0.375" (9.53 mm)
- Mounting Torque: 40 in-lbs
- Voltage Options: 12 & 24 VDC, and 120 VAC
- Operating Temp: -30 °C to +85 °C (-22 °F to +185 °F)
- Storage Temp: -40 °C to +100 °C (-40 °F to +212 °F)
- Electrical Connection: 6-32 screw terminals
- Housing: Brass—White Nickel Plated
- Terminals: Brass — Hot solder dip per Mil-F-14072D, M258, Type II
- Lens Material: Transparent Polycarbonate (UL 94-0)
- Lock Washer: Phosphor Bronze — Nickel Plated
- Nut: Brass—Nickel Plated
- Typical Current: 95 mA (for Yellow, Red)
- Typical Intensity: 13,500 mcd (for Yellow)
Buy the 630-1703-304F DIALIGHT Panel Mount LED Indicator | myMectronic
Securely purchase the DIALIGHT 630-1703-304F Panel Mount LED Indicator online today.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6301703304F?
You can click on the BUY or RFQ button to purchase 6301703304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6301703304F?
You can download the 6301703304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6301703304F?
DIALIGHT
