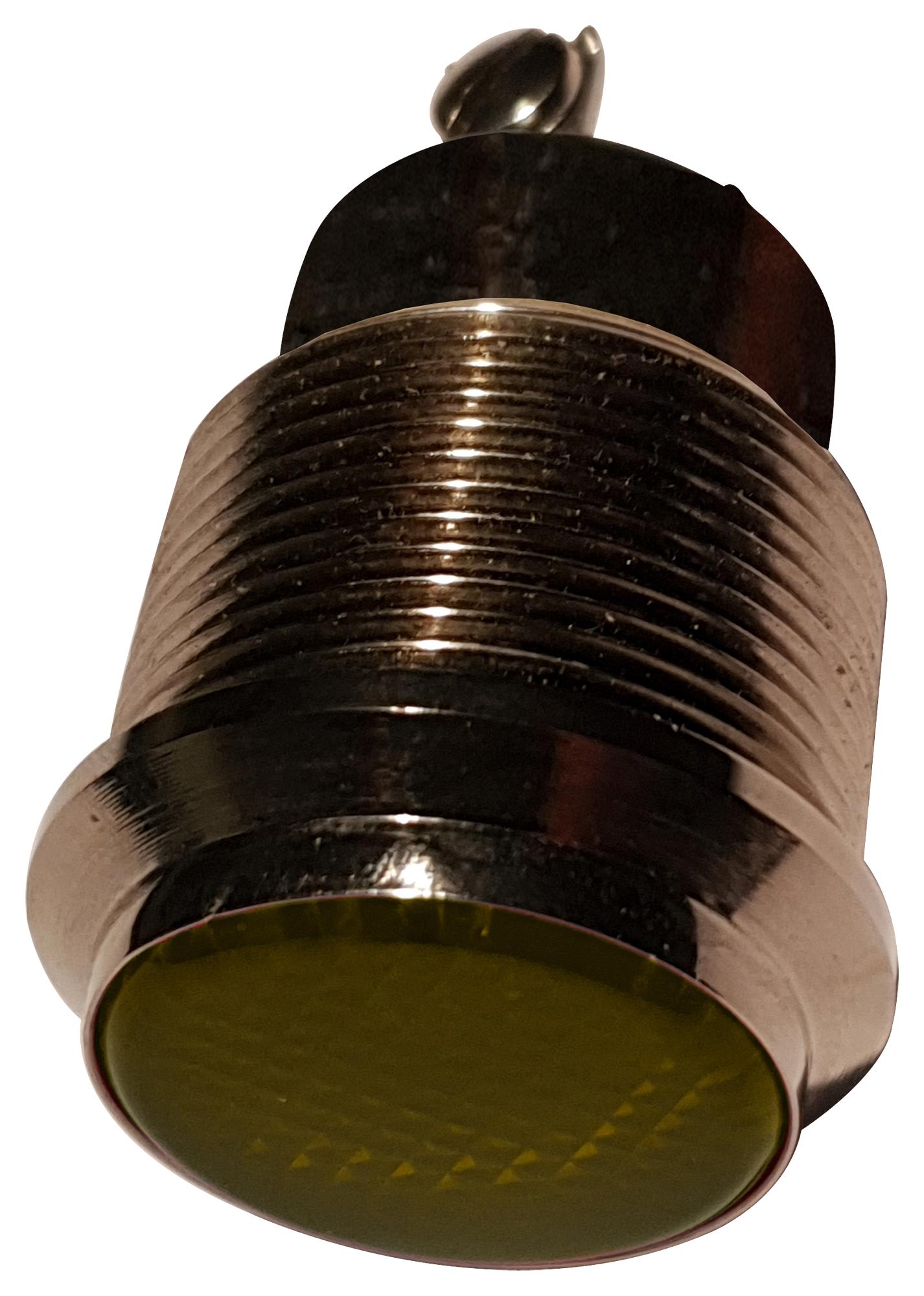

DIALIGHT 6301705304F Panel Mount LED Indicator
The DIALIGHT 630 Series LED Panel Mount Indicators combine InGaN and AlInGaP technologies to deliver maximum light output and exceptional durability. Designed for demanding outdoor environments, these indicators withstand rain, dust, and sunlight. They are commonly used in instrument panels, pump system controllers, safety applications like mining and oil refineries, UL 508 panel applications, petrochemical controls, agricultural controls, and environmental monitoring equipment. The housing is brass with a white nickel plating, and the terminals are brass with a hot solder dip per Mil-F-14072D, M258, Type II. The lens material is transparent polycarbonate (UL 94-0).
DIALIGHT 6301705304F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 1.18" (30 mm)
- Max Panel Thickness: Flat: 0.575" (14.6 mm), Dome: 0.375" (9.53 mm)
- Mounting Torque: 40 in-lbs
- Voltage Options: 12 & 24 VDC, and 120 VAC
- Operating Temp: -30 °C to +85 °C (-22 °F to +185 °F)
- Storage Temp: -40 °C to +100 °C (-40 °F to +212 °F)
- Electrical Connection: 6-32 screw terminals
- Housing: Brass—White Nickel Plated
- Terminals: Brass — Hot solder dip per Mil-F-14072D, M258, Type II
- Lens Material: Transparent Polycarbonate (UL 94-0)
- Lock Washer: Phosphor Bronze — Nickel Plated
- Nut: Brass—Nickel Plated
- Typical Current: 95 mA (120 VAC)
- Typical Intensity: 5750 mcd (120 VAC)
Buy the 630-1705-304F DIALIGHT Panel Mount LED Indicator | myMectronic
Purchase the DIALIGHT 630-1705-304F Panel Mount LED Indicator securely online today.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6301705304F?
You can click on the BUY or RFQ button to purchase 6301705304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6301705304F?
You can download the 6301705304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6301705304F?
DIALIGHT
