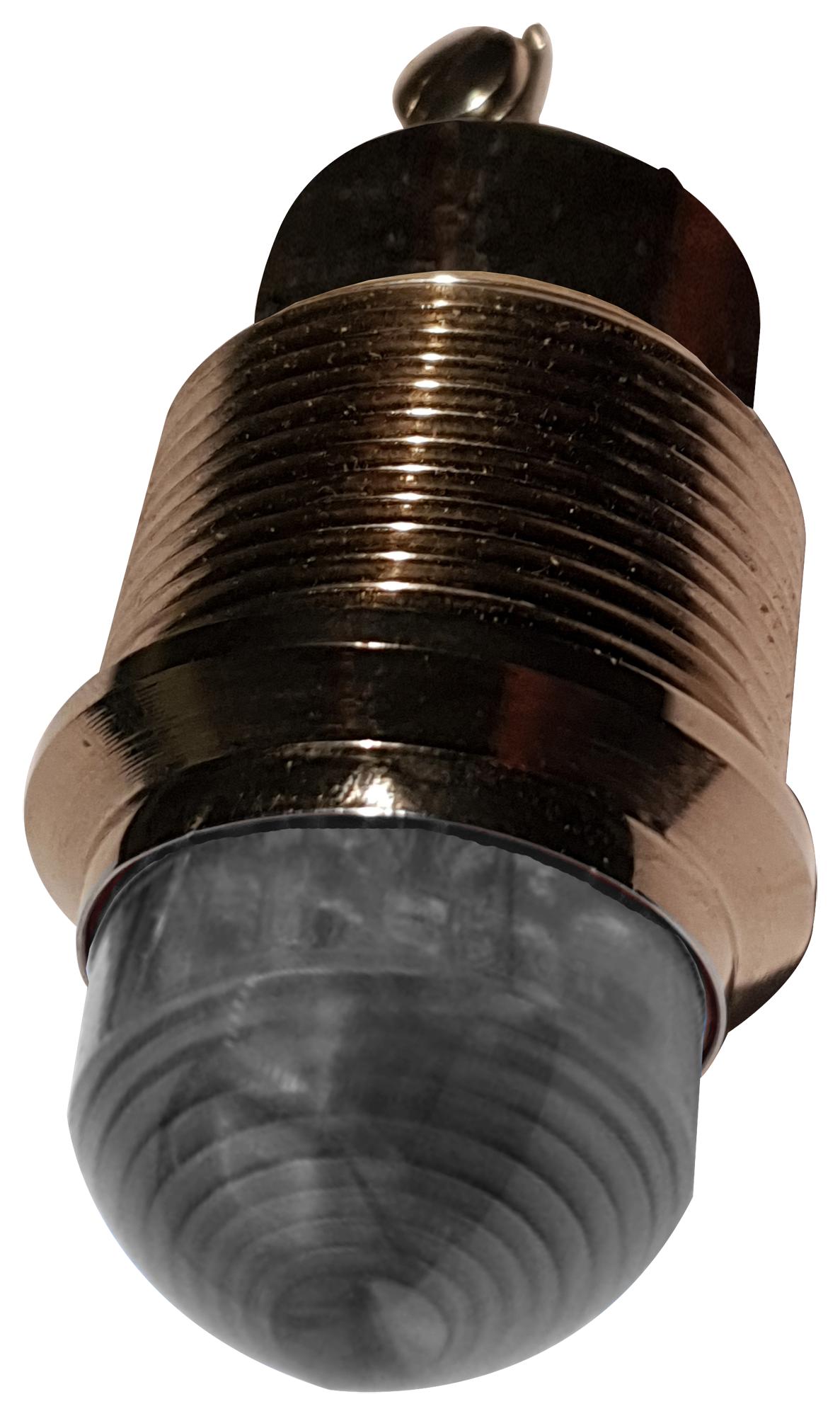

DIALIGHT 6303003304F Panel Mount LED Indicator
The DIALIGHT 630 Series LED Panel Mount Indicators are robust and versatile devices designed for demanding industrial environments. Utilizing InGaN and AlInGaP technologies, these indicators provide maximum light output and are built to withstand exposure to rain, dust, and sunlight. Common applications include instrument panels, pump system controllers, safety systems in mining and oil refineries, UL 508 panel applications, petrochemical controls, environmental monitoring equipment, and power generators. The indicators feature a mounting hole size of 1.18 inches (30 mm) and are available with flat or domed lens options, along with various voltage and color choices to meet specific application requirements. They are designed for secure and reliable performance in challenging conditions.
DIALIGHT 6303003304F Panel Mount LED Indicator Specifications:
- UL Listing: UL 1598 (E156890)
- IP Rating: IP66
- NEMA Rating: NEMA 4X
- RoHS Compliant: Yes (w/ 6C exemption)
- IK Rating: IK07
- Mounting Hole Size: 1.18" (30 mm)
- Max Panel Thickness: Flat: 0.575" (14.6 mm), Dome: 0.375" (9.53 mm)
- Mounting Torque: 40 in-lbs
- Voltage Options: 12 & 24 VDC, 120 VAC
- Operating Temperature: -30 °C to +85 °C (-22 °F to +185 °F)
- Storage Temperature: -40 °C to +100 °C (-40 °F to +212 °F)
- Electrical Connection: 6-32 screw terminals
- Housing Material: Brass, White Nickel Plated
- Terminal Material: Brass, Hot solder dip per Mil-F-14072D, M258, Type II
- Lens Material: Transparent Polycarbonate (UL 94-0)
- Lock Washer Material: Phosphor Bronze, Nickel Plated
- Nut Material: Brass, Nickel Plated
