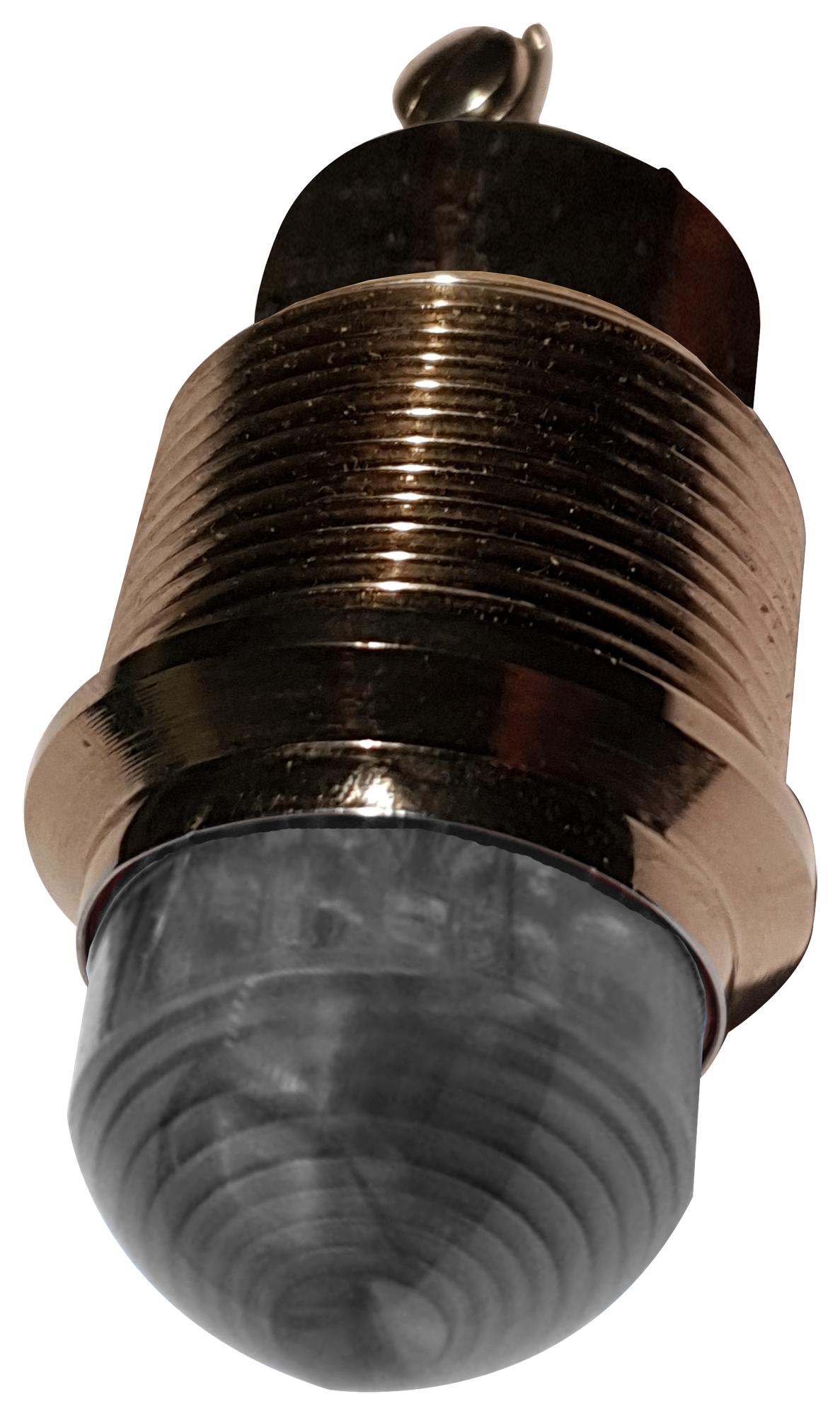

DIALIGHT 6303005304F Panel Mount LED Indicator
The DIALIGHT 630 Series LED Panel Mount Indicators are designed for demanding industrial environments, incorporating InGaN and AlInGaP technologies for maximum light output. These indicators are built to withstand exposure to rain, dust, and sunlight, making them suitable for instrument panels, pump system controllers, safety applications in mining and oil refineries, UL 508 panel applications, petrochemical controls, environmental monitoring equipment, and power generators. They offer a wide range of voltage options and are RoHS compliant.
DIALIGHT 6303005304F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 1.18" (30 mm)
- Max Panel Thickness: Flat: 0.575" (14.6 mm), Dome: 0.375" (9.53 mm)
- Mounting Torque: 40 in-lbs
- Voltage Options: 12 & 24 VDC, and 120 VAC
- Operating Temperature: -30 °C to +85 °C (-22 °F to +185 °F)
- Storage Temperature: -40 °C to +100 °C (-40 °F to +212 °F)
- Electrical Connection: 6-32 screw terminals
- Housing Material: Brass, White Nickel Plated
- Terminal Material: Brass, Hot solder dip per Mil-F-14072D, M258, Type II
- Lens Material: Transparent Polycarbonate (UL 94-0)
- Lock Washer Material: Phosphor Bronze, Nickel Plated
- Nut Material: Brass, Nickel Plated
- Certifications: UL 1598 (E156890), IP66, NEMA 4X, IK07
Buy the 630-3005-304F DIALIGHT Panel Mount LED Indicator | myMectronic
Purchase the DIALIGHT 630-3005-304F Panel Mount LED Indicator securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6303005304F?
You can click on the BUY or RFQ button to purchase 6303005304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6303005304F?
You can download the 6303005304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6303005304F?
DIALIGHT
