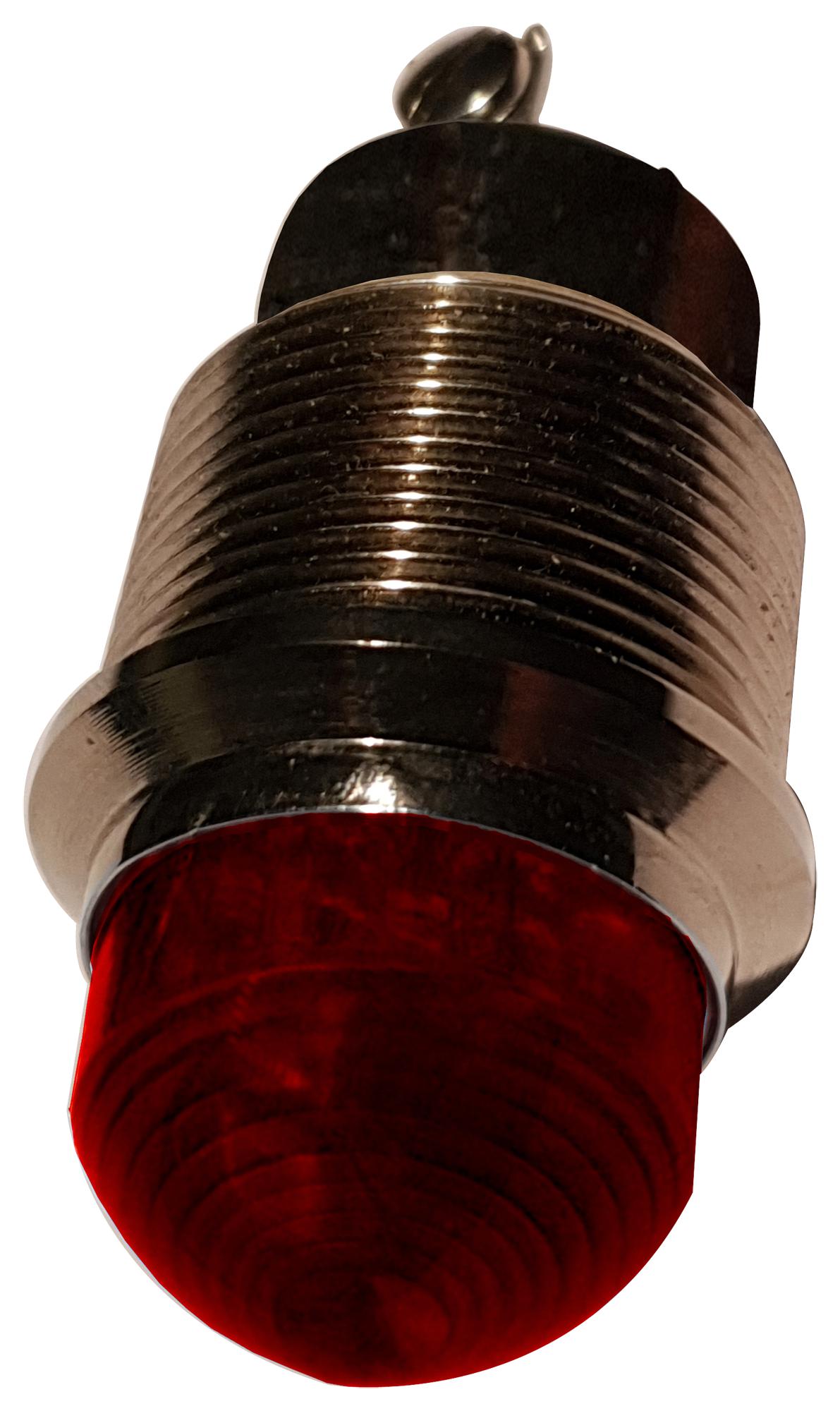

DIALIGHT 6303503304F Panel Mount LED Indicator
The DIALIGHT 630 Series LED Panel Mount Indicators are designed for demanding industrial environments, combining InGaN and AlInGaP technologies for high light output. These indicators are built to withstand exposure to rain, dust, and sunlight, making them ideal for instrument panels, pump system controllers, safety applications in mining and oil refineries, UL 508 panel applications, petrochemical controls, environmental monitoring equipment, and power generators. They feature a robust design with a brass housing, nickel-plated terminals, and a transparent polycarbonate lens, ensuring long-lasting performance and reliability.
DIALIGHT 6303503304F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 1.18" (30 mm)
- Max Panel Thickness: Flat: 0.575" (14.6 mm), Dome: 0.375" (9.53 mm)
- Mounting Torque: 40 in-lbs
- Voltage Options: 12 & 24 VDC, and 120 VAC
- Operating Temp: -30 °C to +85 °C (-22 °F to +185 °F)
- Storage Temp: -40 °C to +100 °C (-40 °F to +212 °F)
- Electrical Connection: 6-32 screw terminals
- Housing: Brass—White Nickel Plated
- Terminals: Brass — Hot solder dip per Mil-F-14072D, M258, Type II
- Lens Material: Transparent Polycarbonate (UL 94-0)
- Lock Washer: Phosphor Bronze — Nickel Plated
- Nut: Brass—Nickel Plated
- Color Options: White, Red, Green, Yellow, Blue
- Typical Current: 9.5 - 10.5 mA (12VDC), 32 - 46 mA (24VDC), 60 - 95 mA (120VAC)
- Typical Intensity: 10,250 - 61,000 mcd
Buy the 630-3503-304F DIALIGHT Panel Mount LED Indicator | myMectronic
Securely purchase the DIALIGHT 630-3503-304F Panel Mount LED Indicator online for reliable performance and fast shipping.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6303503304F?
You can click on the BUY or RFQ button to purchase 6303503304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6303503304F?
You can download the 6303503304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6303503304F?
DIALIGHT
