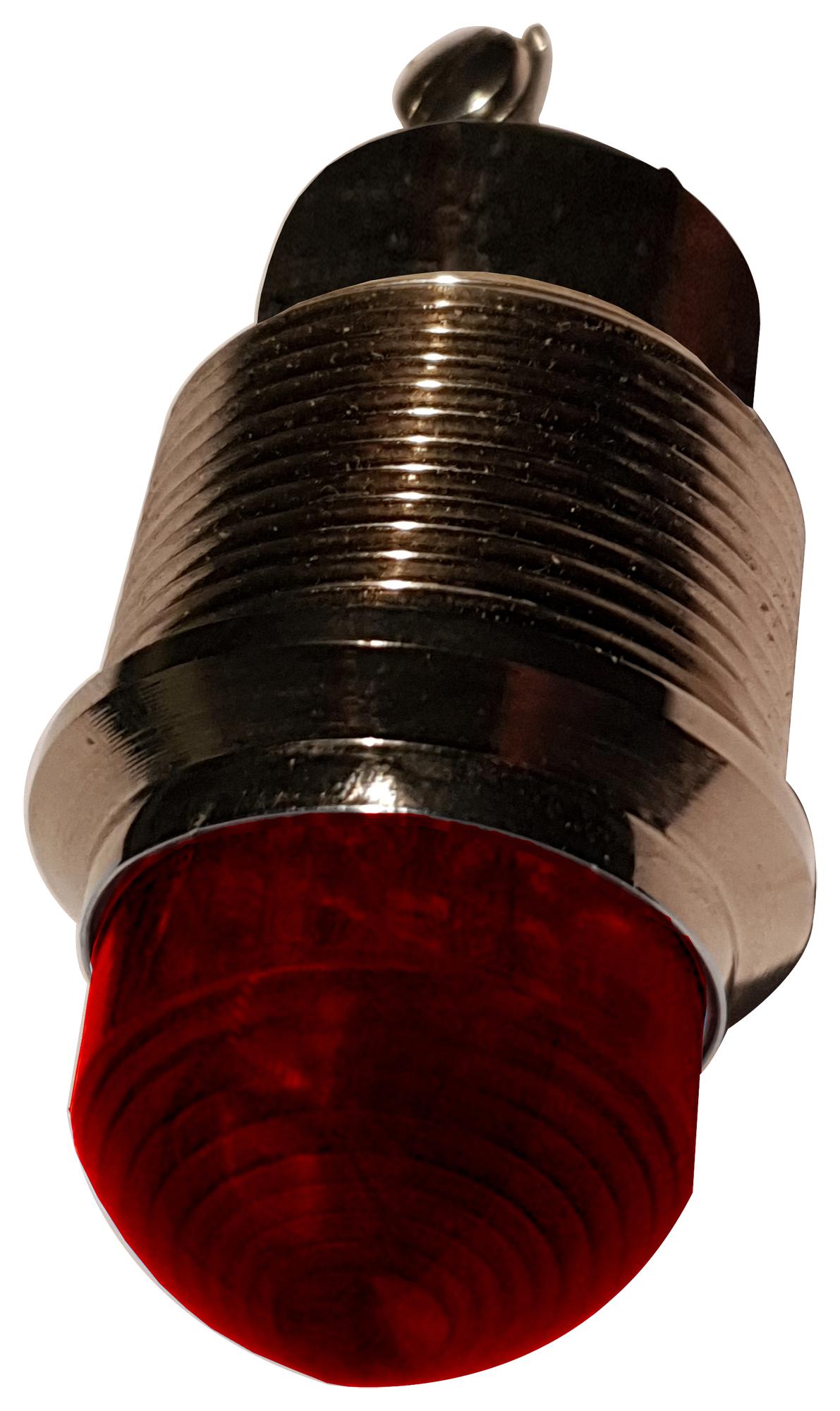

DIALIGHT 6303505304F Panel Mount LED Indicator
The DIALIGHT 630 Series LED Panel Mount Indicators are robust and versatile components designed for demanding industrial environments. Utilizing InGaN and AlInGaP technologies, these indicators provide maximum light output and are suitable for applications such as instrument panels, pump system controllers, safety systems, mining, oil refineries, petrochemical plants, agricultural controls, and environmental monitoring equipment. The housing is brass with a white nickel plating, and terminals are brass with a hot solder dip per Mil-F-14072D, M258, Type II. The lens material is transparent polycarbonate (UL 94-0).
DIALIGHT 6303505304F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 1.18" (30 mm)
- Max Panel Thickness: Flat: 0.575" (14.6 mm), Dome: 0.375" (9.53 mm)
- Mounting Torque: 40 in-lbs
- Voltage Options: 12 & 24 VDC, and 120 VAC
- Operating Temperature: -30 °C to +85 °C (-22 °F to +185 °F)
- Storage Temperature: -40 °C to +100 °C (-40 °F to +212 °F)
- Electrical Connection: 6-32 screw terminals
- Housing Material: Brass, White Nickel Plated
- Terminal Material: Brass, Hot Solder Dip per Mil-F-14072D, M258, Type II
- Lens Material: Transparent Polycarbonate (UL 94-0)
- Lock Washer Material: Phosphor Bronze, Nickel Plated
- Nut Material: Brass, Nickel Plated
- Typical Current: 9.5 - 10.5 mA (depending on voltage and color)
Buy the 630-3505-304F DIALIGHT Panel Mount LED Indicator | myMectronic
Purchase the DIALIGHT 630-3505-304F Panel Mount LED Indicator securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6303505304F?
You can click on the BUY or RFQ button to purchase 6303505304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6303505304F?
You can download the 6303505304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6303505304F?
DIALIGHT
