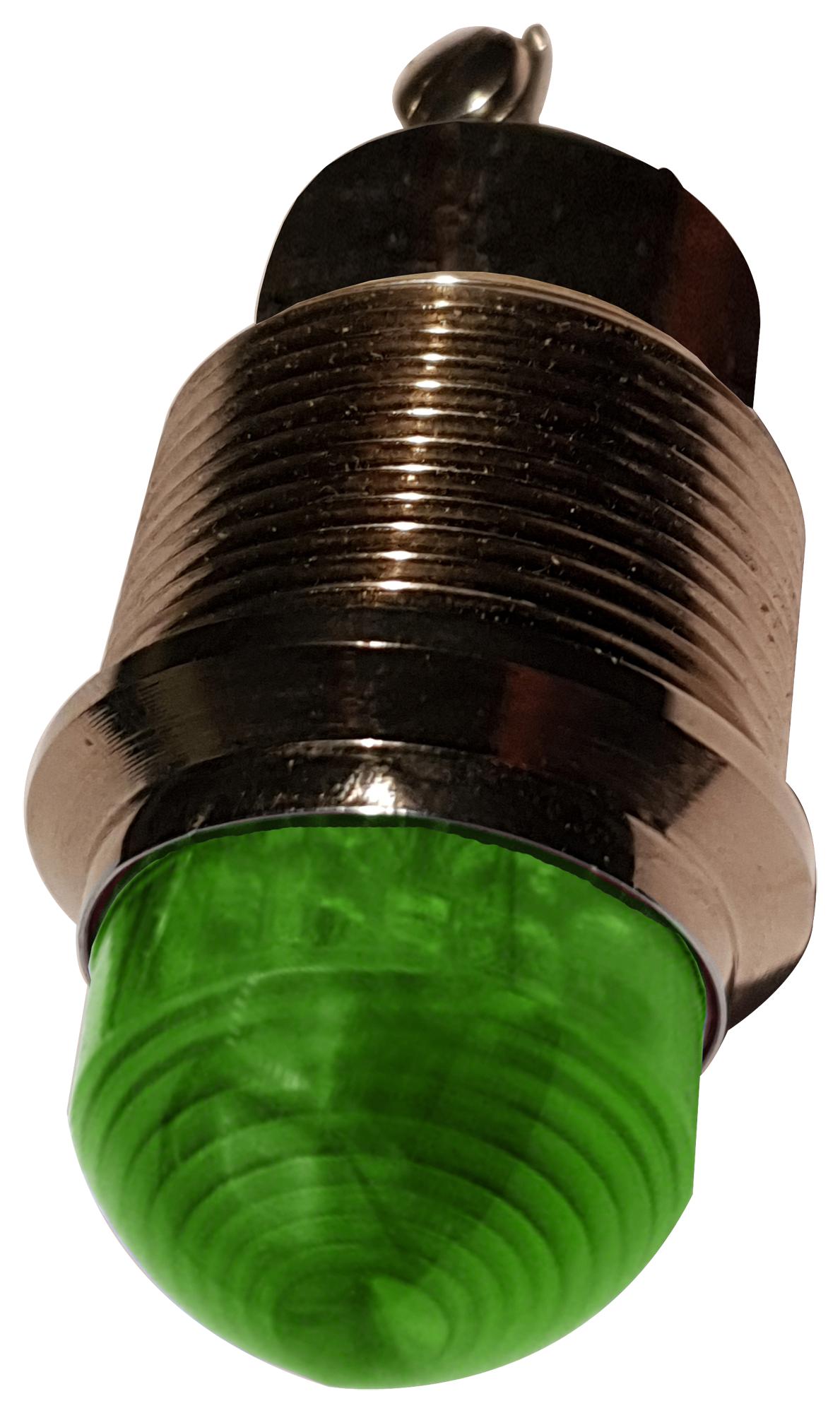

DIALIGHT 6303603304F Panel Mount LED Indicator
The DIALIGHT 630 Series LED Panel Mount Indicators are robust and versatile devices designed for demanding industrial environments. Utilizing both InGaN and AlInGaP technologies, these indicators offer exceptional light output and durability, making them suitable for applications exposed to rain, dust, and sunlight. Commonly used in instrument panels, pump system controllers, safety applications like mining and oil refineries, UL 508 panel applications, petrochemical controls, agricultural controls, and environmental monitoring equipment, the 630 Series provides reliable visual indication in a wide range of settings. The housing is brass with a white nickel plating, and terminals are brass with a hot solder dip per Mil-F-14072D, M258, Type II. The lens material is transparent polycarbonate (UL 94-0).
DIALIGHT 6303603304F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 1.18" (30 mm)
- Max Panel Thickness: Flat: 0.575" (14.6 mm), Dome: 0.375" (9.53 mm)
- Mounting Torque: 40 in-lbs
- Voltage Options: 12 & 24 VDC, and 120 VAC
- Operating Temp: -30 °C to +85 °C (-22 °F to +185 °F)
- Storage Temp: -40 °C to +100 °C (-40 °F to +212 °F)
- Electrical Connection: 6-32 screw terminals
- Housing: Brass—White Nickel Plated
- Terminals: Brass — Hot solder dip per Mil-F-14072D, M258, Type II
- Lens Material: Transparent Polycarbonate (UL 94-0)
- Lock Washer: Phosphor Bronze — Nickel Plated
- Nut: Brass—Nickel Plated
Buy the 630-3603-304F DIALIGHT Panel Mount LED Indicator | myMectronic
Securely purchase the DIALIGHT 630-3603-304F Panel Mount LED Indicator online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6303603304F?
You can click on the BUY or RFQ button to purchase 6303603304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6303603304F?
You can download the 6303603304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6303603304F?
DIALIGHT
