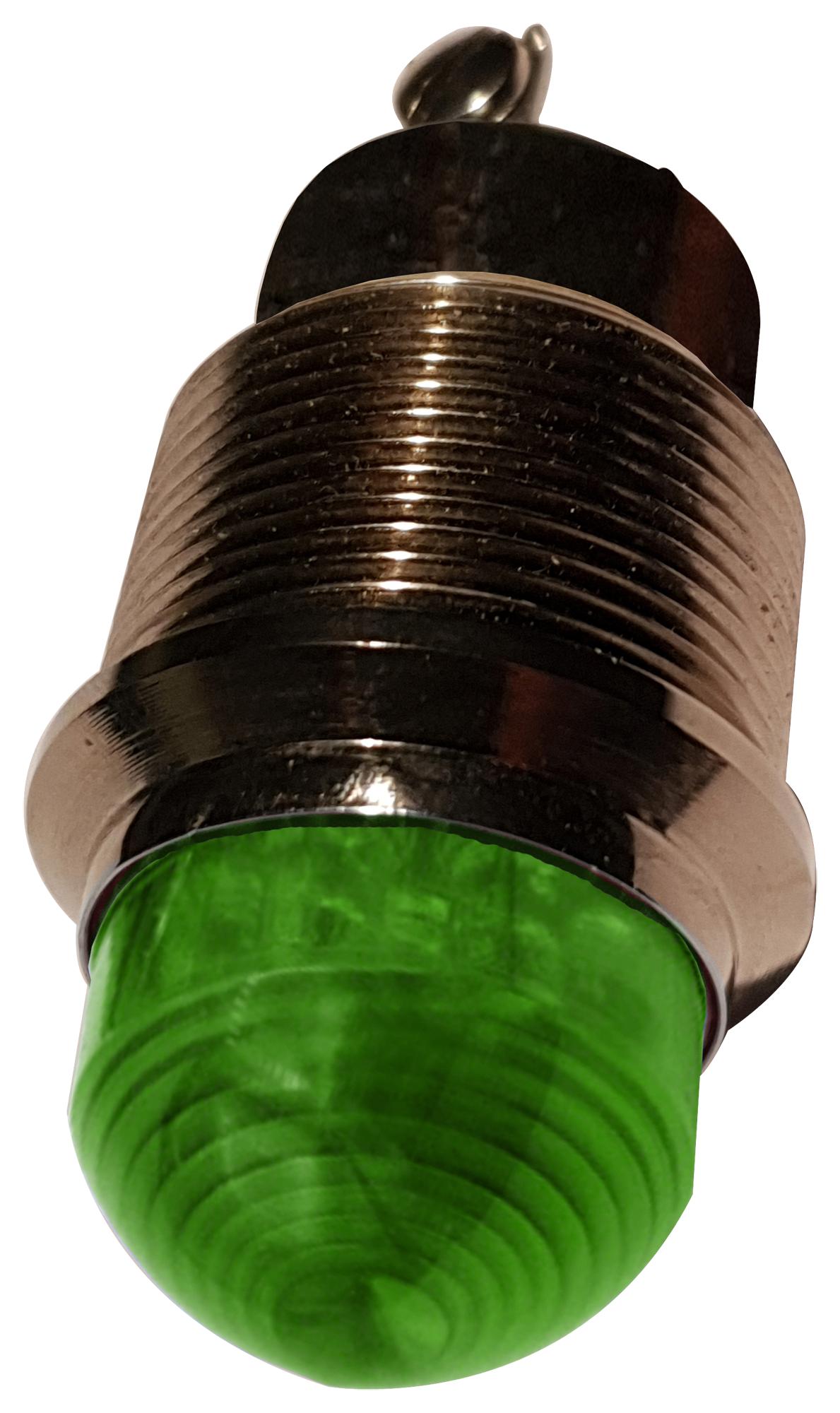

DIALIGHT 6303604304F Panel Mount LED Indicator
The Dialight 630 Series LED Panel Mount Indicators are designed for demanding industrial environments. Utilizing InGaN and AlInGaP technologies, these indicators provide maximum light output and are built to withstand exposure to rain, dust, and sunlight. Common applications include instrument panels, pump system controllers, safety systems in mining and oil refineries, UL 508 panel applications, petrochemical controls, environmental monitoring equipment, and power generators. The robust housing, brass terminals, and polycarbonate lens ensure long-term reliability and performance.
DIALIGHT 6303604304F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 1.18" (30 mm)
- Max Panel Thickness: Flat: 0.575" (14.6 mm), Dome: 0.375" (9.53 mm)
- Mounting Torque: 40 in-lbs
- Voltage Options: 12 & 24 VDC, and 120 VAC
- Operating Temp: -30 °C to +85 °C (-22 °F to +185 °F)
- Storage Temp: -40 °C to +100 °C (-40 °F to +212 °F)
- Electrical Connection: 6-32 screw terminals
- Housing: Brass—White Nickel Plated
- Terminals: Brass — Hot solder dip per Mil-F-14072D, M258, Type II
- Lens Material: Transparent Polycarbonate (UL 94-0)
- Lock Washer: Phosphor Bronze — Nickel Plated
- Nut: Brass—Nickel Plated
- Color Options: White, Red, Green, Yellow, Blue
- Typical Current: 9.5-10.5 mA (12VDC), 32-95 mA (24VDC), 9.5-10.5 mA (120VAC)
- Intensity: 10,250-61,000 mcd (depending on color and voltage)
