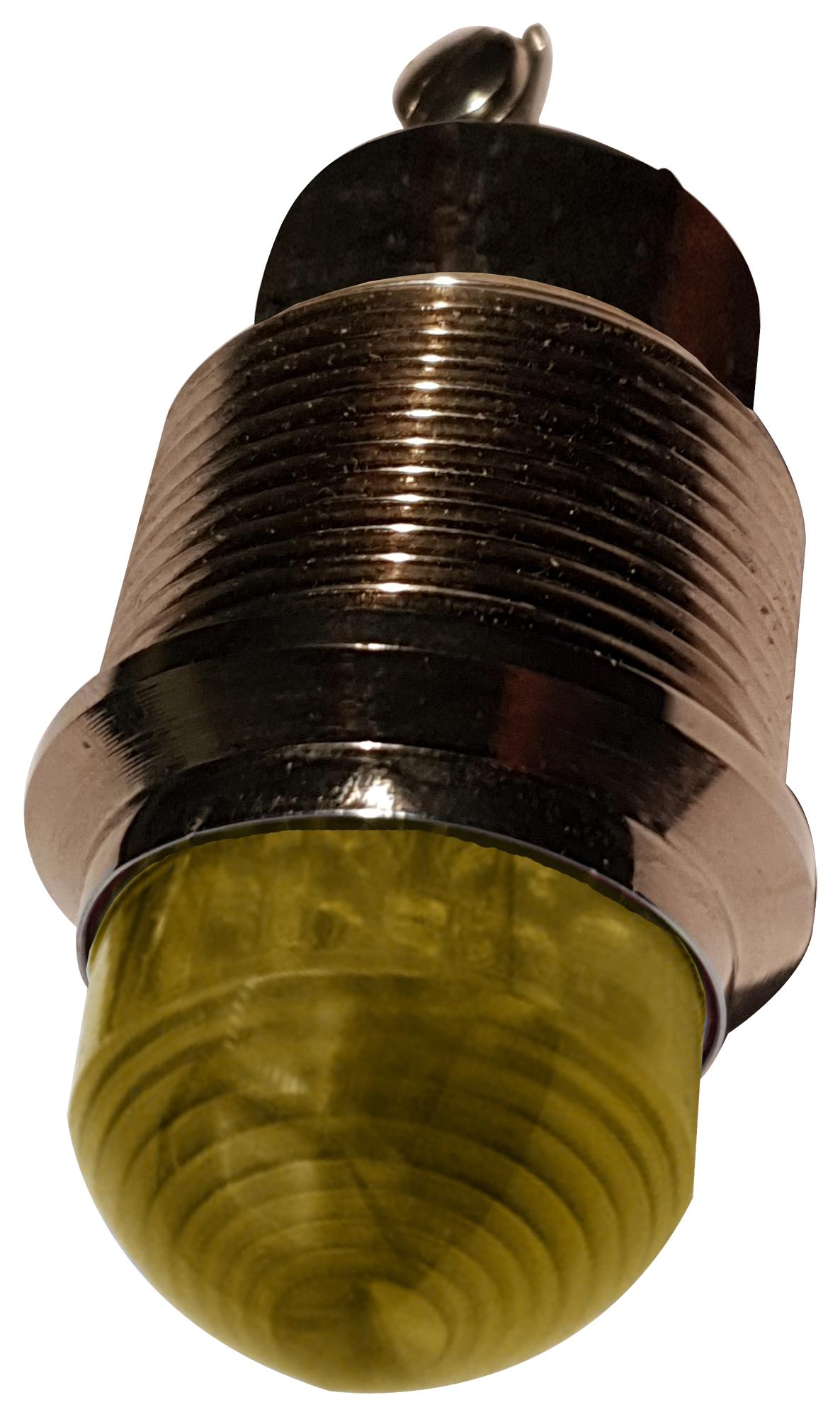

DIALIGHT 6303704304F Panel Mount LED Indicator
The DIALIGHT 630 Series LED Panel Mount Indicators are robust and versatile components designed for demanding industrial environments. Utilizing both InGaN and AlInGaP technologies, these indicators provide high light output and are built to withstand exposure to rain, dust, and sunlight. Common applications include instrument panels, pump system controllers, safety systems in mining and oil refineries, UL 508 panel applications, petrochemical controls, environmental monitoring equipment, and power generators. The indicators feature a mounting hole size of 1.18 inches (30 mm) and are available with various voltage and color options.
DIALIGHT 6303704304F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 1.18" (30 mm)
- Max Panel Thickness: Flat: 0.575" (14.6 mm), Dome: 0.375" (9.53 mm)
- Mounting Torque: 40 in-lbs
- Voltage Options: 12 & 24 VDC, and 120 VAC
- Operating Temp: -30 °C to +85 °C (-22 °F to +185 °F)
- Storage Temp: -40 °C to +100 °C (-40 °F to +212 °F)
- Electrical Connection: 6-32 screw terminals
- Housing: Brass—White Nickel Plated
- Terminals: Brass — Hot solder dip per Mil-F-14072D, M258, Type II
- Lens Material: Transparent Polycarbonate (UL 94-0)
- Lock Washer: Phosphor Bronze — Nickel Plated
- Nut: Brass—Nickel Plated
- Color Options: White, Red, Green, Yellow, Blue
- Typical Current: 95mA (for 120VAC), 60mA (for 12VDC/24VDC)
Buy the 630-3704-304F DIALIGHT Panel Mount LED Indicator | myMectronic
Purchase the DIALIGHT 630-3704-304F Panel Mount LED Indicator securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6303704304F?
You can click on the BUY or RFQ button to purchase 6303704304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6303704304F?
You can download the 6303704304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6303704304F?
DIALIGHT
