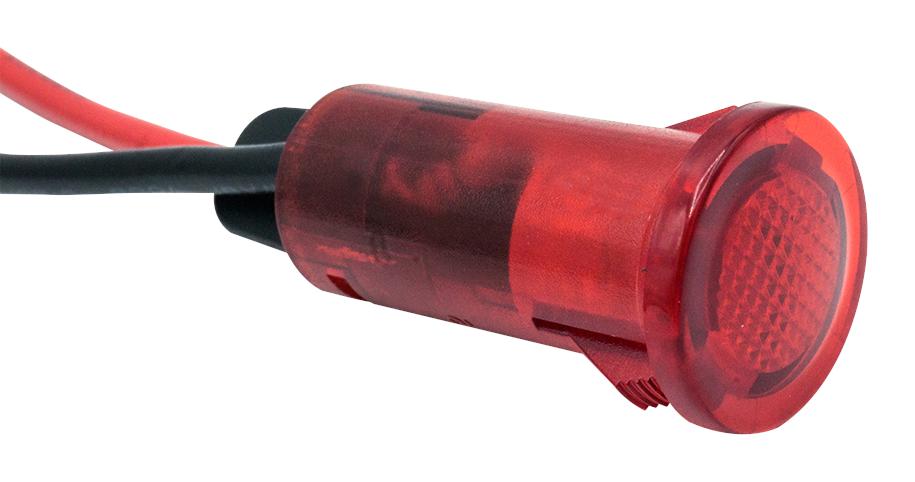

DIALIGHT 6551103103F Panel Mount Indicator
The 655 series from Dialight offers 1/2-inch snap-in panel mount indicators designed for main power, remote power, status, and warning signals across diverse applications. Equipped with voltage options of 12VDC and 24VDC, these indicators operate at 20 mA current and feature multiple intensities from 45 to 140 mCd. They come in flat or domed lens styles, with solder terminals for flat lenses or wire leads for domed lenses. Mounting holes are 0.50 inches, suitable for panel thicknesses up to 0.138 or 0.216 inches respectively, functioning effectively from -20°C to +85°C.
DIALIGHT 6551103103F Panel Mount Indicator Specifications:
- Voltage options: 12VDC, 24VDC
- Operating temp: -20°C to +85°C (-4°F to +185°F)
- Storage temp: -20°C to +85°C (-4°F to +185°F)
- Mounting hole size: 0.50 inches (12.7 mm)
- Max panel thickness: 0.138 inches (3.5 mm) for domed lens; 0.216 inches (5.5 mm) for flat lens
- Electrical connection: Solder terminals (flat lens) or wire leads
- Wire gauge: 18 AWG (flat), 26 AWG (domed)
- Housing material: Polycarbonate
- Terminals material: Brass, nickel plated
- Lens styles: Flat or domed
- Color options: Red, Green, Yellow, Blue
- Intensity: 45 mCd to 140 mCd
- Current: 20 mA
- Dimensions: Mounting hole 0.50 inches, lens diameter approximately 0.50 inches
- Certifications: RoHS compliant
Buy the Dialight Series 655 Power Indicator: 6551103103F
Purchase your Dialight Series 655 panel mount indicator online today to ensure durable, high-quality signaling for power, status, and warning applications. Designed with versatile lens styles and multiple voltage options, these indicators provide reliable performance in industrial settings. With easy snap-in mounting, suitable panel thickness compatibility, and a broad color selection, they are ideal for instrumentation, maintenance, and control panels. Secure your supply of these efficient LED indicators now to improve your project’s visibility and operational safety efficiently.
Order your Dialight Series 655 power indicator today and enhance your panel signaling with reliable, versatile LED indicators suitable for industrial environments.
Frequently Asked Questions
Where can I buy DIALIGHT 6551103103F?
You can click on the BUY or RFQ button to purchase 6551103103F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6551103103F?
You can download the 6551103103F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6551103103F?
DIALIGHT
