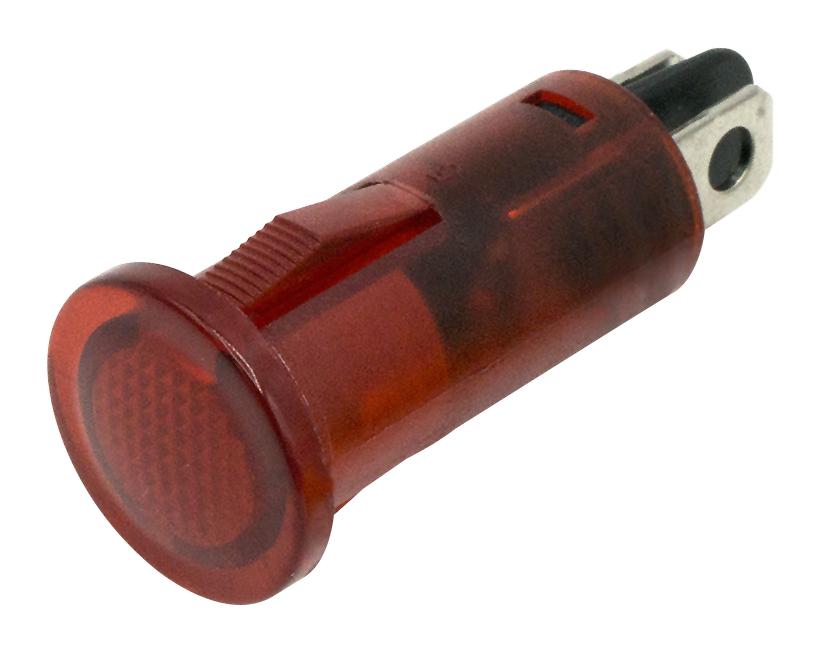

DIALIGHT 6551103104F Panel Mount Indicator
The 655 series from Dialight are 1/2-inch snap-in panel mount indicators designed for a broad range of industrial applications including main and remote power status, instrumentation, maintenance, and warning signals. They operate at 24VDC or 12VDC with a current of 20mA and feature multiple luminous intensities from 45mcd to 140mcd. Available with flat or domed lenses, these indicators have solder terminals or wire leads (18 or 26 AWG). Mounting hole size is 0.50 inches and are suitable for panels up to 0.138 or 0.216 inches thick, working in temperatures from -20°C to +85°C.
DIALIGHT 6551103104F Panel Mount Indicator Specifications:
- Mounting Hole Size: 0.50 inches (12.7 mm)
- Maximum Panel Thickness: 0.138 inches (3.5 mm) for domed lens, 0.216 inches (5.5 mm) for flat lens
- Voltage Options: 12VDC & 24VDC
- Operating Temperature: -20°C to +85°C (-4°F to +185°F)
- Storage Temperature: -20°C to +85°C (-4°F to +185°F)
- Electrical Connection: Solder terminals (Flat Lens), wire leads (flat and domed lenses)
- Wire Gauge: 18 AWG (Flat Lens), 26 AWG (Domed Lens)
- Housing Material: Polycarbonate
- Terminal Material: Brass—Nickel Plated (Flat Lens only)
- Lens Styles: Flat and Domed
- Color Options: Red, Green, Yellow, Blue
- Current: 20mA
- Luminous Intensity: 45mcd to 140mcd depending on model
- Application: Power indication, status lights, instrumentation, maintenance signals
Buy the Dialight 655 Series U+2013 Reliable Panel Mount Indicators for Industrial Applications
Order the Dialight 655 series panel mount indicators online today to ensure reliable, high-visibility status and warning signals for industrial control systems. Designed with durability, ease of installation, and consistent performance in mind, these indicators serve in power, status, and instrumentation applications. Choose from multiple colors, lens styles, and voltage options to meet your specific needs. Shop now to enhance your operational safety and efficiency with high-quality, cost-effective indicators that operate reliably in extreme temperatures.
Get Dialight 655 Series indicators today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy DIALIGHT 6551103104F?
You can click on the BUY or RFQ button to purchase 6551103104F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6551103104F?
You can download the 6551103104F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6551103104F?
DIALIGHT
