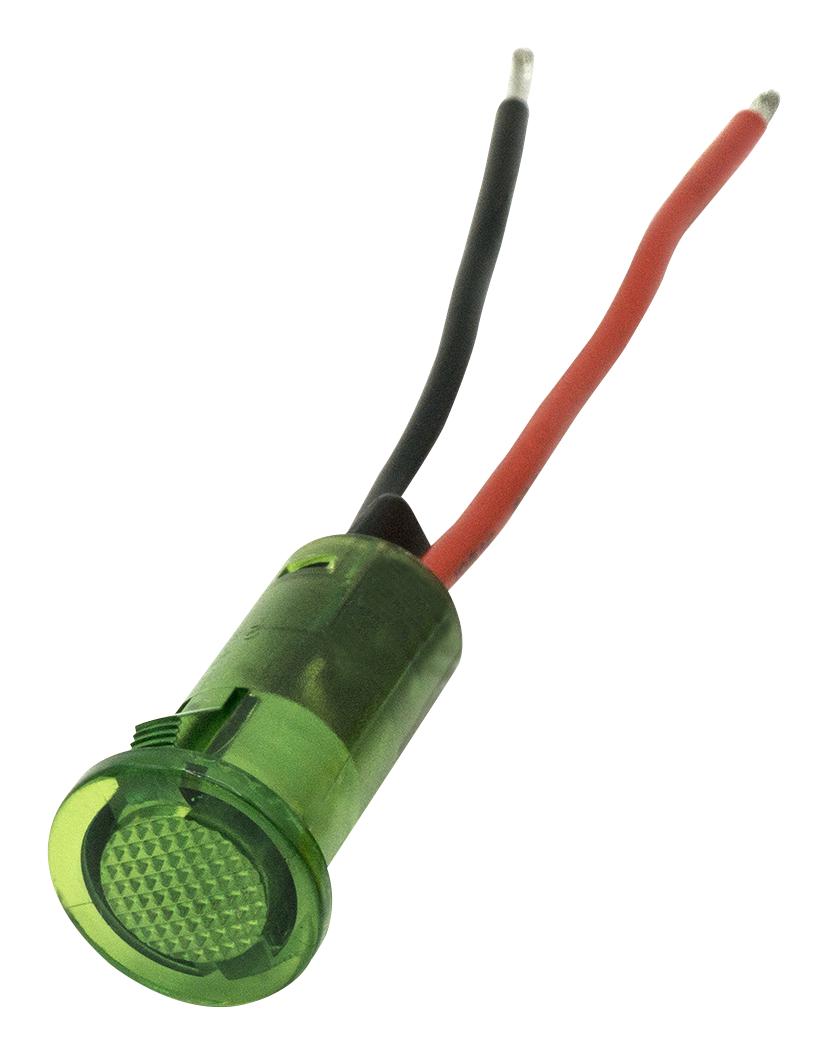

DIALIGHT 6551203103F LED Panel Indicator
The 655 series from Dialight features 1/2-inch snap-in panel mount LED indicators suitable for main and remote power, status, maintenance, and warning signals. Available in flat and domed lenses, these indicators offer voltage options of 12VDC and 24VDC, with current ratings around 70-140mA depending on the model. They include multiple color options such as red, green, yellow, and blue, with wire leads (18 AWG for flat, 26 AWG for domed) and solder terminals (flat). Operating temperature range is -20°C to +85°C, suitable for various panel thicknesses up to 0.216 inches.
DIALIGHT 6551203103F LED Panel Indicator Specifications:
- Lens Style: Flat or Domed
- Voltage Options: 12VDC or 24VDC
- Operating Temp: -20°C to +85°C (-4°F to +185°F)
- Mounting Hole Size: 0.50 inches (12.7 mm)
- Maximum Panel Thickness: 0.138 inches (3.5 mm) for domed, 0.216 inches (5.5 mm) for flat
- Electrical Connection: Solder terminals (flat lens only) or wire leads
- Wire Leads: 18 AWG (flat lens), 26 AWG (domed lens)
- Housing Material: Polycarbonate
- Terminal Material: Brass, Nickel Plated
- Color Options: Red, Green, Yellow, Blue
- Current: ~70-140mA depending on configuration
Buy the Buy Dialight LED Panel Mount Indicator Part Number 6551203103F Online
Purchase the Dialight LED Panel Mount Indicator online today and ensure your projects benefit from high-quality, long-lasting LED signals. Designed for easy installation in panels with snap-in mounting, these indicators are perfect for main power, remote power, status, and warning signals across industrial and instrumentation applications. Available in flat and domed lenses, multiple colors, and voltage options of 12VDC or 24VDC, they operate reliably within -20°C to +85°C temperatures, ensuring durability and performance in diverse environments.
Order your Dialight Series 655 LED Panel Mount Indicator today and enhance your power and status signaling with reliable and easy-to-install indicators.
