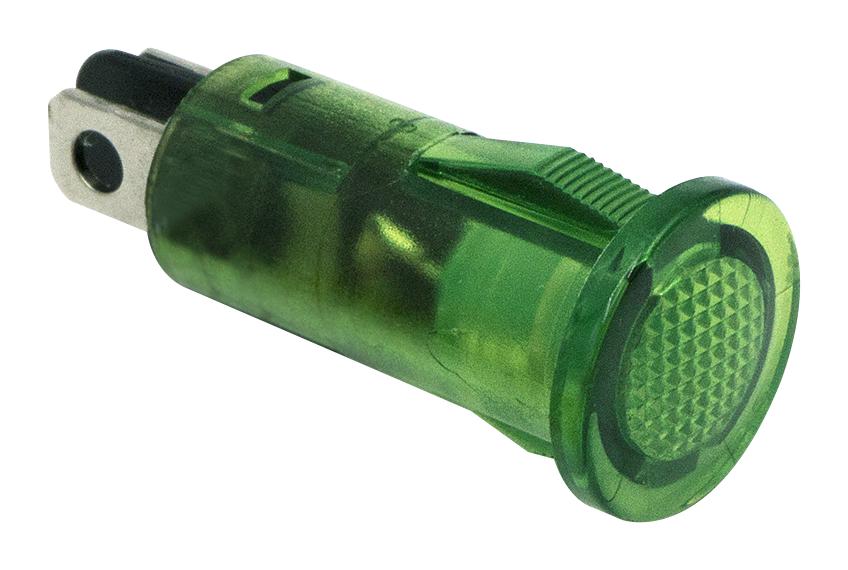

DIALIGHT 6551203104F LED Panel Indicators
The Dialight 655 series are 1/2-inch snap-in panel mount indicators designed for various applications including main power, remote power, status alerts, instrumentation, maintenance, and warnings. They feature options for flat or domed lenses, operating voltages of 12VDC or 24VDC, and brightness levels from 45 to 140 millicandelas. With solder terminals or wire leads, they fit panels with a 0.50-inch hole and are suitable for panel thicknesses up to 0.216 inches for flat lenses. These indicators operate from -20°C to +85°C, ensuring durability in industrial environments.
DIALIGHT 6551203104F LED Panel Indicators Specifications:
- Lens Style: Flat or Domed
- Voltage Options: 12VDC, 24VDC
- Operating Temperature: -20°C to +85°C
- Panel Hole Size: 0.50 inches (12.7mm)
- Maximum Panel Thickness: 0.138 inches (3.5mm) for domed, 0.216 inches (5.5mm) for flat
- Electrical Connection: Solder terminals for flat lens, wire leads
- Wire Gauge: 18 AWG for flat lens, 26 AWG for domed lens
- Housing Material: Polycarbonate
- Contact Material: Brass—Nickel Plated (for flat lens)
- Brightness: 45mcd to 140mcd depending on color and style
- Current: 20mA
- Color: Red, Green, Yellow, Blue
Buy the Dialight 655 PartNumber – Reliable LED Indicators for Industrial Applications
Order Dialight 655 series LED panel indicators online today—designed for versatile industrial applications such as power and status indication. These compact, reliable indicators feature flat or domed lenses, various colors, voltage options of 12VDC and 24VDC, and operate efficiently within a temperature range of -20°C to +85°C. Easy to install with a 0.50-inch hole, they are suitable for panels up to 0.216 inches thick and come with solder terminals or wire leads for flexible electrical connection. Perfect for maintenance, warnings, and instrumentation signals.
Get Dialight 655 series indicators today—built for precise status and warning alerts in demanding industrial environments.
Frequently Asked Questions
Where can I buy DIALIGHT 6551203104F?
You can click on the BUY or RFQ button to purchase 6551203104F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6551203104F?
You can download the 6551203104F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6551203104F?
DIALIGHT
