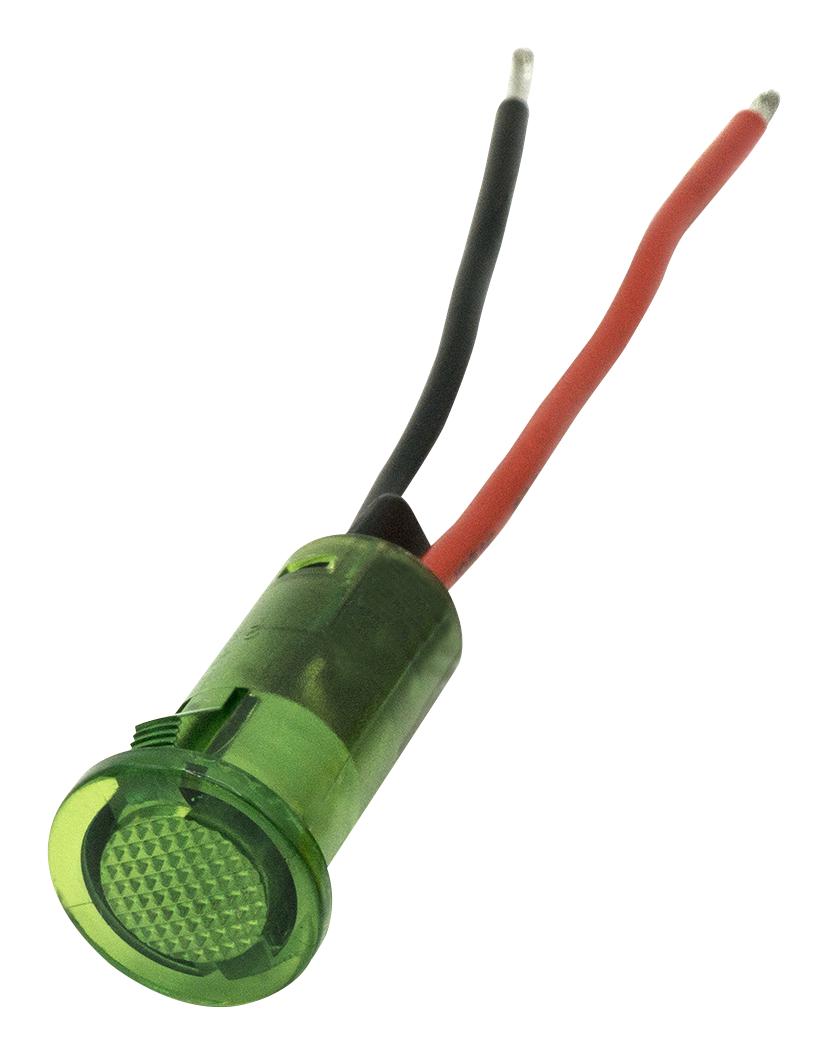

DIALIGHT 6551204103F Industrial Power Indicator Light
The Dialight 655 series features 1/2-inch snap-in panel mount indicator lights ideal for power, status, warning, and instrumentation applications. These LED indicators support 24VDC and 122VDC options, operating at 20mA current with intensity levels from 45mcd to 140mcd. They come with flat or domed lenses, electrical connections via solder terminals or wire leads. Mounting hole size is 0.50 inches (12.7mm), suitable for panel thicknesses up to 0.138 inches or 0.216 inches. Available in various colors, operating from -20°C to +85°C, they are ideal for industrial control and instrumentation systems.
DIALIGHT 6551204103F Industrial Power Indicator Light Specifications:
- Lens Style: Flat or Domed
- Voltage Options: 12VDC & 24VDC
- Current: 20mA
- Intensity: 45mcd to 140mcd
- Mounting Hole Size: 0.50 inches (12.7mm)
- Max Panel Thickness: 0.138 inches (3.5mm) for domed, 0.216 inches (5.5mm) for flat
- Electrical Connection: Solder terminals (flat lens only) or wire leads
- Wire Gauge: 18 AWG (flat), 26 AWG (domed)
- Housing Material: Polycarbonate
- Terminals Material: Brass - Nickel Plated
- Operating Temperature Range: -20°C to +85°C (-4°F to +185°F)
Buy the Dialight Series 655 Power and Status Indicators: 6551204103F
Order the Dialight Series 655 power and status indicator lights online for reliable, high visibility signals in industrial, control, and instrumentation applications. Designed with flat or domed lenses, these LED indicators operate at 24VDC or 122VDC, featuring various color options including red, green, yellow, and blue. They support mounting in panels with a 0.50-inch hole, suitable for panel thicknesses up to 0.216 inches. With operating temperatures from -20°C to +85°C, these indicators ensure long-lasting performance and clear visual signaling in demanding environments.
Get Dialight 6551204103F panel mount indicator today—built for reliability and visibility in industrial environments.
Frequently Asked Questions
Where can I buy DIALIGHT 6551204103F?
You can click on the BUY or RFQ button to purchase 6551204103F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6551204103F?
You can download the 6551204103F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6551204103F?
DIALIGHT
