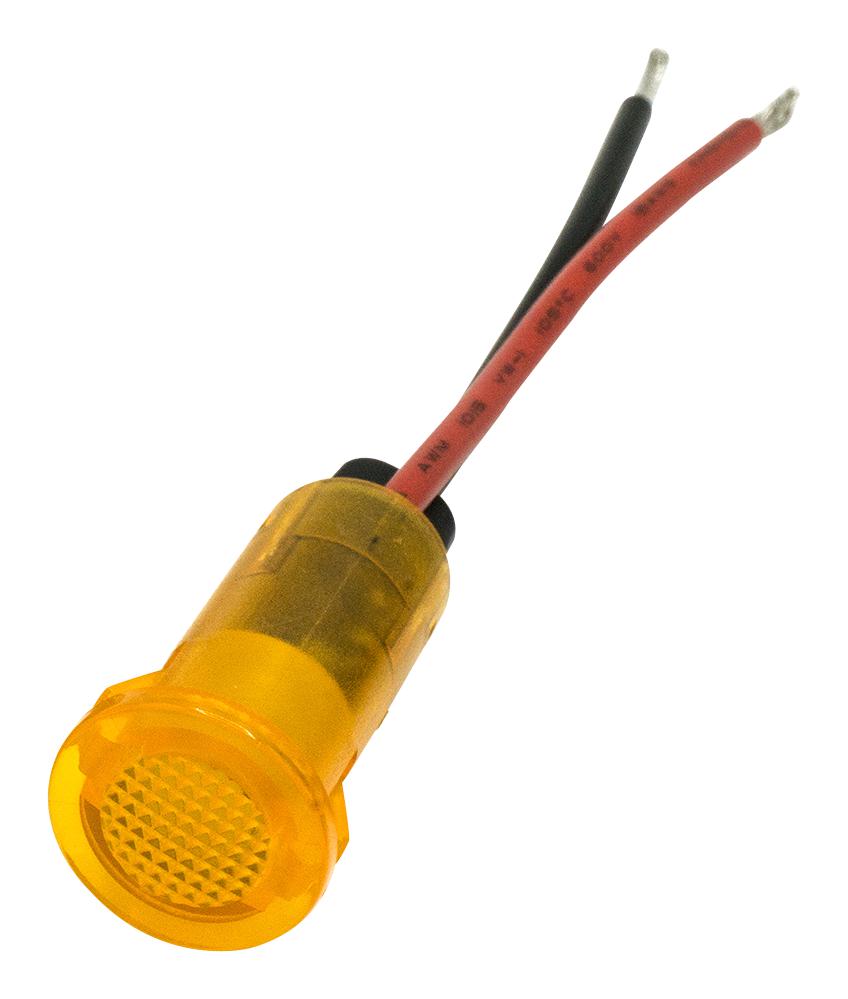

DIALIGHT 6551303103F LED Panel Indicator
The Dialight 655 series are 1/2-inch snap-in panel mount indicators designed for various applications such as main power indication, remote power indication, status monitoring, instrumentation, maintenance, and warnings. Available with voltage options of 12VDC and 24VDC, these indicators operate at 20mA current and offer multiple brightness intensities, including 45mcd, 50mcd, 70mcd, 100mcd, 120mcd, and 140mcd. They come with flat or domed lens styles, with electrical connection options including solder terminals or wire leads. Mounting hole size is 0.50 inches, suitable for panel thicknesses up to 0.138 inches for domed lenses and 0.216 inches for flat lenses. These indicators operate in temperatures from -20°C to +85°C and are available in various colors.
DIALIGHT 6551303103F LED Panel Indicator Specifications:
- Voltage Options: 12VDC & 24VDC
- Operating Temp: -20°C to +85°C
- Storage Temp: -20°C to +85°C
- Housing: Polycarbonate
- Electrical Connections: Solder terminals or wire leads
- Wire Leads: 18 AWG (flat lens), 26 AWG (domed lens)
- Lens Styles: Flat or domed
- Mounting Hole Size: 0.50 inches (12.7mm)
- Max Panel Thickness: 0.138 inches (3.5mm) (domed lens), 0.216 inches (5.5mm) (flat lens)
- Colors: Red, Green, Yellow, Blue
- Brightness: 45mcd, 50mcd, 70mcd, 100mcd, 120mcd, 140mcd
- Current: 20mA
Buy the Dialight 655 Series – Reliable LED Panel Indicators for Industrial Applications
Enhance your control panels with Dialight 655 series LED indicators, designed for durability and clarity in industrial environments. These 1/2-inch snap-in indicators are available in flat or domed lens styles, with voltage options of 12VDC and 24VDC, providing bright illumination at various intensities. Their robust polycarbonate housing, solder or wire connections, and compatibility with panel thicknesses up to 0.216 inches ensure easy installation and long-lasting performance. Perfect for power, status, or warning signals across diverse applications.
Buy Dialight 655 series LED panel indicators now and experience unmatched reliability and performance in your power and status monitoring systems.
Frequently Asked Questions
Where can I buy DIALIGHT 6551303103F?
You can click on the BUY or RFQ button to purchase 6551303103F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6551303103F?
You can download the 6551303103F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6551303103F?
DIALIGHT
