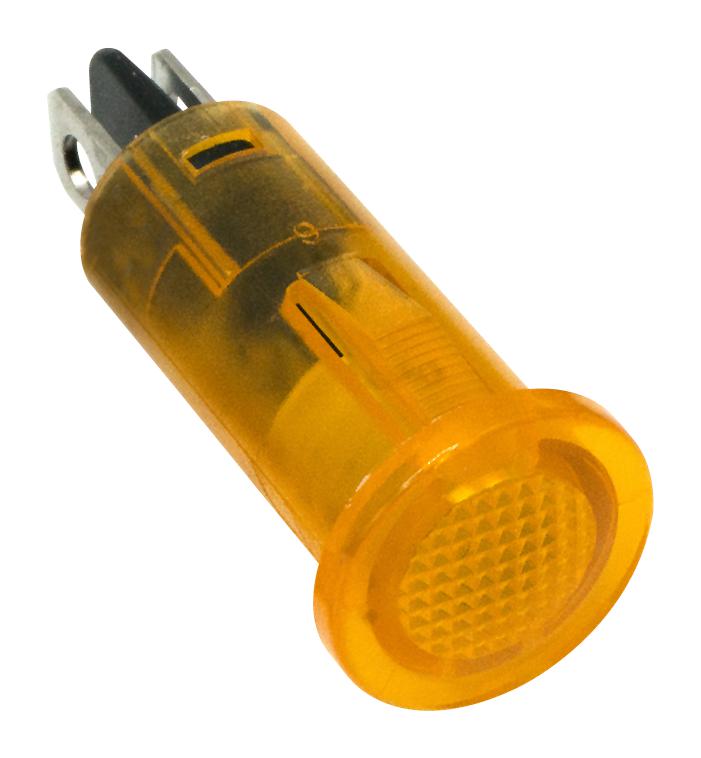

DIALIGHT 6551303104F LED Panel Indicator
The 655 series from Dialight features 1/2-inch snap-in panel mount indicators suitable for main power, remote power, status, instrumentation, and warning applications. Available with flat or domed lenses, these indicators operate at 24VDC or 12VDC with currents up to 120mA, providing high visibility with multiple intensity levels from 45mcd to 140mcd. The series supports solder terminals and wire leads (18 AWG / 26 AWG), fitting panel thicknesses up to 0.216 inches, and functions reliably from -20°C to +85°C, making them ideal for industrial signaling tasks.
DIALIGHT 6551303104F LED Panel Indicator Specifications:
- Lens Style: Flat or Domed
- Voltage Options: 12VDC, 24VDC
- Operating Temp: -20°C to +85°C
- Storage Temp: -20°C to +85°C
- Electrical Connection: Solder terminals or wire leads
- Wire Leads: 18 AWG (Flat Lens), 26 AWG (Domed Lens)
- Mounting Hole Size: 0.50" (12.7mm)
- Max Panel Thickness: 0.138" (3.5mm) for Domed, 0.216" (5.5mm) for Flat
- Housing: Polycarbonate
- Contact Material: Brass—Nickel Plated
- Color options: Red, Green, Yellow, Blue
- Intensity: 45mcd, 50mcd, 70mcd, 100mcd, 120mcd, 140mcd
- External Dimensions: 0.50 inch (12.7mm) diameter
Buy the Dialight Series 655 LED Panel Indicator: 6551303104F
Order the Dialight Series 655 LED Panel Indicator online today to enhance your industrial controls. Featuring snap-in mounting, dual lens styles, and various colors and intensities, these indicators are perfect for power, status, and warning signals. They operate efficiently at 12VDC or 24VDC with current options up to 120mA, suitable for many panel applications. Easy to install with solder terminals or wire leads, they withstand temperatures from -20°C to +85°C. Ensure your equipment signals are clear, durable, and highly visible by purchasing these high-quality indicators online now.
Buy Dialight 6551303104F now and experience reliable illumination for power and status indicators with versatile mounting options.
Frequently Asked Questions
Where can I buy DIALIGHT 6551303104F?
You can click on the BUY or RFQ button to purchase 6551303104F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6551303104F?
You can download the 6551303104F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6551303104F?
DIALIGHT
