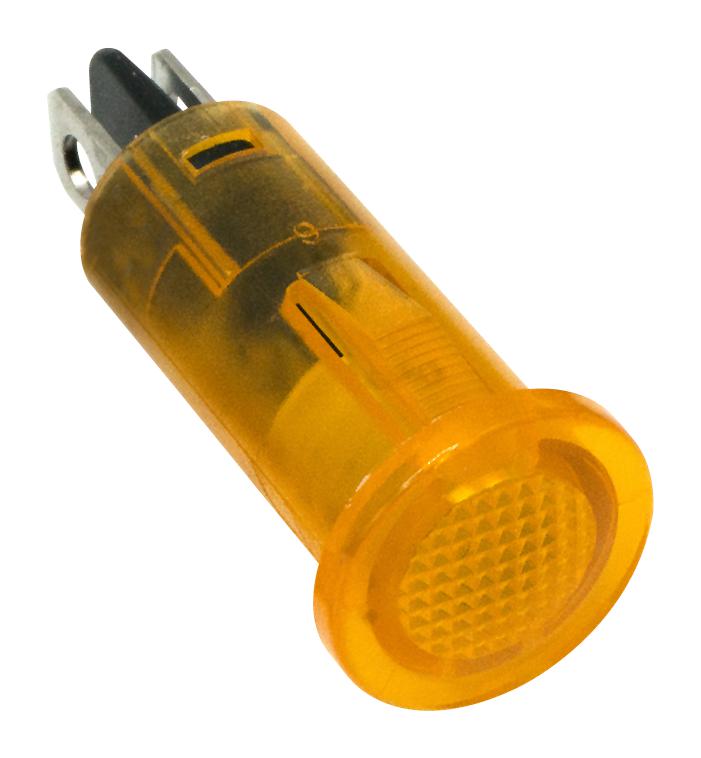

DIALIGHT 6551304104F LED Panel Indicator
The Dialight 655 series comprises 1/2-inch snap-in panel mount indicators ideal for main power, remote power, status, and warning indications. These versatile indicators operate at 24VDC and 12VDC with a typical current of 20mA. Available with flat or domed lenses, they feature varied LED colors such as red, green, yellow, and blue, with intensity levels from 45 to 140 mcd. They include solder terminals or wire leads, support panel thicknesses up to 0.216 inches, and operate reliably within -20°C to +85°C temperature range for industrial and instrumentation applications.
DIALIGHT 6551304104F LED Panel Indicator Specifications:
- Lens Style: Flat or Domed
- Voltage Options: 12VDC, 24VDC
- Current: 20mA typical
- LED Colors: Red, Green, Yellow, Blue
- Luminous Intensity: 45 to 140 mcd
- Mounting Hole Size: 0.50 inches (12.7mm)
- Panel Thickness: Up to 0.138 inches (Domed), 0.216 inches (Flat)
- Electrical Connection: Solder terminals (Flat Lens), Wire leads (26 AWG for domed)
- Operating Temp: -20°C to +85°C
- Storage Temp: -20°C to +85°C
- Material: Polycarbonate housing, Brass nickel-plated terminals
- Wire Lead Diameter: 18 AWG (Flat), 26 AWG (Domed)
Buy the Buy Dialight 655 Series Part Number 6551304104F Online
Experience the convenience of purchasing the Dialight Series 655 LED Panel Mount Indicators online. Designed for power, status, and warning indicators, these indicators offer excellent visibility and reliability. Available in various colors and lens styles, they are perfect for industrial, instrumentation, and maintenance applications. Support panel thicknesses up to 0.216 inches with solder terminals or wire leads. Operating within -20°C to +85°C ensures consistent performance in challenging environments. Order now to upgrade your signaling systems effortlessly.
Order your Dialight Series 655 LED Panel Mount Indicator today and enhance your power and status signaling with durable, reliable LED indicators.
