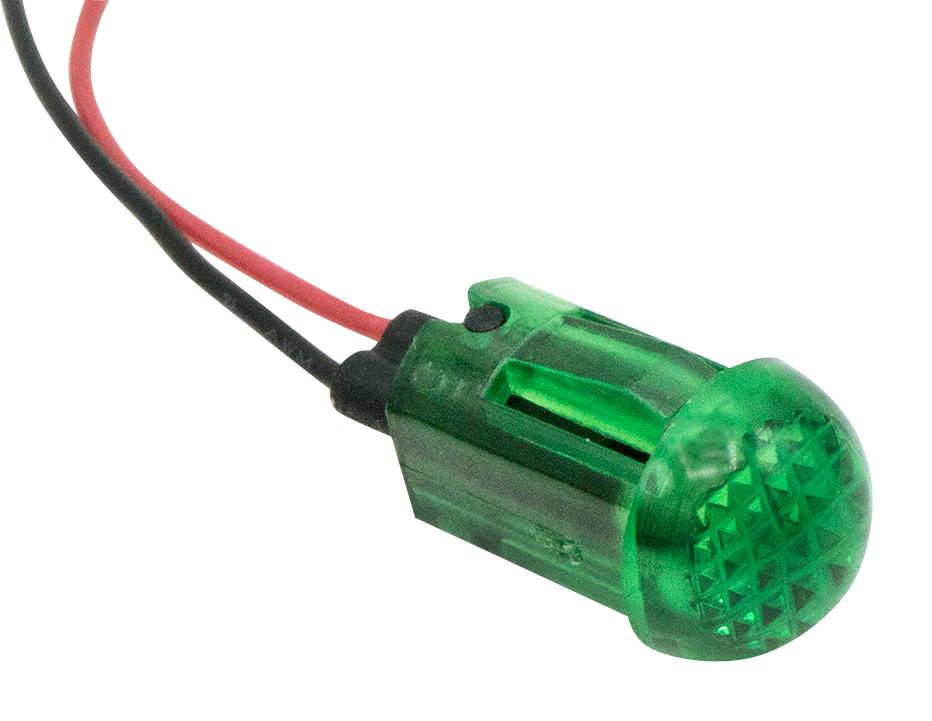

DIALIGHT 6552203103F Panel Mount Indicator
The 655 series from Dialight features 1/2-inch snap-in panel mount indicators ideal for main power, remote power, status, instrumentation, and warning signals. These indicators support voltage options of 24VDC and 12VDC, with current ratings around 20mA. Available in flat and domed lens styles, they come in multiple colors including red, green, yellow, and blue, with intensity ranging from 45mcd to 140mcd. They utilize solder terminals or wire leads for electrical connection, with mounting hole of 0.50 inches (12.7mm) and maximum panel thicknesses of 0.138 inches (domed) and 0.216 inches (flat). Operating temperature spans -20°C to +85°C, suitable for various industrial applications.
DIALIGHT 6552203103F Panel Mount Indicator Specifications:
- Mounting Hole Size: 0.50 inches (12.7mm)
- Max Panel Thickness: 0.138 inches (3.5mm) for domed lens, 0.216 inches (5.5mm) for flat lens
- Voltage Options: 12VDC & 24VDC
- Operating Temperature: -20°C to +85°C (-4°F to +185°F)
- Storage Temperature: -20°C to +85°C (-4°F to +185°F)
- Electrical Connection: Solder terminals (flat lens) or wire leads
- Wire Gauge: 18 AWG (flat lens), 26 AWG (domed lens)
- Housing Material: Polycarbonate
- Terminal Material: Brass—Nickel Plated (flat lens only)
- Lens Style: Flat and domed
- Color Options: Red, Green, Yellow, Blue
- Current Ratings: 45mA to 140mA depending on color and style
- Intensity: 45mcd to 140mcd
- Application: Main power, remote power, status, warning, instrumentation
Buy the Buy Dialight Indicator Part Number 6552203103F Online
Order the Dialight Panel Mount Indicator 6552203103F online today for reliable power, status, and warning signals. Designed with durable polycarbonate housing and available in various colors and lens styles, these indicators are perfect for industrial applications requiring clear visual alerts. With options for solder terminals or wire leads, they support voltages of 12VDC and 24VDC, and operate within a wide temperature range from -20°C to +85°C. Ensure accurate reading and dependable performance in your control panels and instrumentation setups.
Get Dialight 6552203103F today—built for precise power indication and long-lasting durability in industrial environments.
