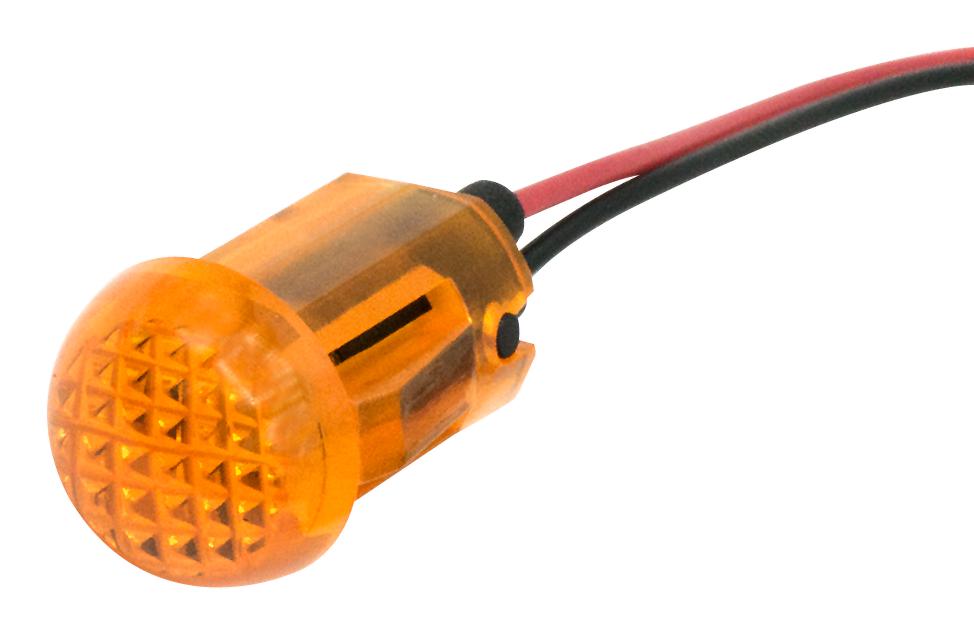

DIALIGHT 6552303103F Panel Indicator
The 655 series from Dialight consists of 1/2-inch snap-in panel mount indicators designed for various applications including main power indication, remote power indication, status signaling, instrumentation, maintenance, and warning alerts. These indicators are available with voltage options of 24VDC and 12VDC, and operate at a current of 20mA. Features include different intensity levels from 45 to 140 millicandelas and options for flat or domed lenses. Electrical connections are via solder terminals for flat lenses or wire leads, with respective wire gauges of 18AWG and 26AWG. Mounting hole diameter is 0.50 inches, supporting panel thicknesses up to 0.138 inches for domed lenses and 0.216 inches for flat lenses. Operating temperature ranges from -20°C to +85°C (-4°F to +185°F). The indicators are available in various colors including red, green, yellow, and blue, suitable for power, status, and warning indications in industrial control and instrumentation environments.
DIALIGHT 6552303103F Panel Indicator Specifications:
- Lens Styles: Flat and Domed
- Housing Material: Polycarbonate
- Mounting Hole Size: 0.50 inches (12.7mm)
- Maximum Panel Thickness: 0.138 inches (3.5mm) for domed, 0.216 inches (5.5mm) for flat lenses
- Voltage Options: 12VDC and 24VDC
- Operating Temp Range: -20°C to +85°C (-4°F to +185°F)
- Electrical Connection: Solder terminals (flat lens) or wire leads
- Wire Gauge: 18 AWG for flat lens, 26 AWG for domed lens
- Current: 20mA
- Intensity: 45mcd to 140mcd depending on color and lens style
- Colors Available: Red, Green, Yellow, Blue
- Certifications: RoHS compliant
Buy the Dialight Series 655 Indicator: 6552303103F
Order the Dialight 655 series panel indicator online today and experience reliable, high-visibility signaling for industrial applications. These indicators are designed for versatile use, with flat or domed lenses, various colors, and voltage options of 12VDC and 24VDC. Easy to install with snap-in mounting and available in multiple intensity levels. Perfect for power, status, and warning signals, ensuring safety and operational efficiency. Built with durable polycarbonate housing and brass nickel-plated terminals, these indicators ensure long-term performance in demanding environments. Purchase now for quality and dependability in your control systems.
Get Dialight 6552303103F today—built for precise industrial signaling and long-lasting durability.
