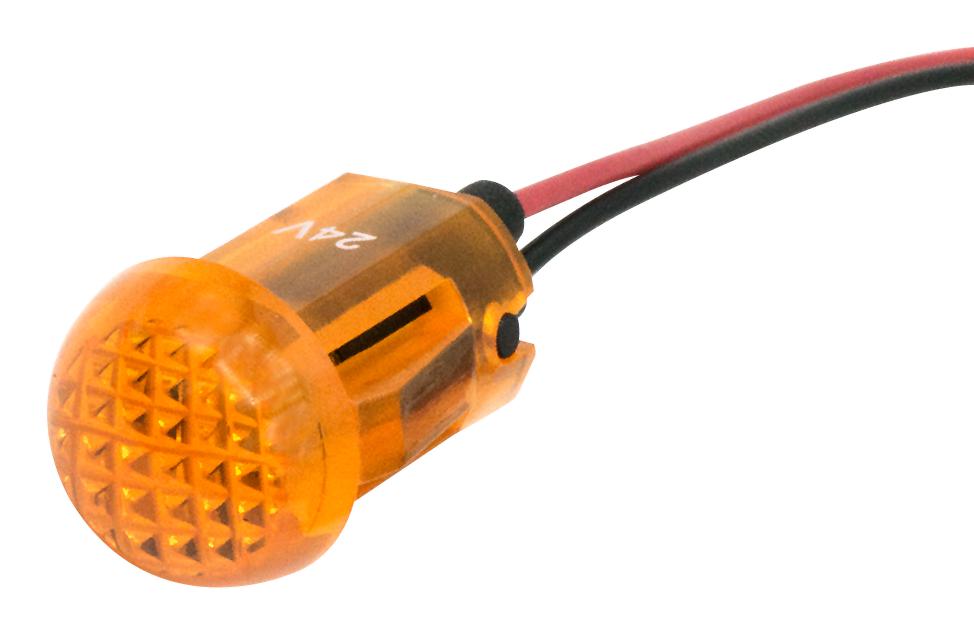

DIALIGHT 6552304103F Panel Mount Indicator
The 655 series from Dialight comprises 1/2-inch snap-in panel mount indicators designed for diverse applications such as main power, remote power, instrumentation, maintenance, and warning signals. Available in voltage options of 12VDC and 24VDC, these indicators feature flat or domed lenses, solder terminals, and wire leads with 18 AWG (flat lens) or 26 AWG (domed lens). They operate within -20°C to +85°C, with mounting hole diameter of 0.50 inches, and support panel thickness up to 0.216 inches. Multiple color options and varied intensities meet broad industrial needs.
DIALIGHT 6552304103F Panel Mount Indicator Specifications:
- Mounting Hole Size: 0.50 inches (12.7 mm)
- Max Panel Thickness: 0.138 inches (3.5 mm) (Domed Lens), 0.216 inches (5.5 mm) (Flat Lens)
- Voltage Options: 12VDC & 24VDC
- Operating Temperature: -20°C to +85°C (-4°F to +185°F)
- Storage Temperature: -20°C to +85°C (-4°F to +185°F)
- Electrical Connection: Solder terminals (Flat Lens only) or wire leads
- Wire Gauge: 18 AWG (Flat Lens), 26 AWG (Domed Lens)
- Housing Material: Polycarbonate
- Terminals Material: Brass, Nickel Plated (Flat Lens only)
- Lens Style: Flat or Domed
- Color Options: Red, Green, Yellow, Blue
- Voltage and Currents: 12VDC or 24VDC, currents up to 140mA
- Intensity Range: 45 to 140 millicandela
- Conducts within -20°C to +85°C temperature range
Buy the Dialight 655 Series – Reliable Indicator for Industrial Applications
Enhance your control panels with Dialight 655 series indicators, offering superior visibility and reliability. Designed for power, instrumentation, and warning signals, these indicators come in various colors, lens styles, and voltages. Easy to install with snap-in mounting and available with solder terminals or wire leads, they operate efficiently in a wide temperature range. Perfect for industrial applications needing clear visual status cues, they ensure operational safety and efficiency. Buy online today to upgrade your system with durable, high-quality visual indicators.
Get Dialight 655 series indicators today—built for precise signaling and long-lasting industrial durability.
