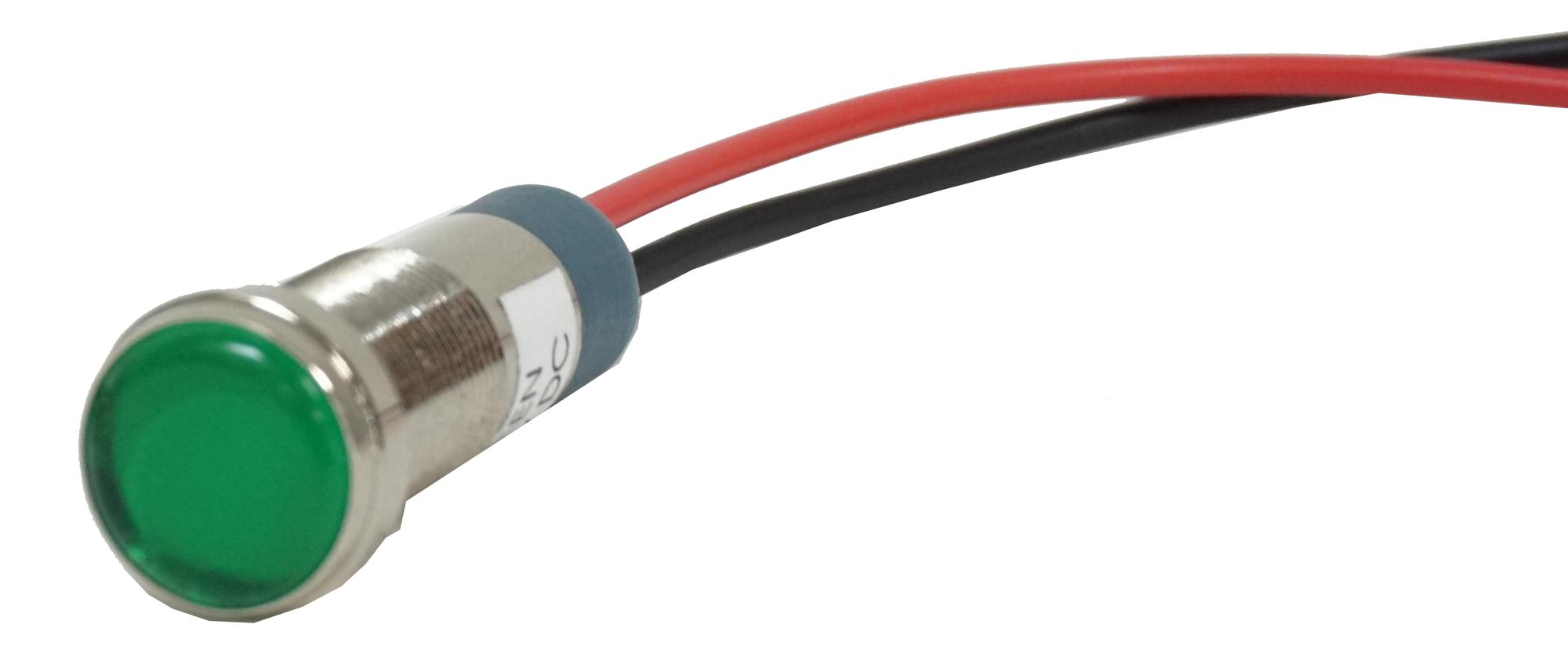

DIALIGHT 6561205303F Panel Mount LED Indicator
The DIALIGHT 656 Series LED Panel Mount Indicators are designed for robust performance in demanding environments. Utilizing InGaN and AllnGap technologies, these indicators provide high-intensity illumination in a range of colors and voltages. They are ideal for instrument panels, safety applications, power generation, and transportation systems. Constructed with nickel-plated brass housing, transparent polycarbonate lens (UL 94V-0), and available with faston connectors or wire leads, the 656 Series offers a durable and versatile solution for visual indication needs. The indicators are RoHS compliant and boast a long lifespan of up to 100,000 hours.
DIALIGHT 6561205303F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 0.5" (12.7mm)
- Max Panel Thickness: 0.600" (15.24 mm)
- Mounting Torque: 40 in-lbs
- Operating Voltage: 12 to 125VDC and 125, 230VAC
- Operating Temp: -30°C to +85°C
- Storage Temp: -40°C to +100°C
- Electrical Connection: 110 Faston Quick connect terminals or 6" wire leads
- Housing Material: Nickel Plated Brass
- Lens Material: Transparent Polycarbonate (UL 94V-0)
- Terminal Material: Tin over Brass
- Wire Lead Material: 18 AWG
- Lock Washer Material: Phosphor Bronze – White Nickel Plated
- Nut Material: Brass – White Nickel Plated
- Certifications: UL1598, NEMA 4x IP66
- LED Code: 1103 (RED, 12VDC)
- Viewing Angle: 50 (Flat), TBD (Domed)
