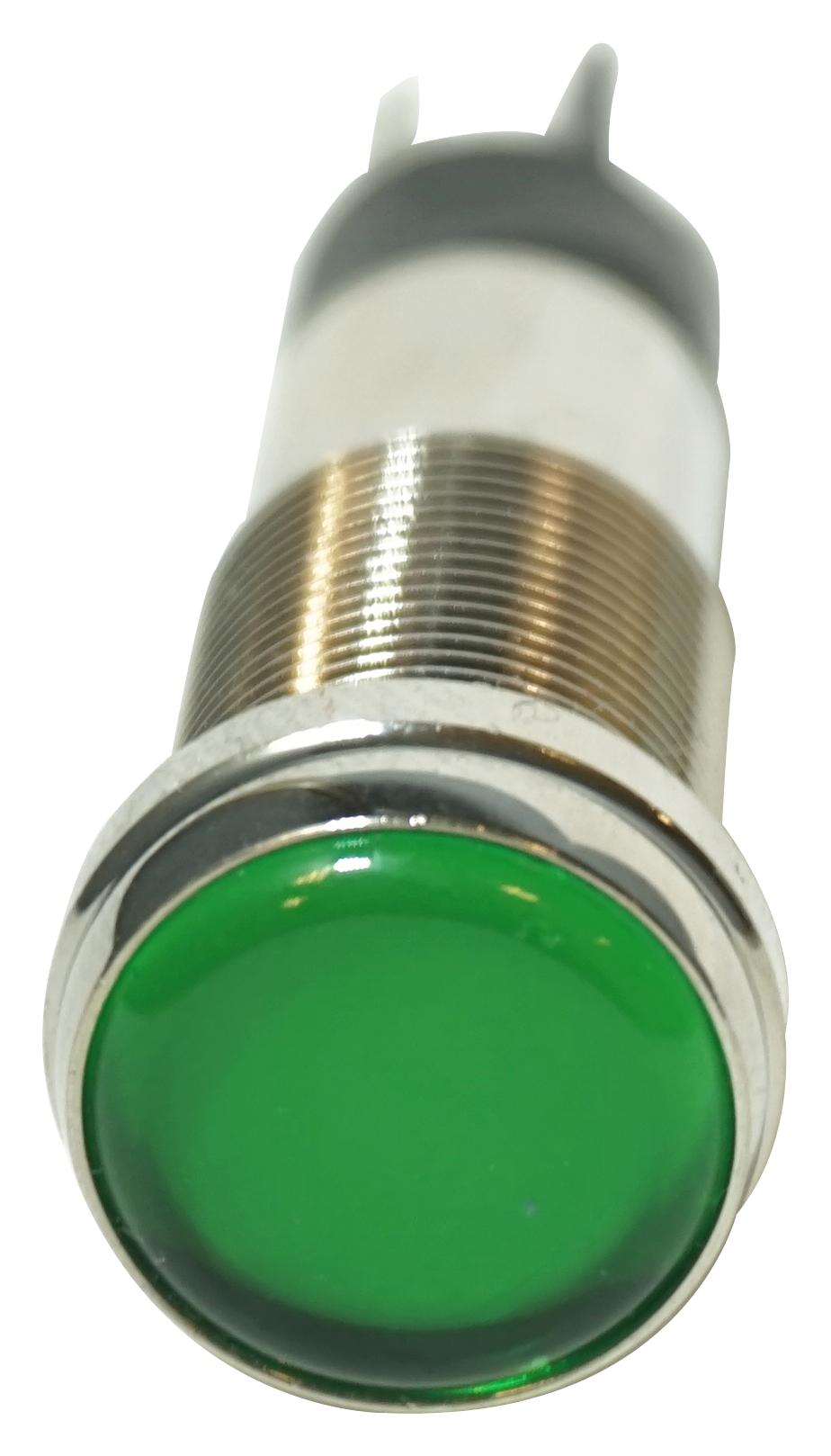

DIALIGHT 6561205304F LED Panel Mount Indicator
The DIALIGHT 656 Series LED Panel Mount Indicators are robust and versatile lighting solutions designed for demanding industrial environments. Utilizing InGaN and AllnGap technologies, these indicators provide exceptional brightness and a full spectrum of colors and voltages. They are suitable for instrument panels, safety applications, UL 508 panel applications, power generation, and transportation systems. Constructed with nickel-plated brass housing, transparent polycarbonate lens (UL 94V-0), and various terminal options, the 656 Series offers long life, tamperproof design, and daylight viewability. Available with 6” wire leads or 110 Faston quick connect terminals, these indicators are a reliable choice for a wide range of applications.
DIALIGHT 6561205304F LED Panel Mount Indicator Specifications:
- Mounting Hole Size: 0.5" (12.7mm)
- Max Panel Thickness: 0.600" (15.24 mm)
- Mounting Torque: 40 in-lbs
- Operating Voltage: 12 to 125VDC and 125, 230VAC
- Operating Temp: -30°C to +85°C
- Storage Temp: -40°C to +100°C
- Electrical Connection: 110 Faston Quick connect terminals or 6” wire leads
- Housing Material: Nickel Plated Brass
- Lens Material: Transparent Polycarbonate (UL 94V-0)
- Terminal Material: Tin over Brass
- Wire Leads Material: 18 AWG
- Lock Washer Material: Phosphor Bronze – White Nickel Plated
- Nut Material: Brass – White Nickel Plated
- Certifications: UL1598, NEMA 4x, IP66
- LED Code: See table for details
- Viewing Angle: 50 (flat), TBD (domed)
