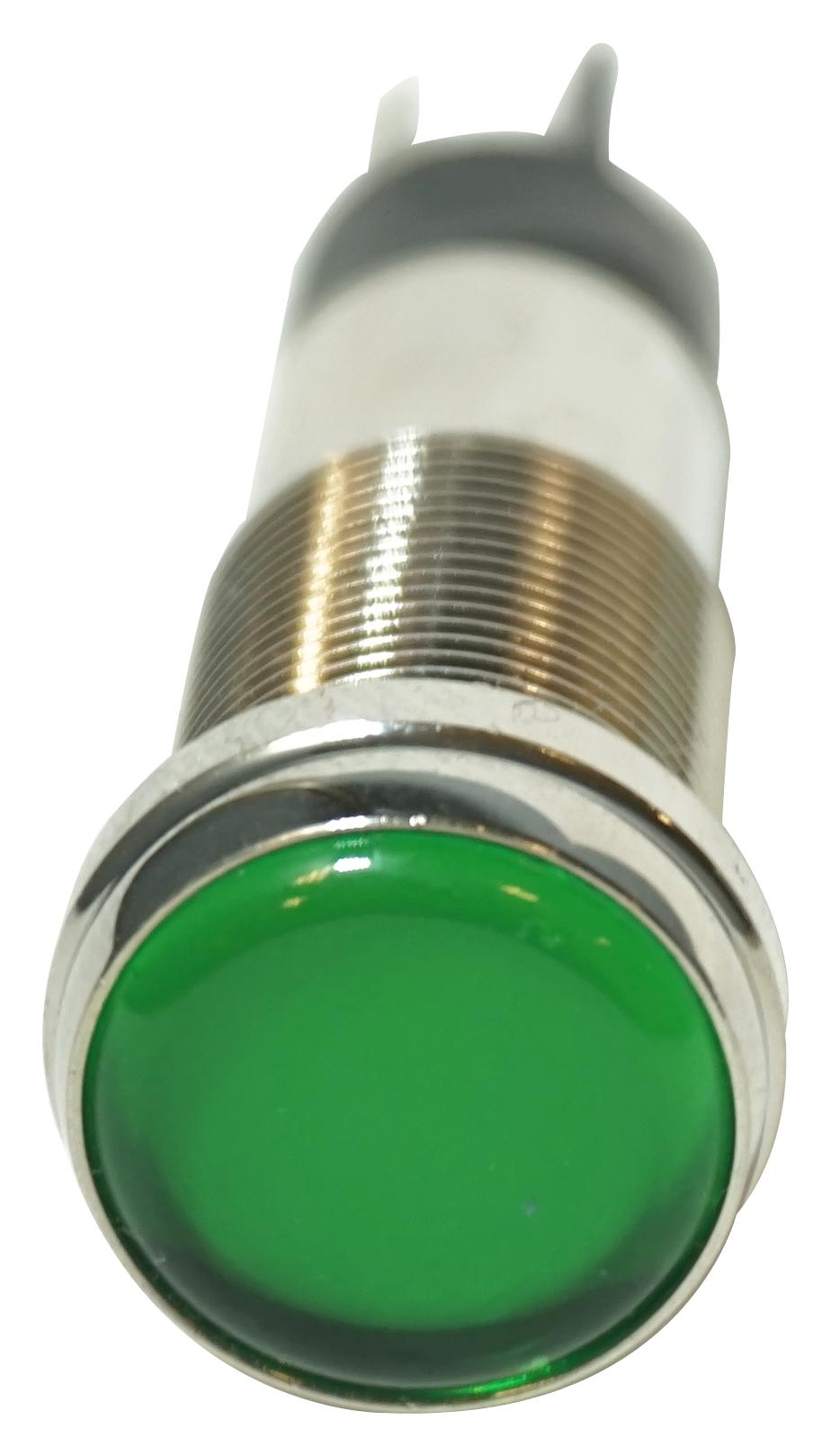

DIALIGHT 6561209304F LED Panel Mount Indicator
The DIALIGHT 656 Series LED Panel Mount Indicators are robust and versatile lighting solutions designed for demanding industrial environments. Utilizing InGaN and AllnGap technologies, these indicators provide exceptional brightness and a full spectrum of colors and voltages. Their durable construction allows them to withstand exposure to rain, dust, and sunlight, making them suitable for instrument panels, safety applications, power generation, and transportation systems. The indicators are available with faston quick connect terminals or wire leads, and are certified to UL1598 and NEMA 4x IP66 standards. With a long operational life of 100,000 hours, these indicators offer reliable performance and reduced maintenance costs.
DIALIGHT 6561209304F LED Panel Mount Indicator Specifications:
- Mounting Hole Size: 0.5" (12.7mm)
- Max Panel Thickness: 0.600" (15.24 mm)
- Mounting Torque: 40 in-lbs
- Operating Voltage: 12 to 125VDC and 125, 230VAC
- Operating Temp: -30°C to +85°C
- Storage Temp: -40°C to +100°C
- Electrical Connection: 110 Faston Quick connect terminals or 6" wire leads
- Housing Material: Nickel Plated Brass
- Lens Material: Transparent Polycarbonate (UL 94V-0)
- Terminal Material: Tin over Brass
- Wire Lead Material: 18 AWG
- Lock Washer Material: Phosphor Bronze – White Nickel Plated
- Nut Material: Brass – White Nickel Plated
- Certifications: UL1598, NEMA 4x IP66
- RoHS Compliant: Yes (w/6C Exemption)
- Typical Life: 100K hours
- Viewing Angle: 50 (flat), TBD (domed)
