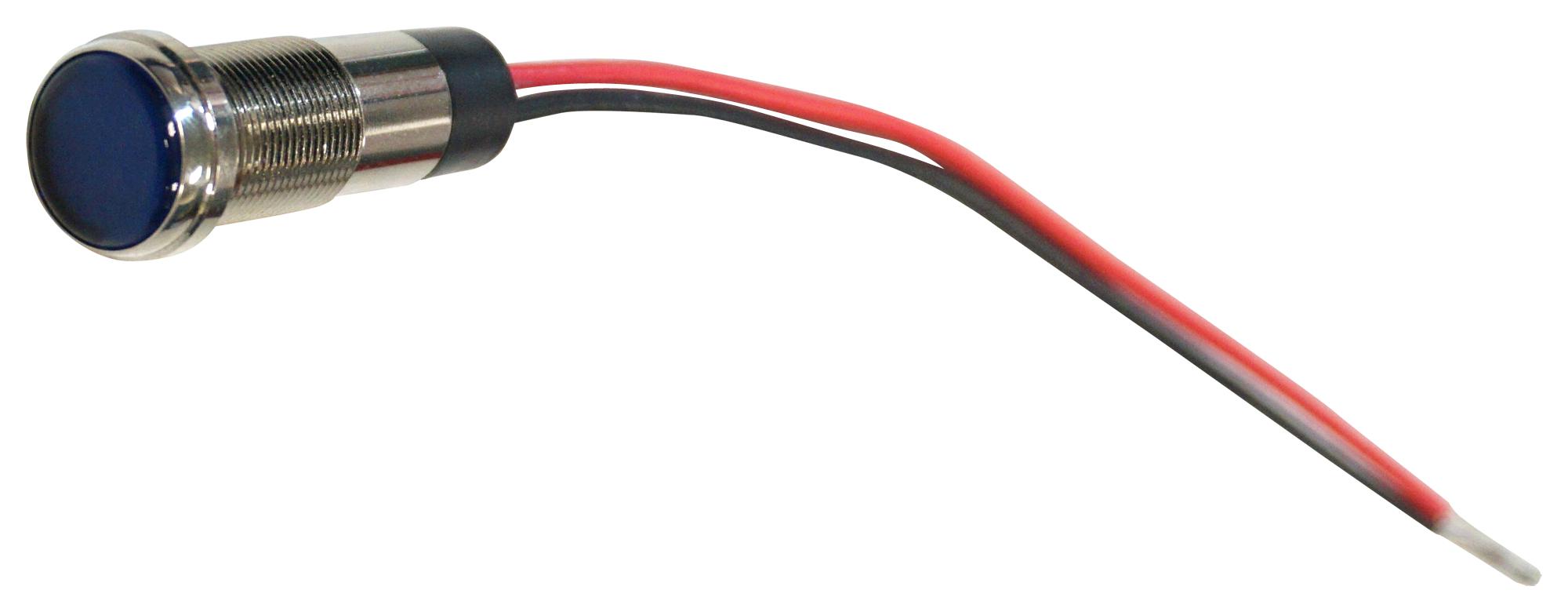

DIALIGHT 6561402303F Panel Mount LED Indicator
The DIALIGHT 656 Series LED Panel Mount Indicators are robust and versatile components designed for a wide range of industrial applications. These indicators are ideal for safety systems, instrument panels, vending and gaming machines, display lighting, and transportation environments. They feature a durable housing, transparent polycarbonate lens, and various termination options including faston terminals and wire leads. The indicators are available in multiple colors and voltage configurations to meet specific application requirements. Their compact size and ease of installation make them a popular choice for both new designs and retrofit applications.
DIALIGHT 6561402303F Panel Mount LED Indicator Specifications:
- Certifications and Ratings: UL1598, NEMA 4X, IP66/67, RoHS compliant
- Application: Safety Applications, Instrument Panels, Vending/Gaming, Display Lighting, Transportation
- Mounting Hole Size: 0.500" (12.7 mm) Max
- Max Panel Thickness: 0.450" (11.43 mm)
- Mounting Torque: 5 in-lbs
- Voltage Options: 5 to 125 V DC and 125, 230 V AC (bi-color 5, 12, 24 V DC)
- Operating Temp: -30 °C to +85 °C (-40 °F to +185 °F)
- Storage Temp: -40 °C to +100 °C (-40 °F to +212 °F)
- Electrical Connection: 110 Faston quick connect terminals or 6" wire leads
- Housing: Brass—White or Black Nickel Plated
- Lens Material: Transparent polycarbonate (UL 94V-0)
- Wire Leads: 18 AWG
- Lock Washer: Bronze—White or Black Nickel Plated
- Nut: Brass—White or Black Nickel Plated
Buy the 656-1402-303F DIALIGHT Panel Mount LED Indicator | myMectronic
Purchase the DIALIGHT 656-1402-303F securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6561402303F?
You can click on the BUY or RFQ button to purchase 6561402303F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6561402303F?
You can download the 6561402303F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6561402303F?
DIALIGHT
