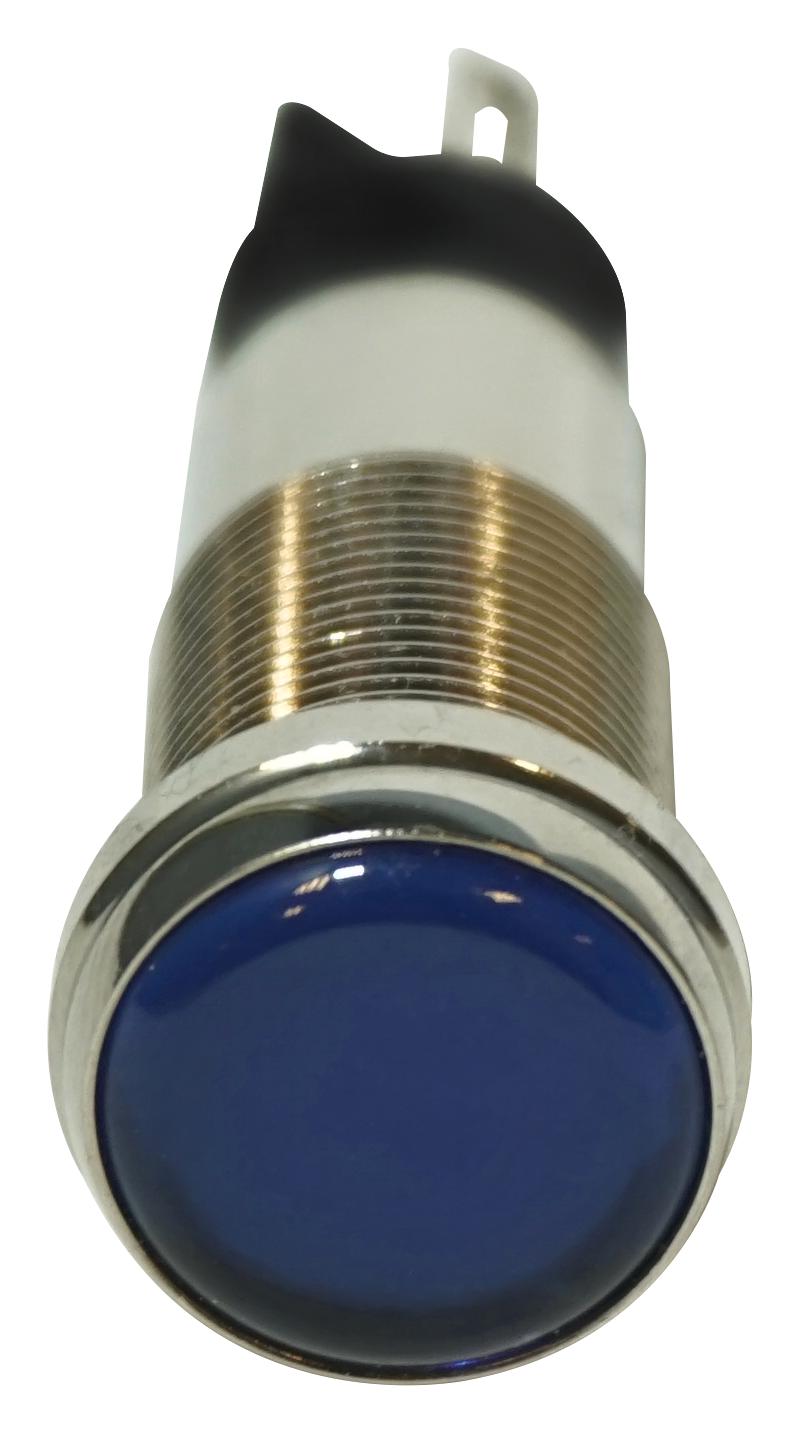

DIALIGHT 6561403304F Panel Mount LED Indicator
The DIALIGHT 656 Series LED Panel Mount Indicators are designed for robust performance in demanding environments. Utilizing InGaN and AllnGap technologies, these indicators provide high-intensity illumination in a range of colors and voltages. They are suitable for instrument panels, safety applications, UL 508 panel applications, power generation, and transportation systems. The housing is nickel-plated brass, the lens is transparent polycarbonate (UL 94V-0), and terminals are tin-plated brass. The indicators are RoHS compliant and offer a long lifespan of typically 100,000 hours.
DIALIGHT 6561403304F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 0.5" (12.7mm)
- Max Panel Thickness: 0.600" (15.24 mm)
- Mounting Torque: 40 in-lbs
- Operating Voltage: 12 to 125VDC and 125, 230VAC
- Operating Temp: -30°C to +85°C
- Storage Temp: -40°C to +100°C
- Electrical Connection: 110 Faston Quick connect terminals or 6" wire leads
- Housing Material: Nickel Plated Brass
- Lens Material: Transparent Polycarbonate (UL 94V-0)
- Terminal Material: Tin over Brass
- Wire Leads: 18 AWG
- Lock Washer Material: Phosphor Bronze – White Nickel Plated
- Nut Material: Brass – White Nickel Plated
- Certifications: UL1598, NEMA 4x, IP66
- LED Code: 1403
- Color: Blue
- Voltage: 12VDC
- Current: 16mA
- Lens Style: Flat
- Viewing Angle: 50
