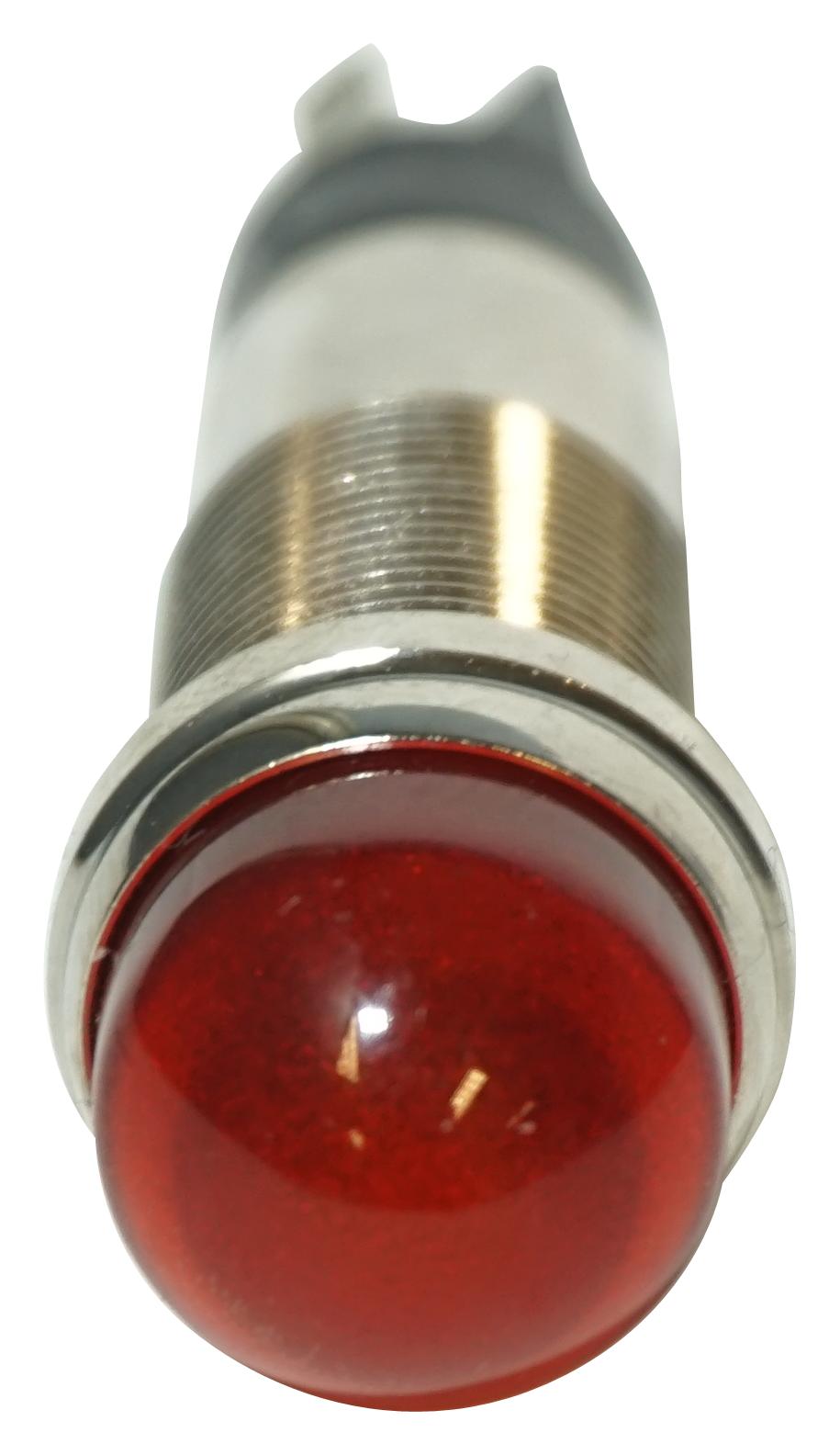

DIALIGHT 6563105304F LED Panel Mount Indicator
The DIALIGHT 656 Series LED Panel Mount Indicators are robust and versatile lighting solutions designed for demanding industrial environments. Utilizing InGaN and AllnGap technologies, these indicators provide exceptional brightness and a full spectrum of colors and voltages. Their durable construction allows them to withstand exposure to rain, dust, and sunlight, making them suitable for instrument panels, safety applications, power generation, and transportation systems. The indicators are available with faston quick connect terminals or wire leads, and are certified to UL1598 and NEMA 4x IP66 standards. They offer a long operational life, tamperproof design, and a wide viewing angle, ensuring reliable performance and visibility.
DIALIGHT 6563105304F LED Panel Mount Indicator Specifications:
- Mounting Hole Size: 0.5" (12.7mm)
- Max Panel Thickness: 0.600" (15.24 mm)
- Mounting Torque: 40 in-lbs
- Operating Voltage: 12 to 125VDC and 125, 230VAC
- Operating Temp: -30°C to +85°C
- Storage Temp: -40°C to +100°C
- Electrical Connection: 110 Faston Quick connect terminals or 6" wire leads
- Housing Material: Nickel Plated Brass
- Lens Material: Transparent Polycarbonate (UL 94V-0)
- Terminal Material: Tin over Brass
- Wire Lead Material: 18 AWG
- Lock Washer Material: Phosphor Bronze – White Nickel Plated
- Nut Material: Brass – White Nickel Plated
- Certifications: UL1598, NEMA 4x IP66
- RoHS Compliant: Yes (w/6C Exemption)
- Typical Life: 100K hours
- Viewing Angle: 50 (flat), TBD (domed)
Buy the 656-3105-304F DIALIGHT LED Panel Mount Indicator | myMectronic
Purchase the DIALIGHT 656-3105-304F LED Panel Mount Indicator securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6563105304F?
You can click on the BUY or RFQ button to purchase 6563105304F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6563105304F?
You can download the 6563105304F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6563105304F?
DIALIGHT
