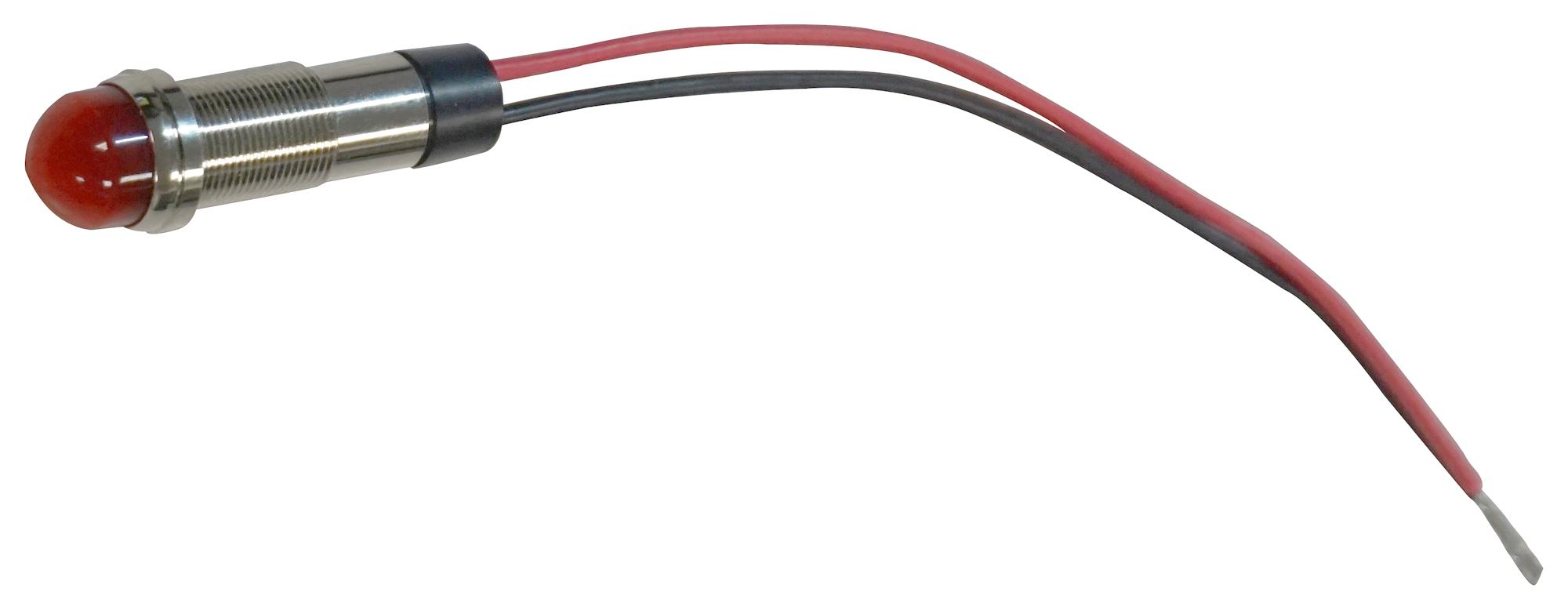

DIALIGHT 6563109303F Panel Mount LED Indicator
The DIALIGHT 656 Series LED Panel Mount Indicators are robust and versatile components designed for demanding industrial environments. Utilizing InGaN and AllnGap technologies, these indicators provide exceptional brightness and color clarity. Suitable for instrument panels, safety applications, and power generation, they are built to withstand rain, dust, and sunlight. The indicators are available with 6” wire leads or 110 Faston quick connect terminals, offering flexibility in installation. Their long lifespan, tamperproof design, and wide range of voltage options make them ideal for diverse applications across industries including transportation and power generation.
DIALIGHT 6563109303F Panel Mount LED Indicator Specifications:
- Mounting Hole Size: 0.5" (12.7mm)
- Max Panel Thickness: 0.600" (15.24 mm)
- Mounting Torque: 40 in-lbs
- Operating Voltage: 12 to 125VDC and 125, 230VAC
- Operating Temp: -30°C to +85°C
- Storage Temp: -40°C to +100°C
- Electrical Connection: 110 Faston Quick connect terminals or 6” wire leads
- Housing Material: Nickel Plated Brass
- Lens Material: Transparent Polycarbonate (UL 94V-0)
- Terminal Material: Tin over Brass
- Wire Lead Material: 18 AWG
- Lock Washer Material: Phosphor Bronze – White Nickel Plated
- Nut Material: Brass – White Nickel Plated
- Certifications: UL1598, NEMA 4x IP66
- RoHS Compliant: Yes (w/6C Exemption)
- Typical Life: 100K hours
- Viewing Angle: 50 (flat), TBD (domed)
Buy the 656-3109-303F DIALIGHT Panel Mount LED Indicator | myMectronic
Purchase the DIALIGHT 656-3109-303F Panel Mount LED Indicator securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy DIALIGHT 6563109303F?
You can click on the BUY or RFQ button to purchase 6563109303F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6563109303F?
You can download the 6563109303F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6563109303F?
DIALIGHT
